Professional SMT Assembly Equipment Wave Soldering Machine For PCB Assembly Line 350

Product Details

Place of Origin: china

Brand Name: PY

Model Number: 350

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: box

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    auto screw tightening machine, epoxy dispensing machine


Name:	Wave Tin Welding Machine	Payment Terms::	TT In Advance
Supply Ability::	10 Sets Per Month	Pot Capacity::	400-500kg
Place Of Origin::	Guangdong, China (Mainland)	PCB Width::	50-350mm

Name:	Wave Tin Welding Machine
Payment Terms::	TT In Advance
Supply Ability::	10 Sets Per Month
Pot Capacity::	400-500kg
Place Of Origin::	Guangdong, China (Mainland)
PCB Width::	50-350mm

Product Description

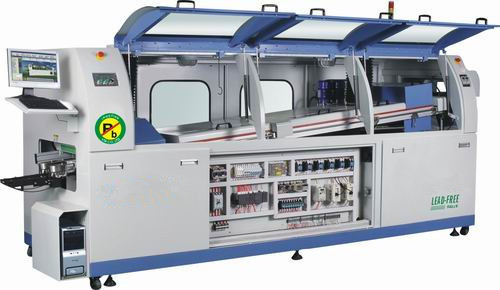

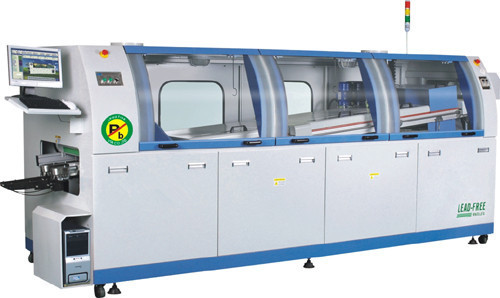

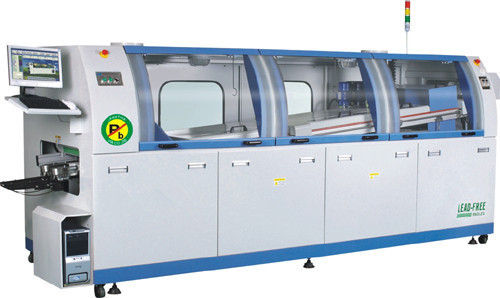

Wave Soldering Machine Wave Tin Welding Machine For PCB Assembly Line350

Product featu Model

l Efficient,energy-saving,lead-free,environment-friendly,safe,and brand-new design,simple operation,convenient maintenance

l Full computer control with windows XP interface,kinetic energy monitoring ,greatly improving the work efficiency and reducing the production cost

l Automatic power system,stepless frequency control,automatic board input system

l Flux spray system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and Plc control ,accurate and reliable

l Preheating system uses 3-stage powerful air system,excellent heat preservation ,temperature warm-up ,temperature uniformity ,no more than ±2 degrees celsius

l Special alloy transportation chain claws , non-stick tin,reinforced, and ensure the quality of welding PCB board

l Tin stove adopts imported high frequency stepless conversion motor independent control,stable performance

l Lead-free solder furnace with independent design ,environment protection and safety , easy to clean

l Tin heating furnace uses high-speed PID and 2-stept independent outer –heating control ,warm-up quickly and eliminates the flaws of stove tin explodes

l With time controller ,can preset switch functions ,tin stove machine heating picks up in 90minutes

l With black box memory function ,can always get at production management records , improve work efficiency

l Reasonable design of environment protection,and automatic washing claw ,ensure the cleanliness of claws

l The design is reasonable and safe with sensitive fault alarm system ,to ensure the stable performance the safety of operators

Model

V-TOP350N
Control method
Computer+PLC
Conveyor motor
1P AC220V 90W
Conveyor speed
300-2000mm/min
PCB size
50-350mm(W)
Conveyor hight(mm)
750±20mm
Preheating Zone Power
12KW Length:(1800mm 3 Sections

PID Contorl)Temperature
15KW (Room temperature-300℃
Solder temperature
420KG
Wave height
Solder pot wam-up time
0-12mm
(Room temperature-250℃)
Wave motor
3P AC220V 0.36KW×2pcs
Finger cleaning pump
1P AC220V 6W
Cooling system
Mandatory cooling
PCB transport dir
L→R(R→L)
Nozzle move motor
Cylinder/Step motor
Flux capacity
6Litres
Air pressure of flux
3-5BAR
Conveyor angle
4-6°
Power supply
3P AC380V 50HZ 63A
Normal/starting power
28KW/8KW
Dimension
3800(L)×1400(W)×1700mm(H)
Appearance size
4500(L)×1400(W)×1700mm(H)
Net weight
1800KG
Exhaust Volume
25m³/min 2Exhausts ∮240mm
Nitrogen system
Standard
Concentration of oxygen
500-1000ppm
Concentration of oxygen
25m³/h
