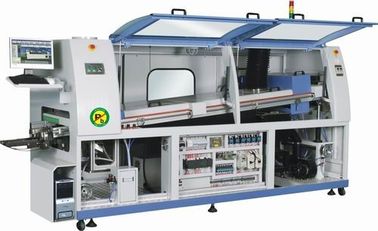

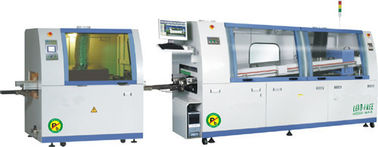

Durable SMT Assembly Equipment Dual Wave Tin Welding Machine For PCB Assembly Line Top

    • Durable SMT Assembly Equipment Dual Wave Tin Welding Machine For PCB Assembly Line Top
    • Durable SMT Assembly Equipment Dual Wave Tin Welding Machine For PCB Assembly Line Top
  • Durable SMT Assembly Equipment Dual Wave Tin Welding Machine For PCB Assembly Line Top

    Product Details:

    Place of Origin: china
    Brand Name: PY
    Certification: CE
    Model Number: 300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: box
    Contact Now
    Detailed Product Description
    Name: Wave Soldering Machine Payment Terms:: L/C, T/T, Western Union
    Supply Ability:: 36 Packaging Details: Export Standard Wooden Package
    Control Method: Computer+PLC Solder Capacity: 1000KG

    1. Totally lead-free design.



    2. Fully computerized controlled;WIN2000;Dynamic monitoring;Functions,station warning,records,fault description and operation guide are vividly illustrated by pictures,words and curves.



    3. Wholly controlled by PLC;MODBUS protocols for connections with computers;Stable working without halt.

    4. With marches into the board organization,the import transportation power unit.



    5. The hydraulic clamshell shape curved glass door linear flow design to facilitate cleaning maintenance.



    6. Guideway manually adjust the width and increasing wind knife design,reduce spray pollution.



    7. Spraying system with,flutes Japan-made high efficient spraying parts;Jepan-made spray nozzle and bar-free cylinder.



    8. Preheat efficient use of far infrared ceramic heating,providing adequate heating capacity,high stability;Tin Front guarantee PCB temperature dropped into the smallest.



    9. Low-oxidation,anti-corrosion without Pb-Sn furnace,the new nozzle design,adjustable flow rate and thickness.



    10. High temperature tin furnace motor imported from Italy;Stepless variable speed;independent controlling.



    11. External casting heating board of the tin furnace with high efficiency.



    12. Acoustic and optical warning and emergency brake system.



    13. Automatic turning on at the time and date programmed by the operator.



    14. Automatic paw washing equipment.



    15.The best economical operation.

    Product featuModel


    V-300C PC
    V-300M Touch
    V-300A Button
    Control method
    PC+PLC
    Computer+PLC
    Touch+PLC
    Touchscreen+PLC
    Button+PLC
    Keys+PLC
    Conveyor motor
    1P AC220V 60W
    Conveyor speed
    300-1500mm/min
    Conveyor speed
    50-300mm(w)
    PID Contorl)Temperature
    Power: 7.5KW Length: 1200mm A section of PID control
    Temperature: (room temperature -250 ℃)
    Preheating Zone Power
    12KW (cast iron heating plate) (room temperature -300 ℃)
    Solder temperature
    280KG
    Wave height
    Solder pot wam-up time
    0-12mm
    Power supply
    3P AC220V 0.18KW×2pcs
    Finger cleaning pump
    1P AC220V 6W
    Cooling system
    Ordinary air-cooled
    Cooling system
    L→R(R→L)
    Flux capacity
    6Litres
    Air pressure of flux
    3-5BAR
    Conveyor angle
    4-6°
    Power supply
    3P AC380V 50HZ
    Normal/starting power
    20KW/5KW
    Dimension
    2600(L)×1200(W)×1650mm(H)
    Appearance size
    3200(L)×1200(W)×1650mm(H)
    Net weight
    900KG

    Durable SMT Assembly Equipment Dual Wave Tin Welding Machine For PCB Assembly Line Top
