No Vibration / Noise 10 Zones Lead Free Reflow Oven With PID Controls

No Vibration / Noise 10 Zones Lead Free Reflow Oven With PID Controls

    • No Vibration / Noise 10 Zones Lead Free Reflow Oven With PID Controls
    • No Vibration / Noise 10 Zones Lead Free Reflow Oven With PID Controls
  • No Vibration / Noise 10 Zones Lead Free Reflow Oven With PID Controls

    Product Details:

    Place of Origin: china
    Brand Name: PY
    Model Number: TOP8820

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: box
    Contact Now
    Detailed Product Description
    NameType:: NitroReflow Soldergen Reflow Oven Model Number:: LED Reflow Oven 10N
    Current:: 60A Application:: SMT Reflow Soldering
    Function:: Reflow Soldering,PCB Reflow Soldering Heating Method:: Forced Hot Air Heating

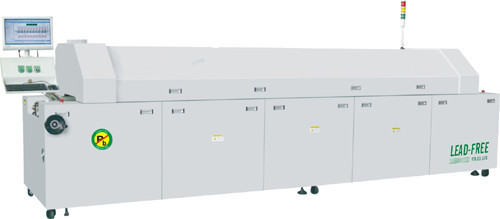

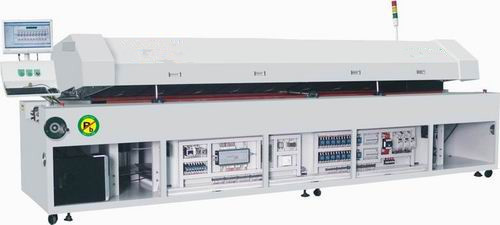

    10 zones lead free reflow oven


    Product features:

    The machine adopts heating method of imported heating board with even temperature and high heat compensation efficency,is especially suitable for sold of BGA CSP components.
    The patent wind wheel design can ensure wind speed wind speed can be adjusted by frequency conversion.
    All temperature zone apply coercive didependent cycles PID controls and up and down heating style,which make the temperature of the oven accurate with large heat capacity.
    The heating is quick,it takes less than 30 minutes ti heat from the normal temperature to the working temperature.
    Power by the imported high temperature high speed motor with high quality,hot wind created is stable with no vibration and noise.
    The upper cover of the oven is raised by electric handspike,safe and credibie.
    The inphase parallel conveyor of chains and mesh which adopts step less speed regulating.
    The track are made of special aluminum alloy with high rigidity accuracy and intensitymauto chain lubrican filling system.
    UPS power off protection function which ensures the normal output of PCB board without damage after the power is off.
    Powerful programming software’s controlling system, It can detect the online temperature of PCB and can analysis,save and type the
    data curves.
    MODBUS protocol is adopted in PC and PLC communication works stably without system halting.
    Automatically monitoring and displaying the working condition of the oven the parameter of the oven can be modified at any moment.
    Special solder design, best temperature saving, lowest power consumption in the same field.
    Compel water cooling quick and even, the speed can be controled by frequency conversion, no temperature rebound which makes
    soldered point smooth and shining.
    The nitrogen flowmeter enable you to know the nitrogen flux anytime.
    Quickly extracting oxygen and charging with nitrogen which can provide high purity nitrogen easily.
    Vertical nitrogen anti leak technology to prevent the leaking of nitrogen.


    Model TOP7720 TOP8820 TOP1020

    Heating part of the parameters Top7/Bottom7 Top8 /Bottom8 Top10/Bottom10
    Heating zone length 2625mm 3000mm 3750mm
    Number of cooling zones Top1/Bottom1
    Transport part of the parameters
    Max Width Of PCB Rail type 300mm mesh belt type 400mm
    Rail Adjustment Range 50-400mm
    Conveyor Direction L→R(R→L)
    Fixation Type Of Rail Front Rail Fixed(Option:Rear Rail Fixed)
    Conveyor Speed Mesh 880±20mm,Chain900±20mm
    Conveyor type Chaim+Mesh
    Conveyor Speed 300-2000mm/Min
    Control part of the parameters
    Power source 3 Phase 5 Wores(380V 50/60Hz)
    Normal power 38Kw 45Kw 58Kw
    Starting power Approx.10Kw Approx.12Kw Approx.15Kw
    Heat-Up Time 20MIN
    Temp range Room Temper ature-350℃
    Temperature Control Full computer (instrument) PID closed-loop control, SSR drive
    Temperature Control LCD PC+PLC
    Temperature Control Accurcy ±1℃
    Temperature Distributing Error PCB ±1-2℃
    Cooling Method Standard:Forced-Air Type(Option:Water-Chiller)
    Board Dropped Alarm Tower Light:Yellow Warming;Green-Normal;Red-Abnormal
    Abnormal Alarm AbnormalTemperature (Extra-high/Extra-Low Temp)
    Body parameters
    Approx Weight Approx.2000Kg Approx.2200Kg Approx.2500Kg
    Dimension(mm)L×W×H L49000×W1400×H1600 L5200×W1400×H1600 L6000×W1400×H1600
    Exhaust Volume 10M3/min 2Exhausts ¢180MM
