SMT Electrical Feeder Calibration Jig For YAMAHA Pick And Place Machine

Name: SMT Electrical Feeder Calibration Jig For YAMAHA Pick And Place Machine
Brand: Ping You Industrial Co.,Ltd
SKU: Feeder Calibration
Price: 250.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YAMAHA

Certification: ISO

Model Number: Feeder Calibration

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Wooden box

Delivery Time: 1-3 days

Supply Ability: long-term supply

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    pick and place feeder, fuji nxt feeder


Model Number:	Smt Feeder Calibration Jigs	Parts Name:	SMT Electric FEEDER Calibration Jigs
Voltage:	220V	Size:	L500W350H500(MM)
Function:	Use For YAMAHA Feeders	Material:	Stainless Steel

Model Number:	Smt Feeder Calibration Jigs
Parts Name:	SMT Electric FEEDER Calibration Jigs
Voltage:	220V
Size:	L500W350H500(MM)
Function:	Use For YAMAHA Feeders
Material:	Stainless Steel

Product Description

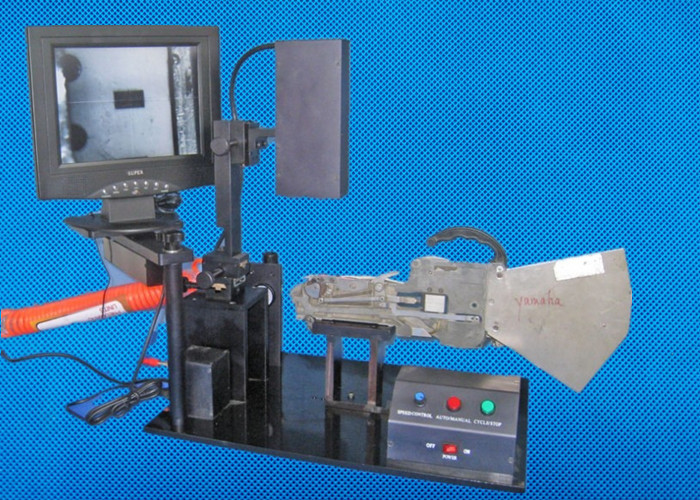

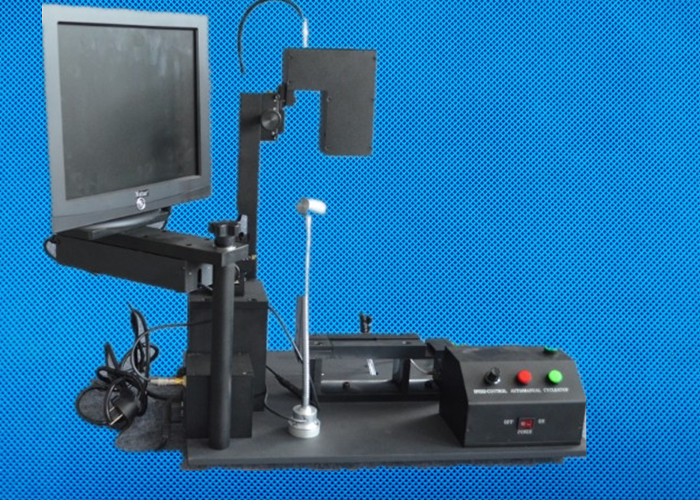

SMT Electric FEEDER calibration jigs for YAMAHA Pick and place machine

product name:YAMAHA YS SMT FEEDER calibration jigs
Dimensions:L500*W350*H500(MM)
Correction mode:electric
Product parameters
Power supply: 220V
The number of feeders:100
Compressed air requirements:5kg/cm2
Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
Product Information
1.The whole structure is streamlined, operating simply, functional optimization. And use the high-precision 0 gap rail, ensure location stability, greatly improve work efficiency.
2.Accurate detection. Reclaimer position, height, bar height, can do accurate measurements.
To better grasp the quality status.
3.Using 12 'color LED display, ring LED lighting ,50 times magnification CCD camera, making
the structure more compact and beautiful. Effectively reducing eye fatigue, improve job quality.
4.Easy to operate, and can simulate the smt machine, automatic continuous observation reclaimer
position clearer grasp FEEDER continuous operation quality, and thus more effective control butt rate.
5.Choose a variety of models such as FUJI,YAMAHA,SAMSUNG,SANYO,SONY,
PANASERT,Universal,FUTURITY,PHILIPS,KME,SIEMENS,JUKI,I-PULSE ,Hitachi ,CASIO etc.
Product Features
Functions and features:
1.The precise x-y axis adjustment;
2.Can directly adjust the camera axis;
3.Built-in 220V DC power supply;
4.Black and white cross reference cursor
5.Automatic and step function;
6.Super bright LED display;
7.Precise feeders control of the jigs;
8.Accurate 8 * 2mm/12 * 4mm/16 * 8mm and 24 * 8mm feeders control belt.
Purpose: FEEDER calibrator used for Correction of various model FEEDER
