Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders
Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders
Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders
Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders
Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders

Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders

Product Details

Place of Origin: Japan

Brand Name: Hitachi

Certification: ISO

Model Number: JG-0209

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Wooden box

Delivery Time: 1-3 days

Supply Ability: long-term supply

Get Best Price

Product Details

Product Description

Ratings & Reviews
Product Details
Highlight:

pick and place feeder

,

fuji nxt feeder

Model Number:
JG-0209
Parts Name:
Feeder Adjustment JIG
Voltage:
220V
Size:
400*500*1100mm
Function:
Hitachi CHIP Mounter Electric Feeders
Material:
Metal
Model Number:
JG-0209
Parts Name:
Feeder Adjustment JIG
Voltage:
220V
Size:
400*500*1100mm
Function:
Hitachi CHIP Mounter Electric Feeders
Material:
Metal
Product Description

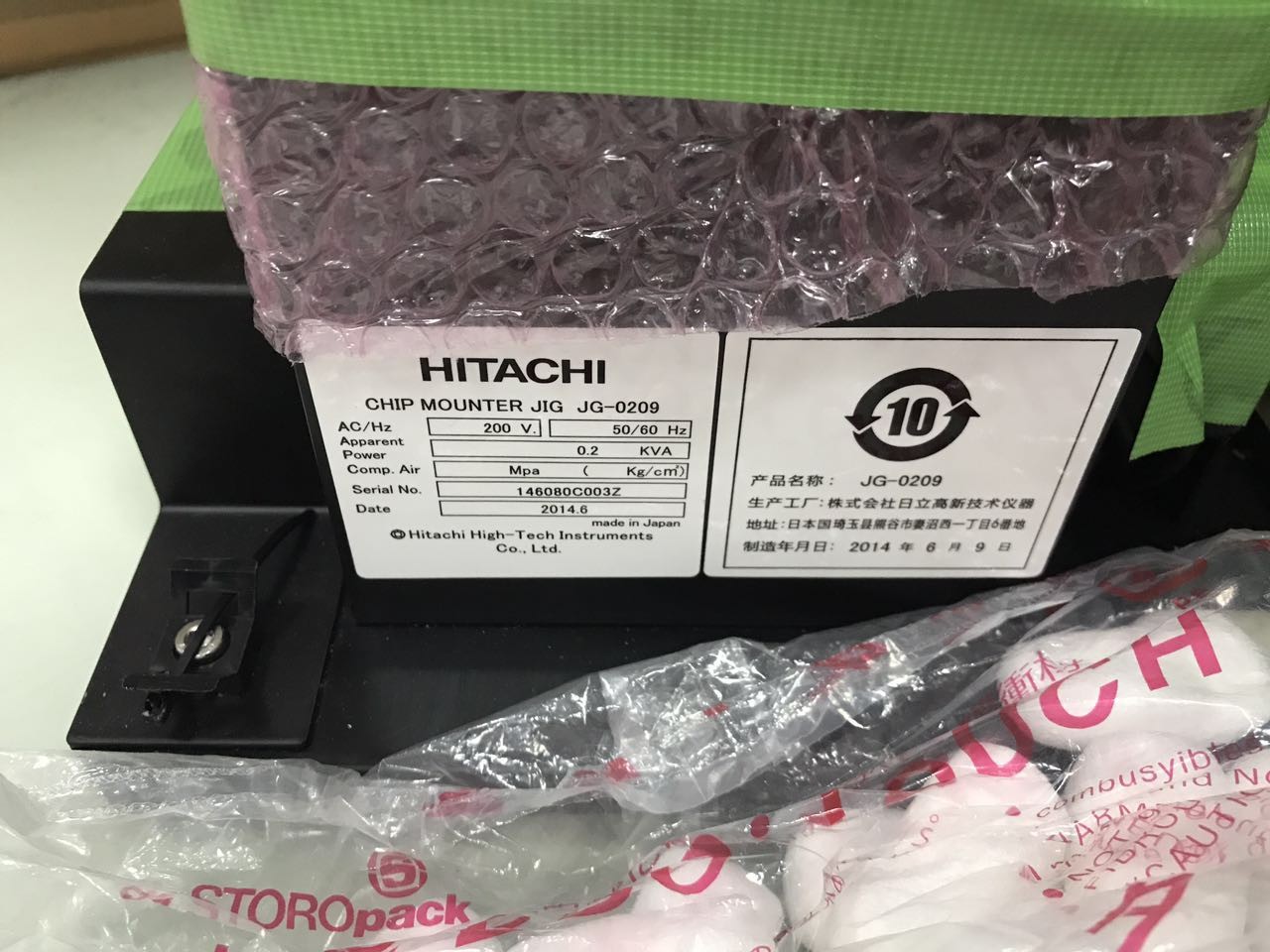

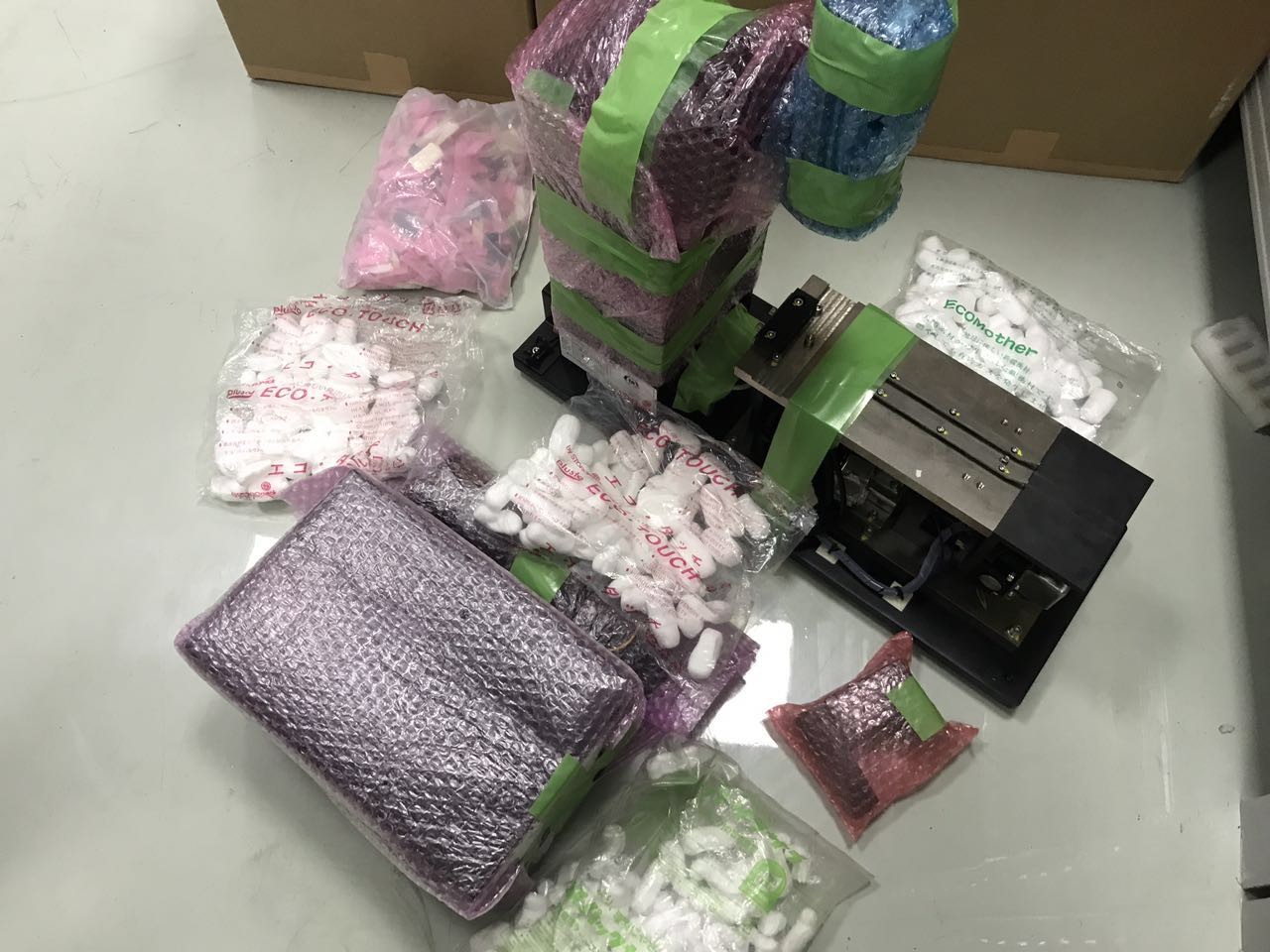

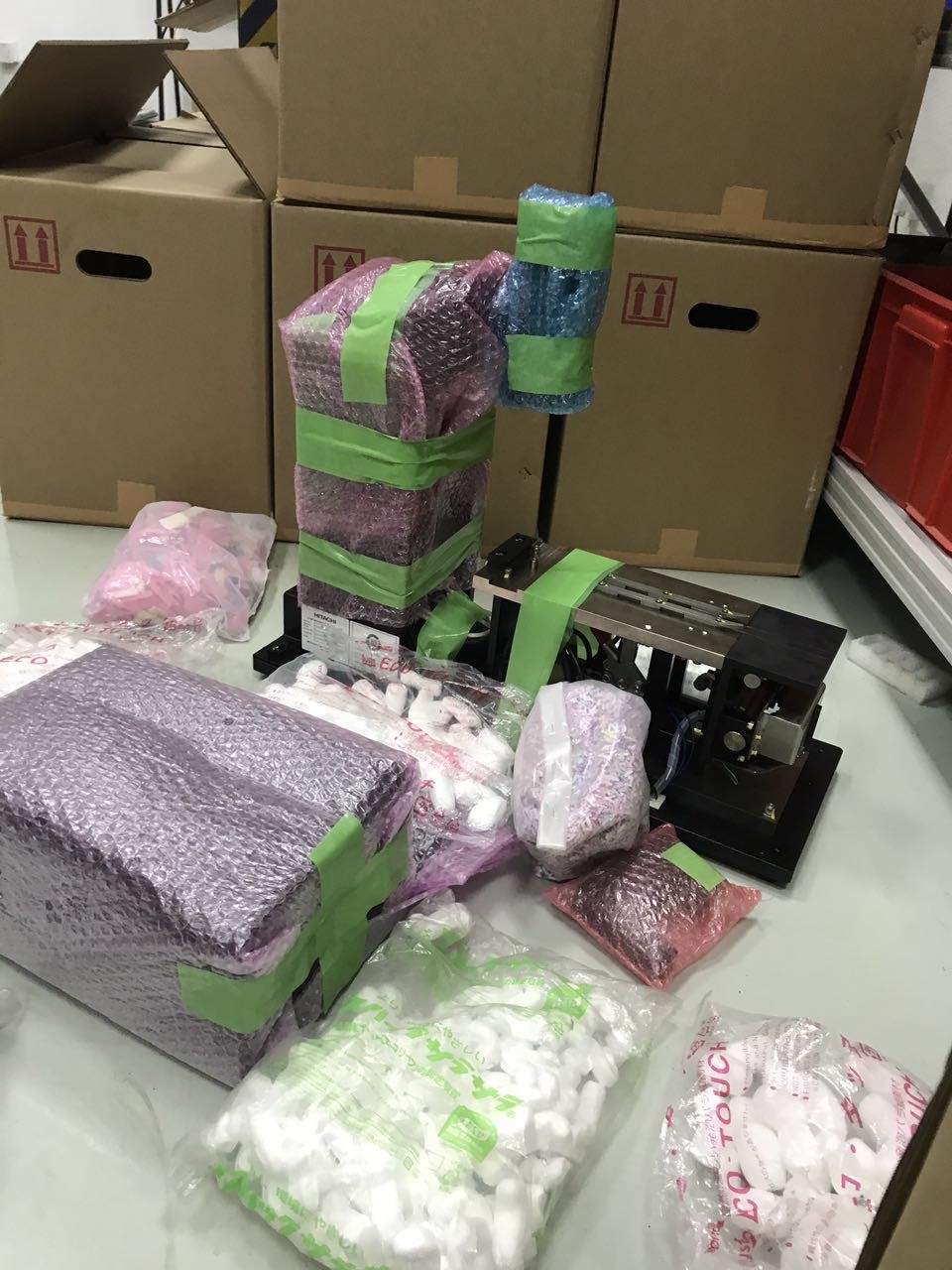

Hitachi CHIP Mounter feeder adjustment JIG JG-0209 for electric feeders



The jig makes it possible to perform the following measurements and write the offset data.

Measurement of Component Pickup Position and Writing of Offset Data for Tape Feeders

Lane Origin Offset (Lanes #1 and #2 for 8mm Tape Feeder)

Offset Data X,Y and Z

Notes: (a) The master tape is required for measurement of the X/Y data

(b)The following apparatuses are required for the measurement of the Z data. These apparatuses are not included in this feeder adjusting jig.

Block Gauge(104MM)

Pry-Type Dial Gauge(0.01MM)

Stand(used for the pry-type dial gauge)

Surface Plate(300 x 300mm or more )

HITACHI SIGMA-G5/G5S/F8/F8S GXH-1/1S/3 machine feeders

8MM GT-38080/GD-38080/GD-38083

8MM GT-28080/GD-28080/GD-28081/GD28083

8MM GT-18080/GD-18080/GT-18081/GD-18081

8MM GT-08080/GD-08080/GT-08081/GD-08081

12/16MM GT-12162/GT-12161/GT-12160

12/16MM GD-12162/GD-12161/GD-12160

24/32MM GT-24322/GT-24321/GT-24320

24/32MM GD-24322/GD-24321/GD-24320

44/56MM GT-44562/GT-44561/GT-44560

44/56MM GD-44562/GD-44561/GD-44560

72MM GT-72002/GD-72002/GT-72001/GT72000

88MM GT-88002/GD-88002

Hitachi CHIP Mounter SMT Feeder Adjustment JIG For Electric Feeders 0
