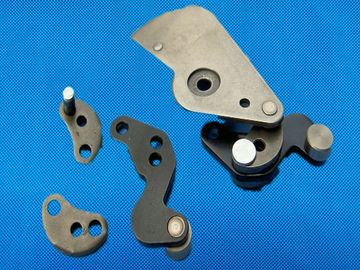

YAMAHA CL SMT Feeder Parts CLAMP LEVER UNIT KW1-M1131-00X
Top foil right Gear wheel assy, 8mm
Part nr.: 9965 000 10263
Alternate Part Number:9498 396 03218
YAMAHA FEEDER 8*4 8*2 PARTS LIST
KW1-M1100-000FEEDER CL84B
KW1-M1400-00XFEEDER CL8X2
KW1-M1500-030FEEDER CL823
K87-M1320-10X CL8X2 SPROCKET
KW1-M1113-0008mm Knock pin(Front/ Rear)
KW1-M111T-00X SCREW
Part NoPart Name
KW1-M111T-00XSCREW,THIN HEAD
K87-M111P-00XSCREW,FLAT HEAD+
K87-M11BF-00XSCREW,FLAT HEAD +IB
K87-M111S-00XSCREW,FLAT HEAD +
KW1-M112A-00X RACKING LEVER ASSY
KW1-M1131-102CL8mm CLAMP LEVER UNIT
KW1-M1140-00X CL8X4 TAPE GUIDE
KW1-M1140-010CL8x4,NEW Tape Guide Unit
KW1-M114A-00X8mm HAND LEVER ASSY
KW1-M114L-000 Cover
KW1-M1150-000 Handle Lever Assy
KW1-M115L-000CL8mm HOLD ARM
KW1-M116D-000 Tension Lever Assy
KW1-M116K-00X LEVER ASSY (CL8mm)
KW1-M1177-00X8mm MAIN ARM
KW1-M1185-00XCL8mm MULTI CYLINDER
KW1-M1191-001 DRIVE ROLLER UNIT
KW1-M1192-00XCL8mm INDENTATION LVR ASSY
KW1-M119F-00XCL8mm DRIVE ROLLER ASSY
KW1-M119L-00X IDLE ROLLER ASSY
KW1-M11A1-011 Lower Guide Plate
KW1-M11D0-200 FEEDER REEL HOLDER ASSY
KW1-M1340-00X CL8X2 TAPE GUIDE
KW1-M1340-010CL8x2,NEW Tape Guide Unit
KW1-M134T-00X LEAF SPRING & SCREW
KW1-M1540-00XCL823 Tape Guide Assy
KW1-M119K-00XCL8mm SPRING
Part NoRemarks
K87-M112D-10X
KW1-M111E-00X
KW1-M111A-00X
KW1-M119K-00X
KW1-M119P-00X
YAMAHA FEEDER12 16mmPARTS LIST
KW1-M2200-300FEEDER CL12mm
KW1-M3200-10XFEEDER CL16mm
K87-M1112-10012/16mm Knock pin
K87-M212L-10X Sprocket Axis Assy (CL12/16)
KW1-M125L-100 HOLD ARM (CL12/16mm)
KW1-M222A-00X Racking Lever Assy (CL12&16)
KW1-M2231-001 Clamp Lever Unit (CL12/16mm
Tape Guide Plate UnitCL12/CL16 Tape Guide Plate
Unit
KW1-M224A-00X HAND LEVER ASSY (CL12mm)
KW1-M224D-00X SUB ARM (CL12mm)
KW1-M2250-000 Handle Lever Assy (CL12mm
KW1-M226D-00X TENSION LEVER ASSY (CL12/16)
KW1-M2277-00X MAIN ARM (CL12mm)
KW1-M2285-00XCL12/16mm) MULTI CYLINDER
KW1-M2291-000 DRIVE ROLLER UNIT (CL12/16)
KW1-M2292-00X INDENTATION LVR ASSY (CL12mm
KW1-M229F-000 DRIVE ROLLER ASSY (CL12mm
KW1-M229L-000 IDLE ROLLER ASSY (CL12mm)
KW1-M324A-000 HAND LEVER ASSY
KW1-M329F-00XCL16mm) DRIVE ROLLER ASSY
KW1-M329L-000 IDLE ROLLER ASSY (CL16mm)
YAMAHA FEEDER 24-72mm PARTS LIST
KW1-M4500-015FEEDER CL24mm
KW1-M5500-010FEEDER CL32mm
KW1-M6500-000FEEDER CL44mm
KW1-M7500-000FEEDER CL56mm
KW1-M8500-000FEEDER CL72mm
K87-M2131-001 Clamp Lever Unit (CL24~72mm)
K87-M2381-000 AIR CYLINDER (CL24~72mm)
KW1-M451D-001 SPRING (CL24~72mm)
Part No (New)Part Name
KW1-M451D-001SPRING
KW1-M459M-000SPRING
KW1-M456C-000SPRING
KW1-M451A-001SPRING
K87-M559A-000 DRIVE GEAR ASSY
K87-M559K-000 INDEX GEAR
KW1-M4512-000 Knock Pin (CL24~72mm)
KW1-M451G-000 LEVER ASSY
KW1-M451H-000 BACK STOPPER (CL24~72mm)
KW1-M4520-000 SPROCKET ASSY (CL24~72mm)
KW1-M452A-000 Racking Lever Assy (CL24~72mm)
KW1-M4540-000 Tape Guide Assy (CL24mm-72mm)
Part NoModel
KW1-M4540-000CL24mm
KW1-M5540-000CL32mm
KW1-M6540-000CL44mm
KW1-M7540-000CL56mm
KW1-M4540-010 Tape guide unit (CL24~56mm)
Part NoModel
KW1-M4540-010CL24mm
KW1-M5540-010CL32mm
KW1-M6540-010CL44mm
KW1-M7540-010CL56mm
KW1-M454A-020 LOCK LEVER ASSY (CL24~72mm)
KW1-M456N-000 Reel Cover Assy (CL24~72mm)
KW1-M4577-000 MAIN ARM (CL24~72mm)
KW1-M458A-001 SET PLATE ASSY (CL24~72mm
KW1-M459L-000 SUB ARM (CL24~72mm)
KW1-M459N-000 ROOL UP Assy (CL24~72mm)
KW1-M459U-000 Reel Plate
ModelPart No
CL24mmKW1-M459U-000
CL32mmKW1-M559U-000
CL44mmKW1-M659U-000
CL56mmKW1-M759U-000
CLY825A15KW1-M12D0-00XREEL HOLDER ASSY
CLY825A15KW1-M12D1-00XREEL PLATE ASSY
CLY825A15K87-M11D7-20XCIRCLIP C
CLY825A15KW1-M12DA-00XTENSION LEVER ASSY
CLY825A15KW1-M12DL-00XSPRING
CLY825A15KW1-M111S-00XSCREW,FLAT HEAD+
CLY825A15K87-M111S-00XSCREW,FLAT HEAD+
CLY823A7K87-M111H-20XBACK STOPPER
CLY823A7K87-M111B-00XBACK STOPPER AXIS
CLY823A7KW1-M111A-00XSPRING
CLY823A7K87-M111G-10XPUSH PIN
CLY823A7K87-M111C-00XPLANE WASHER
CLY823A7K87-M111P-00XSCREW,FLAT HEAD+
CLY823A7K87-M111D-00XPUSH PIN
CLY823A7K87-M112L-10XSPROCKET AXIS ASSY
CLY823A7KW1-M112A-00XRACKING LEVER ASSY
CLY823A7K87-M112D-10XCOIL SPRING
CLY823A7KW1-M111E-00XSPRIGN
CLY823A7K87-M111F-10XSTOPPER PIN
CLY823A7K87-M1181-00XROD CONNECT
CLY823A7K87-M1184-00XCONNECT PIN
CLY823A7KW1-M1185-00XMULTI CYLINDER
CLY823A7KW1-M111L-00XBARB CONNECTOR
CLY823A7K87-M111M-00XGASKET
CLY823A7KW1-M11B1-00XAIR HOSA
CLY823A7K87-M11B9-00XCIRCLIP E
CLY823A7KW1-M11BL-00XBOLT,HEX SOCKET HEAD
CLY823A7KW1-M11BM-00XSPRING LOCK WAHSER
CLY823A7KW1-M114A-00XHAND LEVER ASSY
CLY823A7KW1-M116K-00XLEVER AXIS
CLY823A7KW1-M1177-00XMAIN ARM
CLY823A7K87-M111C-00XPLANE WASHER
CLY823A7K87-M11BF-00XSCREW,FLAT HEAD+IB
CLY823A7KW1-M114N-00XGUIDE AXIS
CLY823A7K87-M111R-00XSCREW,SET
CLY823A7K87-M111T-00XSCREW,SET
CLY823A7K87-M1320-10XSPROCKET ASSY
CLY823A7KW1-M1540-00XTAPE GUIDE ASSY
CLY823A7K87-M1546-00XADJUST PLATE
CLY823A7K87-M1547-00XSCREW,TRUSS HEAD
CLY823A7K87-M1548-00XPLANE WASHER
CLY823A7KW1-M134T-00XLEAF SPRING
CLY823A7K87-M53BS-00XSCREW,PAN HEAD+
CLY823A7KW1-M1110-00XBODY ASSY
CLY823A7KW1-M1112-00XKNOCK PIN
CLY823A7KW1-M1113-00XKNOCK PIN
CLY823A7K87-M1115-00XCIRCULAR RIVET
CLY823A7KW1-M1150-00XHANDLELEVER ASSY
CLY823A7KW1-M116F-00XLEVER AXISPIN
CLY823A7KW1-M115D-00XGUIDE PIN ASSY
CLY823A7KW1-M116D-00XTENSION LEVER ASSY
CLY823A7KW1-M116F-00XLEVER AXIS PIN
CLY823A7K87-M1115-00XCICULAR RIVET
CLY823A7KW1-M1131-00XCLAMP LEVER UNIT
CLY823A7KW1-M1132-00XCLAMP LEVER ASSY
CLY823A7K87-M113A-00XCLANK ARM ASSY
CLY823A7K87-M113D-00XARM
CLY823A7K87-M113E-00XHINGE PIN2
CLY823A7K87-M11D7-00XCIRCLIP E
CLY823A7K87-M113L-10XCLAMP LEVER AXIS
CLY823A7K87-M113M-00XAXIS PIN
CLY823A7K87-M113H-00XPUSH PIN
CLY823A7K87-M111V-00XSCREW,SET
