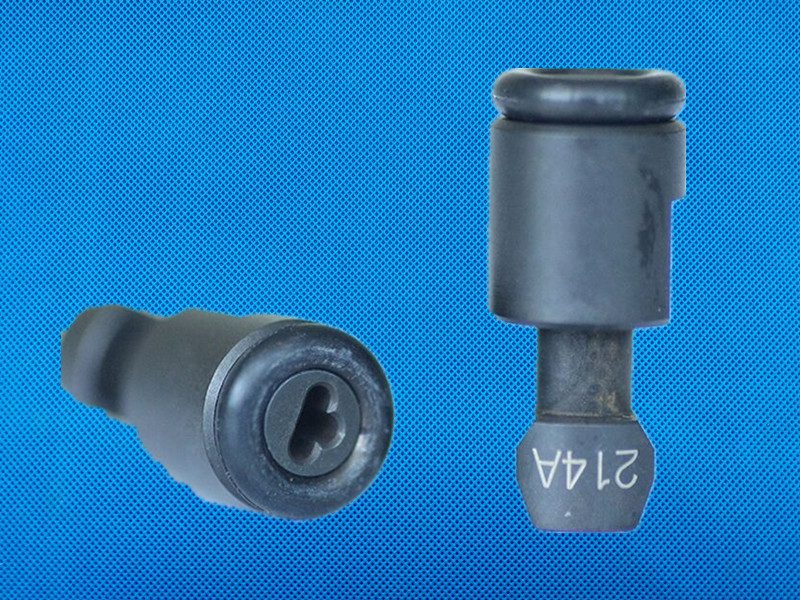

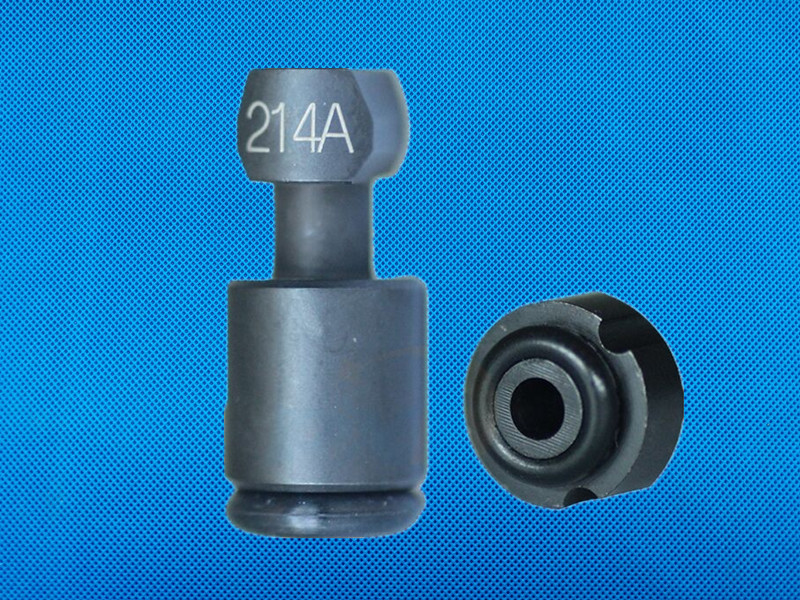

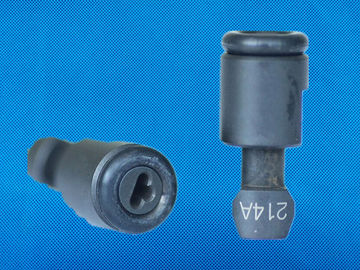

Assembleon 9498 396 00644 SMT Nozzle Assembly 214A For YAMAHA YG100B

Assembleon 9498 396 00644 Smt Nozzle 214A with O-ring for YAMAHA YG100B

KV6-M7113-4XX NOZZLE 1 SHOT 0.4 1 Type114
KV6-M7113-5XX NOZZLE 1 SHOT 0.8 1 Type115
KV6-M7113-6XX NOZZLE 1 SHOT 1.5 1 Type116
KV6-M711A-0XX SHOT 1608(P0.8) NOZZLE 2 SHOT1608(P0.8) 1 Type111
KV6-M711B-0XX NOZZLE 1 SHOT 1.0 1 Type115
KV6-M711C-0XX NOZZLE 1 SHOT 1.3 1 Type116
KU4-M7114-00X YGD

KM0-M711A-02XD YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE '-' (FIXED) (532236010198A) (DIAMOND TIP)
KM0-M711A-02XD YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE 'X' (FIXED) (532236010198B) (DIAMOND TIP)
KM0-M711A-02RD YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE 'O'(FIXED) (532236010433) (DIAMOND TIP)
KM0-M711B-00X YVL88 / YV100 NOZZLE - B (TYPE 32-1) (532236010199)
KM0-M711C-00X YVL88 / YV100 NOZZLE - C (TYPE 32-2) (532236010201)
KM0-M711D-00X YVL88 / YV100 NOZZLE - D (TYPE 33) (532236010202)
KM0-M711E-00X YVL88 / YV100 NOZZLE - E (TYPE 34) (532236010203)
KM0-M711F-00X YVL88 / YV100 NOZZLE - F (TYPE 35) MELF (532236010272)
KM0-M711A-02R YVL88 / YV100 NOZZLE - A (TYPE 39) OD 1.2/ ID 0.6 (ROUND TIP) SPRING LOADED (DIAMOND TIP)
KM0-M711A-302D YVL88 / YV100 NOZZLE - A (TYPE 31) - 'X' SPRING LOADED (1.2 X 0.8 ) (DIAMOND TIP) (532236010425)
KM0-M711A-0807D YVL88 / YV100 NOZZLE - A (TYPE 31) - 'X' SPRING LOADED ( 0.8 X 0.7) (DIAMOND TIP)
YV112 PICK UP NOZZLE (SAPPHIRE / COMET)
Part number Description
KG2-M7191-100 YV112 PICK UP NOZZLE TYPE 1 OD 0.9 /ID 0.5 (532236010335)
KG2-M7191-200 YV112 PICK UP NOZZLE TYPE 2 OD 1.4 / ID 0.8 (532247960083)
KG2-M7191-300 YV112 PICK UP NOZZLE TYPE 3 OD 3.O / ID 2.0 (532247960084)
KG2-M7191-400 YV112 PICK UP NOZZLE TYPE 4 OD 6.0 / ID 4.0 (532236010289)
KG2-M7191-500 YV112 PICK UP NOZZLE TYPE 5 OD 10.0 / ID 8.0(532236010291)
KG2-M7191-600 YV112 PICK UP NOZZLE 9 HOLES (996500007827)
YMH / CSM 66/84 PICK UP NOZZLE
Part number Description
K38-M7113-H00 YMH PICK UP NOZZLE a,OD 1.1X0.7 / ID 0.4 (532247960064)
K38-M7113-B03 YMH PICK UP NOZZLE b, OD 1.8X1.1 / ID 0.8 (532247960075)
K38-M7113-C00 YMH PICK UP NOZZLE c, OD 3.0 / ID 2.0 (532247960059)
K38-M7113-D01 YMH PICK UP NOZZLE d, OD 5.0 / ID 3.5 ** (532247960061)
K38-M7113-E02 YMH PICK UP NOZZLE e, OD 1.1 / ID 0.7 ( V )(532247960062)
YM84 PICK UP NOZZLE
Part number Description
KH-M7113-B00 YM84 PICK UP NOZZLE ID 0.7 (TYPE 2)
KH-M7113-C00 YM84 PICK UP NOZZLE ID 2.0 (TYPE 8)
YM51VMII PICK UP NOZZLE (Machine Type: YM51VMII, 53VTII, 58VAII, 100VPII)
Part number Description
KG9-M7113-100 YM51VMII NOZZLE S, COMP. OD 3.0 /ID 1.0
KG9-M7113-200 YM51VMII NOZZLE M OD 10.0 / ID 7.0
KG9-M7113-300 YM51VMII NOZZLE L OD 15.0 / ID 12.0 **
YAMAHA YM51VM PICK UP NOZZLE (Machine Type: YM51VM, 53VT, 58VA, 100VP)
Part number Description
K94-M7113-10X YM51VM NOZZLE L OD 12.0 / ID 10.0
K94-M7113-20X YM51VM NOZZLE L OD 8.0 / ID 6.0
K94-M7113-30X YM51VM NOZZLE L OD 3.0 / ID 2.1
YAMAHA YV100X/Xg NOZZLE (TOPAZ X/X II)
Part number Description
KV8-M71UX-00XD YV100X NOZZLE TIP - TYPE 7XF (0.8 X 0.7) (DIAMOND TIP)
KV8-M71U1-002D YV100X NOZZLE TIP - TYPE 71F (1.2 X 0.8) 'X' (DIAMOND TIP)
KV8-M71U2-001D YV100X NOZZLE TIP - TYPE 72F (0.92 X 1.75) 'X'(DIAMOND TIP)
KV8-M71U9-A01D YV100X NOZZLE TIP - TYPE 7WF (1.2 / 0.6) (DIAMOND TIP)
KV8-M71NX-A0XD YV100X NOZZLE ASSY - TYPE 7XF (0.8X0.7) (DIAMOND TIP)
KV8-M71N1-A00D YV100X NOZZLE ASSY - TYPE 71F (DIAMOND TIP) (532236010484)
KV8-M71N2-A00D YV100X NOZZLE ASSY - TYPE 72F (DIAMOND TIP) (532236010485)
KV8-M71N3-A00 YV100X NOZZLE ASSY - TYPE 73F (532236010486)
KV8-M71N9-A00 YV100X NOZZLE ASSY - TYPE 79F (1.2/0.6) (DIAMOND TIP)
KV8-M71U6-001 YV100X NOZZLE HOUSING
KV8-M7107-000 YV100X SPRING (MOQ: 10pcs)
KV8-M7105-001 YV100X SCREW (MOQ: 10pcs)
KV8-M7700-A0XD YV100X NOZZLE ASSY - TYPE 7XA (0.8 X 0.7) (DIAMOND TIP)
KV8-M7710-A0XD YV100X NOZZLE ASSY - TYPE 71A (1.2 X 0.8) (DIAMOND TIP) (946602962471)
KV8-M7720-A0XD YV100X NOZZLE ASSY - TYPE 72A (1.7 X 0.94) (DIAMOND TIP) (946602962481)
KV8-M7730-00X YAMAHA 73A ASSY NOZZLE (996500002777) (946602962451)
KV8-M7740-A0X YAMAHA 74A ASSY NOZZLE (532236010495)
KV8-M7760-00X YAMAHA 76A ASSY NOZZLE (MELF) (532236010496)
KV8-M7790-A0XD YAMAHA 79A ASSY NOZZLE (1.2 / 0.6) (DIAMOND TIP)
YAMAHA YV88X/Xg (EMERALD X/X II)
Part number Description
KV8-M7710-A1X NOZZLE 71A ASSY.
KV8-M7720-A1X NOZZLE 72A ASSY.
KV8-M7730-00X NOZZLE 73A
KV8-M7740-A0X NOZZLE 74A
KV8-M7760-00X NOZZLE 76A
KM0-M711A-31X TYPE 31
KM0-M711C-02X TYPE 32
KM0-M711D-00X TYPE 33
KM0-M711E-00X TYPE 34
KG7-M71AB-A0X TYPE 35
KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F A
KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F A
KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
KV7-M87GF-A0X-TD YV88X NOZZLE TIP - TYPE 69F (OD 1.2/ID 0.6) (DIAMOND TIP)
KGA-M71N1-A0-TD YV88X NOZZLE TIP - TYPE 61F (2 HOLE) (DIAMOND TIP)
KGA-M71N2-A0-TD YV88X NOZZLE TIP - TYPE 62F (0.92 X 1.75) 'X' (DIAMOND TIP)
KV7-M87GF-A0X YV88X NOZZLE ASSY- TYPE 69F (OD 1.2/ID 0.6) (DIAMOND TIP)
KGA-M71N1-A0X YV88X NOZZLE ASSY - TYPE 61F (2 HOLE) (DIAMOND TIP) (996500004762)
KGA-M71N2-A0X YV88X NOZZLE ASSY - TYPE 62F(0.92 X 1.75)'X'(DIAMOND TIP) (996500004761)
KV7-M71N3-A1X YV88X NOZZLE ASSY - TYPE 63F (996500004759)
KV7-M71N4-A0X YV88X NOZZLE ASSY - TYPE 64F (965500004758)
KV7-M71N5-AOX YV88X NOZZLE ASSY - TYPE 65F (965500004757)
KGA-M71N-H YV88X NOZZLE HOUSING (FOR TYPE 6F/61F/62F)
KV7-M7700-0807D YV88X NOZZLE ASSY - TYPE 6XA (0.8 X 0.7) 'X' (DIAMOND TIP)
KV7-M77GX-A0XD YV88X NOZZLE ASSY- TYPE 6A (1.2 / 0.6) (DIAMOND TIP)
KV7-M7710-A1XD YV88X NOZZLE ASSY - TYPE 61A (2 HOLE) (DIAMOND TIP) (946602962971)
KV7-M7720-A1XD YV88X NOZZLE ASSY - TYPE 62A (0.92 X 1.75) 'X' (DIAMOND TIP) (946602962981)
KV7-M7730-A1X YV88X NOZZLE ASSY - TYPE 63A (532236010476)
KV7-M7740-A1X YV88X NOZZLE ASSY - TYPE 64A (532236010497)
KV7-M7750-A1X YV88X NOZZLE ASSY - TYPE 65A (532253051374)
KV7-M7760-00X YV88X NOZZLE ASSY - TYPE 66A (MELF) (532236010478)
YG200 PICK UP NOZZLE (MG2)
Part number Description
KGT-M7710-A0XD YG200 NOZZLE 201A ASSY (DIAMOND TIP) (0.8 X 0.7)
KGT-M7720-A0XD YG200 NOZZLE 202A ASSY (DIAMOND TIP) (1.7 X 0.94)
KGT-M7730-A0X YG200 NOZZLE 203A ASSY
KGT-M7760-A0X YG200 NOZZLE 206A ASSY (MELF)
KGT-M7790-A0XD YG200 NOZZLE 209A ASSY (ROUND TIP) (DIAMOND TIP)
KV8-M71N1-A0XD YG200 NOZZLE ASSY - TYPE 71F (DIAMOND TIP)
KV8-M71N2-A0XD YG200 NOZZLE ASSY - TYPE 72F (DIAMOND TIP)
KV8-M71N3-A00 YG200 NOZZLE ASSY - TYPE 73F
KV8-M71N9-A0XD YG200 NOZZLE ASSY- TYPE 79F (1.2 / 0.6) (DIAMOND TIP)
YG100 PICK UP NOZZLE (MG1)
Part number Description
KGS-M7710-A0XD YG100 NOZZLE 211A ASSY (0.8 X 0.7) (949839600641)
KGS-M7720-A0XD YG100 NOZZLE 212A ASSY (1.7 X 0.94) (949839600642)
KGS-M7730-A0XD YG100 NOZZLE 213A ASSY (949839600643)
KGS-M7740-A0X YG100 NOZZLE 214A ASSY (949839600644)
KGS-M7790-A0XD YG100 NOZZLE 219A ASSY (ROUND TIP) (949839600646)
KV8-M71N1-A0XD YV100X NOZZLE ASSY - TYPE 211F (949839600651)
KV8-M71N2-A0XD YV100X NOZZLE ASSY - TYPE 212F (949839600652)
KV8-M71N3-A0X YV100X NOZZLE ASSY - TYPE 213F (949839600653)
KV8-M71N9-A0X YV100X NOZZLE ASSY- TYPE 219F (1.2/0.6) (949839600659)
YV86D / YV100D DISPENSING NOZZLE (CSM)
Part number Description
K37-M7113-20X YV86/YV100D DISP. NZ. 1D/1S (FOR SOLDER PASTE)
K37-M7113-10X YV86/YV100D DISP. NZ. 1D/2S (FOR ADHESIVE)
K37-M7113-00X YV86/YV100D DISP. NZ. 2D/2S (FOR ADHESIVE)
K37-M7113-40X YV86/YV100D DISP. NZ. 2D/2S (FOR 1608 CHIPS)
YV64D DISPENSING NOZZLE (CSM)
Part number Description
KG3-M7113-40X YV64D DISP. NZ. 2D/2S OD 0.7/ ID 0.4 P=0.8
KM4-M7113-10X YV64D DISP. NZ. 2D/2S OD 0.8/ ID 0.5 P=1.0
KM4-M7113-20X YV64D DISP. NZ. 1D/2S OD 0.6/ ID 0.3
KM4-M7113-30X YV64D DISP. NZ. 1D/2S OD 0.8/ ID 0.5
KM4-M7113-40X YV64D DISP. NZ. 1D/2S OD 1.8/ ID 1.5 (SOP/ QFP)
KM4-M7113-50X YV64D DISP. NZ. 1D/2S OD 1.5/ ID 1.0 (SOP/ QFP)
YMH HSD-X DISPENSING NOZZLE
Part number Description
KV6-M7113-1XX HSD DISP. NZ. 2D/2S OD 0.7/ ID 0.4 P=0.9 (TYPE 111)
KV6-M7113-2XX HSD DISP. NZ. 2D/2S OD 0.8/ ID 0.5 P=1.3 (TYPE 112)
KV6-M7113-3XX HSD DISP. NZ. 2D/2S OD 1.3/ ID 0.9 P=1.8 (TYPE 113)
KV6-M7113-4XX HSD DISP. NZ. 1D/1S OD 0.7/ ID 0.4 (TYPE 114)
KV6-M7113-5XX HSD DISP. NZ. 1D/1S OD 0.8/ ID 0.5
KV6-M7113-6XX HSD DISP. NZ. 1D/1S OD 1.5/ ID 1.1
KV6-M711A-XXX HSD DISP. NZ. 2D/2S OD 0.7/ ID 0.4 P=0.8 (TYPE 11A)
KV6-M711B-XXX HSD DISP. NZ. 1D/1S OD 1.5/ ID 1.1 (TYPE 11B)
KV6-M711C-XXX HSD DISP. NZ. 1D/1S OD 1.65/ ID 1.25
