Multi purpose SMT Assembly Equipment Six axis Auto Screw Tightening Machine

Place of Origin china
Brand Name PY
Model Number 3356
Minimum Order Quantity 1
Price Negotiation
Packaging Details BOX
Payment Terms L/C, T/T
Supply Ability 1000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Automatic Screw Tightening Machine Voltage AC 220V 50HZ
Power About 500W Temp -20℃-40℃
Screw Lock Speed 1.5-2.2S/pcs (not Included Load &unload Time) Max Running Speed 500mm/s
High Light

auto screw tightening machine

,

wave soldering machine

Leave a Message
Product Description

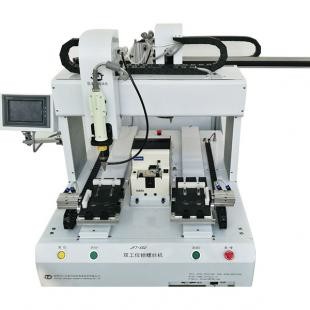

Multi purpose SMT Assembly Equipment Six axis Auto Screw Tightening Machine 0Automatic Screw Machine



6 axis desktop robot Screw Lock Machine with two screwdriver



Fatures:

1, Strong commonality.Small volume, can cooperate with production line operation, convenient replacement products. According to coordinates setting , and also can be read CAD document complete setting .

2, the Z axis can be installed at most four lock electric screwdriver at the same time pay, greatly improve production efficiency.For replacement products, just change coordinates point can be lock .

3, Y axis can according to need to make double location ( double Y axis), the operator can alternate products up and down.

4 L p, suitable screw specification L≥1.2 D (D = screw head diameter, L = length of screw thread) conforms to the condition screw are available this desktop blowing type automatic locking screw machine.



5, this Automatic screw feeding machine available for similar size screw length is + / - 5 mm .



Special design Screw feeding system





Specification
Machine
construction
Machine dimension: 680*650*745mm (according to products size)
XYZ Dimension: X:500mm Y1:300mm Y2:300mm Z:100mm
Voltage: AC 220V 50HZ
Power: About 500W
Temp : -20℃-40℃
Frame: Aluminum alloy high strength structural movement platform
Conveying way: Linear guide module+lead screw+Servo motor driven
Screw feeding way HM3 feeder + tighten gripper+chunk+screwdriver bits
Screw lock speed: 1.5-2.2S/pcs (not included load &unload time)
Max running speed: 500mm/s
Control system Main control program Panasonic PLC
HMI Touch Screen
Program input Teaching input
I/O Signal 8INPUT/8OUTPUTS
Communication serial port RS232C
Program storage 50 group(according to customer request edit program,program free switch)
Posistion
precision
Precision request X,Y,Z:+/-0.05mm
Z:+/-0.02mm;
Screwdriver Screw drvier model HIOS CLF4000
Torque 1-5.5kgf.cm
Screw feeder Feeder model HM3-150 Mechanical blow type feeder
Application
range
XYZ screw range 500*300*300*100mm
Screw lock
products size
280*260mm
Products&fixture size According to customer products size
Detection Screw slip detection Yes
Screw leakage detection Yes
NG Screw tighen detection Alarm light + buzzer on
