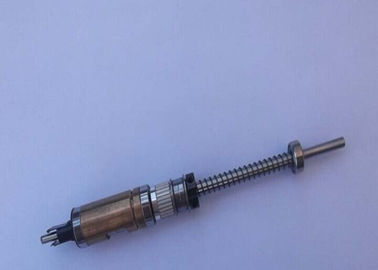

High Accuracy SMT Nozzle SHAFT KGT-M712S-A1X S.T.D. 1 SPARE YG200

Supply YAMAHA Smt chip mounter Spare parts , original new and copy new

KGT-M712S-A1X S.T.D. SHAFT 1, SPARE YG200

KGT-M7106-A0X SHAFT HEAD SUB ASSY

KGT-M7106-D0X

KGT-M7106-01X BALL SPLINE.

KGT-M7107-01X

KGT-M712S-A0X STD SHAFT 1. SPARE

KGT-M712S-A1X STD SHAFT 1. SPARE

KGT-M7106-00X STD SHAFT 1. SPARE

KGT-M7106-01X

KGT-M713S-A0X

M7101-00X HOUSING, HEAD 1
2 90990-22J001 PACKING 3
3 90990-22J003 PACKING 12
4 90990-22J002 PACKING 15
5 KV8-M7103-00X PISTON, PLUG 3
6 90990-22J015 PACKING 3
7 90200-01J125 O-RING 15
8 KV8-M7103-10X PLUG 3
9 KV8-M7104-00X PISTON 6
10 90990-22J006 PACKING 6
11 KGT-M712S-A0X STD. SHAFT 1, SPARE 3 H1, 3, 5
11-1 KGT-M712S-A1X STD. SHAFT 1, SPARE 3 H1, 3, 5 2005.01.27 MB10071
12 KV8-M71RJ-00X COLLAR, BRG 3
13 KG7-M7137-A0X LEAF SPRING 6
14 KG7-M7169-00X SCREW 6
15 90990-28J002 WASHER PLAIN 6
16 KGT-M7106-00X BALL SPLINE 3
16-1 KGT-M7106-01X BALL SPLINE 3 2005.01.27 MB10071
17 KGT-M7107-00X HOLDER, NOZZLE 3
17-1 KGT-M7107-01X HOLDER, NOZZLE 3 2005.01.27 MB10071
18 KV8-M7110-00X COLLAR 2, HEAD 3
19 90933-03J128 BEARING 12
20 KV8-M7106-80X SPACER 6
21 KGT-M7167-00X PULLEY 6
22 KV8-M7154-00X SPG, RETURN 6
23 KV8-M7108-00X NUT 6
24 92A08-03303 SET SCREW M3X3 12
25 90933-02J604 BEARING 6
26 90440-01J030 CIRCLIP 6
27 KU1-M7152-00X WASHER 1 THURUST 6
28 KGT-M711S-A0X FNC SHAFT SPARE 3 H2, 4, 6
29 KV8-M7110-00X COLLAR 2, HEAD 3
30 KV8-M71X2-00X SPG, RETURN 3
31 KV8-M7106-52X BALL SPLINE 3
32 KGT-M71R0-00X NOZZLE, INDEX ASSY 3
33 KV8-M71X1-00X SPG, LOCATE 3
34 KV8-M71R1-XXX SHAFT 1 SEL 3
35 KV8-M71R2-01X BLOCK, STOPPER 3
36 KV7-M71M6-01X SCREW, NOZZLE 6
37 KV8-M71R5-02X PIN, LOCATE 3
38 KV8-M71R6-02X HOLDER, INDEX 3
39 KV8-M71R9-00X CAM 6
40 KGT-M71RA-00X BEVEL-GEAR 1 3
40-1 KGT-M71RA-01X BEVEL-GEAR 1 3 2004.12.02 MAX0126
41 KV8-M71RC-00X PIN, CAM 6
42 90440-10J008 CIRCLIP 12
43 KV8-M71RE-00X WASHER 3
44 99009-12800 CIRCLIP 3
45 KV8-M71RL-00X NUT, LOCK 3
46 KV8-M71RH-00X SEAL, INDEX 3
47 KV8-M71RM-00X SLEEVE 3
48 KV8-M71RB-A0X BEVEL-GEAR 2 ASSY 3
49 KGT-M71R7-00X HOLDER, BRG. 3
50 KV8-M71R8-00X COLLAR, BRG. 3
51 90933-01J801 BEARING 3
52 KGT-M7111-00X PULLY, POST 1
53 KV8-M7115-00X SHAFT 1, TENSION 2
54 KGB-M7116-00X PULLY 2 1
55 92A08-04305 SET SCREW M4X5 3
56 KGT-M7117-00X BLOCK, ADJUST 1
57 KV8-M7119-00X BLOCK, ADJUST 1
58 KGT-M7166-00X PLATE, VALVE 1
59 KGT-M71V1-00X SENSOR STAY F 1
60 KGT-M71VU-00X PLATE, SENSOR 3
61 KGT-M71RX-00X HOLDER, SENSOR 3
62 KV8-M71VR-00X PLATE, NUT 3
63 KGT-M71VD-00X BLACKET, AMP 6
64 KGT-M71VE-00X PLATE, BRACKET AMP 1
64-1 KGT-M71VE-01X PLATE, BRACKET AMP 1 2004.03.24 M430106
65 KGT-M71V3-00X BRACKET, LOCK SENSOR 1
66 KGT-M71V9-01X COVER 1
67 KGB-M71Y1-01X COLLAR 1, PULLEY 1
68 90933-01J800 BEARING 2
69 99009-10800 CIRCLIP (ISTW-10) 1
70 KGT-M71Y9-00X BODY, CYLINDER 1
71 KV8-M71YA-00X VALVE CLUTCH 3
72 91317-05006 BOLT HEX. SOCKET HEAD 6
73 90990-22J005 PACKING 6
74 KM1-M7105-00X PLUG 2 6
75 KGT-M7112-00X STOPPER 1
76 KGT-M7181-00X BELT, HEAD 2
77 90933-03J128 BEARING 4
78 90990-17J007 O-RING 3
79 91317-03055 BOLT HEX. SOCKET HEAD 3
80 90115-02J008 BOLT HEX. SOCKET HEAD 12
81 $KM-05 MUFFLER 7
82 $SLH8-01 JOINT 2
83 $TSH6-01 JOINT 2
84 90990-22J001 PACKING 18
85 KGT-M7162-00X SOLENOID VALVE 1
86 KGT-M7163-00X EJECTER, RESIN 1
87 KGB-M7170-00X GEAR 1 1
88 KGT-M7171-00X GEAR 2 1
89 KGB-M7172-00X COLLAR 1, GEAR 1
90 KGB-M7173-00X COLLAR 2, GEAR 1
91 KGB-M7174-00X SHAFT, GEAR 1
92 90933-02J085 BEARING 2
93 KGT-M7179-00X COVER, GEAR 1 R
94 KGT-M7179-10X COVER, GEAR 1 L
95 KGB-M7185-00X PLATE 2, NUT 1
96 KGB-M7184-00X BOLT HEXA. S. H 6
97 KGT-M7183-00X PLATE, EJECTOR 1
98 KGT-M7178-00X BRACKET 2, GEAR 1
98-1 KGT-M71VB-00X BRACKET, GEAR 1 2005.01.20 MB10079
99 KGT-M7177-00X BRACKET 1, GEAR 1 R
99-1 Delete 2005.01.20 MB10079
100 KGT-M7177-10X BRACKET 1, GEAR 1 L
100-1 Delete 2005.01.20 MB10079
101 KGT-M71V4-00X BRACKET, MOTOR 1 R
101-1 Delete 2005.01.20 MB10079
102 KGT-M71V4-10X BRACKET, MOTOR 1 L
102-1 Delete 2005.01.20 MB10079
103 KGT-M71V5-00X HOLDER, PULLY 1 R
103-1 Delete 2005.01.20 MB10079
104 KGT-M71V5-10X HOLDER, PULLY 1 L
104-1 Delete 2005.01.20 MB10079
105 KV8-M71VS-00X COLLAR, SENSOR 12
106 KGT-M653G-01X HNS, SENSOR, 4 ASSY 1 R 2004.01 M410007
107 KGT-M653G-11X HNS, SENSOR, 4 ASSY 1 L 2004.01 M410007
108 KM1-M4592-12X VAC SENSOR BOARD ASS 6
109 KGT-M654L-A0X SENSOR, DOWN 1 ASSY 3 H1, 3, 5
110 KGT-M654M-A0X SENSOR, DOWN 2 ASSY 3 H2, 4, 6
111 KGT-M654N-A0X SENSOR, CLUTCH ASSY 3
112 KGT-M654G-A0X SENSOR, POS 1 ASSY 3
113 KGT-M654H-A0X SENSOR, POS 2 ASSY 3
114 KGT-M654J-A0X SENSOR, HEAD ASSY 3
114-1 KGT-M654J-A1X SENSOR, HEAD ASSY 3 2004.01.08 M410007
115 KGT-M654K-A0X SENSOR, R ORG ASSY 1
116 99480-04008 PIN, PARALLEL 8
117 KV8-M7103-A0X PISTON, PLUG ASSY 3
118 KV8-M7103-B0X PLUG ASSY 3
119 KV8-M7104-A0X PISTON ASSY 6
120 KM1-M7105-A0X PLUG 2 ASSY 6
121 90563-03J120 SPACER BOLT 6 2004.03.24 M43106
122 KGT-M71VF-00X COVER AMP 2 2004.03.24 M43106
123 90563-23J060 SPACER 2 2004.03.24 M43106
124 KGT-M71VC-00X HOLDER, PULLY 1 R 2005.01.20 MB10079
125 KGT-M71VC-10X HOLDER, PULLY 1 L 2005.01.20 MB10079
