TR7700QC SII Automated Optical Inspection (AOI) SMT AOI Machine

Name: TR7700QC SII Automated Optical Inspection (AOI) SMT AOI Machine
Brand: Ping You Industrial Co.,Ltd
SKU: TR7700QC SII
Price: 15000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TRI

Certification: CE,ISO

Model Number: TR7700QC SII

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Standard Packaging

Delivery Time: 1-2days

Payment Terms: L/C, D/A, D/P

Supply Ability: Long-time

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    Automated Optical Inspection AOI Machine, SMT AOI Machine, TR7700QC SII AOI Machine


Condition:	New/used	Speed:	High-Speed
Quality:	Excellent	Part Number:	TR7700QC SII
Stock:	With Stocks	Precision:	High-precision

Condition:	New/used
Speed:	High-Speed
Quality:	Excellent
Part Number:	TR7700QC SII
Stock:	With Stocks
Precision:	High-precision

Product Description

TR7700QC SII Automated Optical Inspection (AOI) SMT AOI Machine.

Specification:

Optical System
Imaging Method	Stop-and-Go
Top Camera	12 MP High Speed Camera
Angle Camera	N/A
Imaging Resolution	10 µm, 12 µm, 15 µm (factory setting)
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Range	40 mm
Inspection Performance
Imaging Speed	@ 10 μm: 25 cm²/sec
	@ 12 μm: 37 cm²/sec
	@ 15 μm: 57 cm²/sec
Motion Table & Control
X-Axis Control	Ballscrew + AC Servo with Motion Controller
Y-Axis Control	Ballscrew + AC Servo with Motion Controller
Z-Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 μm
Board Handling
Max PCB Size	TR7700QC SII: 510 x 460 mm
	TR7700MQC SII: 660 x 690 mm
	TR7700L QC SII: 765 x 610 mm
	TR7700QC SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	TR7700QC SII: 3 kg. Optional: 5kg
	TR7700MQC SII: 3 kg. Optional: 5kg
	TR7700L QC SII: 3 kg. Optional: 5 kg / 12 kg
	TR7700QC SII DL: 3 kg. Optional: 5kg
Top Clearance	50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm

	* Optional: 940-965 mm (SMEMA compatible)
Inspection Functions
Component	Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component
Solder	Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination
Dimensions
WxDxH	TR7700QC SII: 1100 x 1720 x 1710 mm
	TR7700MQC SII: 1250 x 1740 x 1710 mm
	TR7700L QC SII: 1365 x 1720 x 1710 mm
	TR7700QC SII DL: 1100 x 1820 x 1710 mm

	Note: not including signal tower, signal tower height 515 mm
Weight	TR7700QC SII: 910 kg
	TR7700MQC SII: 992 kg
	TR7700L QC SII: 1025 kg
	TR7700QC SII DL: 960 kg

Other machine:

TR7007D Plus

TR7007M SII Plus

TR7700 SII

TR7007 SII

TR7007Q SII

TR7007 SIII

TR7007Q Plus

TR7700QH SII

TR7500QE Plus

TR7700QB SII

TR7700 SIII Ultra

TR7700QC SII

TR7700 SIII DT

TR7700QC SII picture:

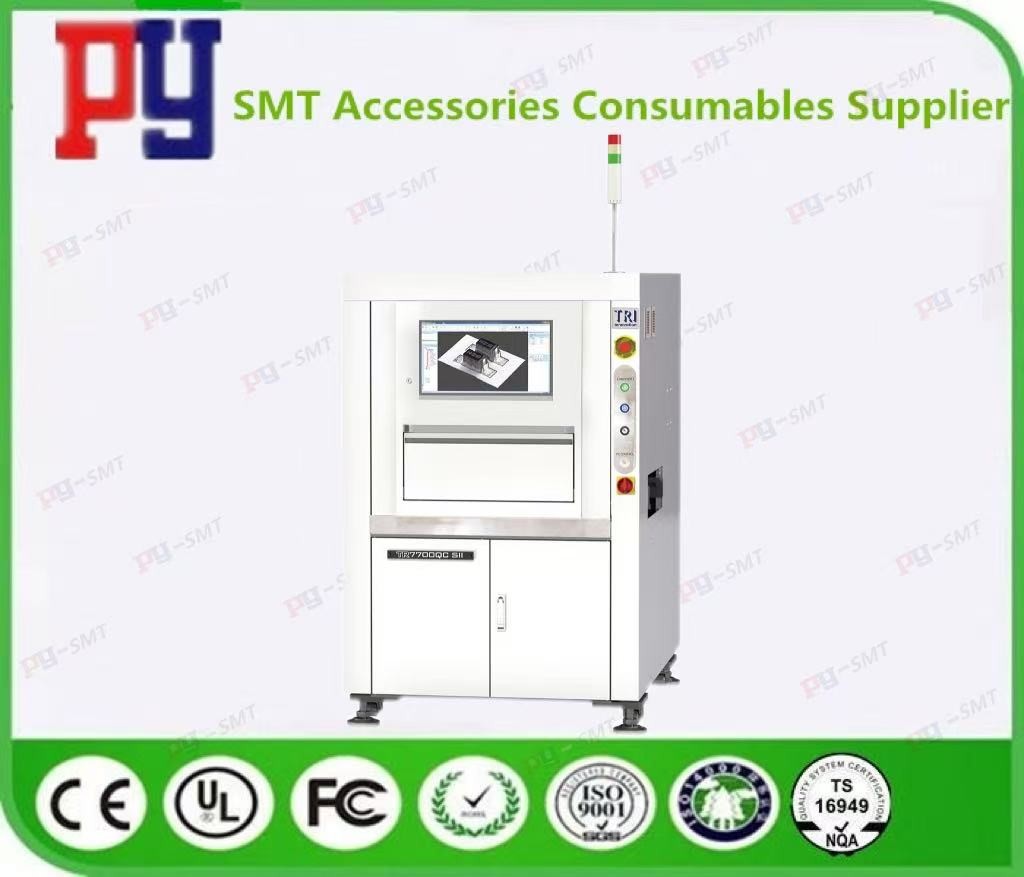

TR7700QC SII Automated Optical Inspection (AOI) SMT AOI Machine 0
