Automated Optical Inspection (AOI) TR7700QB SII SMT AOI Machine

Name: Automated Optical Inspection (AOI) TR7700QB SII SMT AOI Machine
Brand: Ping You Industrial Co.,Ltd
SKU: TR7700QB SII
Price: 15000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TRI

Certification: CE,ISO

Model Number: TR7700QB SII

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Standard Packaging

Delivery Time: 1-2days

Payment Terms: L/C, D/A, D/P

Supply Ability: Long-time

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    TR7700QB SII SMT AOI Machine, SMT AOI Machine TR7700QB SII, Automated Optical Inspection (AOI)  TR7700QB SII


Condition:	New/used	Speed:	High-Speed
Quality:	Excellent	Part Number:	TR7700QB SII
Stock:	With Stocks	Precision:	High-precision

Condition:	New/used
Speed:	High-Speed
Quality:	Excellent
Part Number:	TR7700QB SII
Stock:	With Stocks
Precision:	High-precision

Product Description

Automated Optical Inspection (AOI) TR7700QB SII SMT AOI Machine.

Specification:

Optical System
Imaging Method	Stop-and-Go
Camera	12 MP High Speed Camera
Angle Camera	N/A
Imaging Resolution	15 μm
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Range	20 mm
Inspection Performance
Imaging Speed	57 cm²/sec
Imaging Speed	* Depending on component distribution
Motion Table & Control
X-Axis Control	Ballscrew + AC Servo with Motion Controller
Y-Axis Control	Ballscrew + AC Servo with Motion Controller
Z-Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 μm with linear encoder
Board Handling
Max PCB Size	510 x 510 mm
PCB Thickness	0.6 - 6 mm
Max PCB Weight	3kg. Optional: 5 kg
Top Clearance	100 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 5 mm
Conveyor	Inline Height: 830 - 870 mm

	* Optional: 900 mm
Inspection Functions
Component	Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component, Bridge, Pin Height
THT Defects	Missing, Position, Soldering Defects, Pinhole, Blowhole, Pin Height, Pin Angle, Pin Offset, Bridging, Wetting
Solder	Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination
Dimensions
WxDxH	1100 x 1730 x 1585 mm

	Note: not including signal tower, signal tower height 515 mm
Weight	1030 kg

Other machine:

TR7007D Plus

TR7007M SII Plus

TR7700 SII

TR7007 SII

TR7007Q SII

TR7007 SIII

TR7007Q Plus

TR7700QH SII

TR7500QE Plus

TR7700QB SII

TR7700 SIII Ultra

TR7700QC SII

TR7700 SIII DT

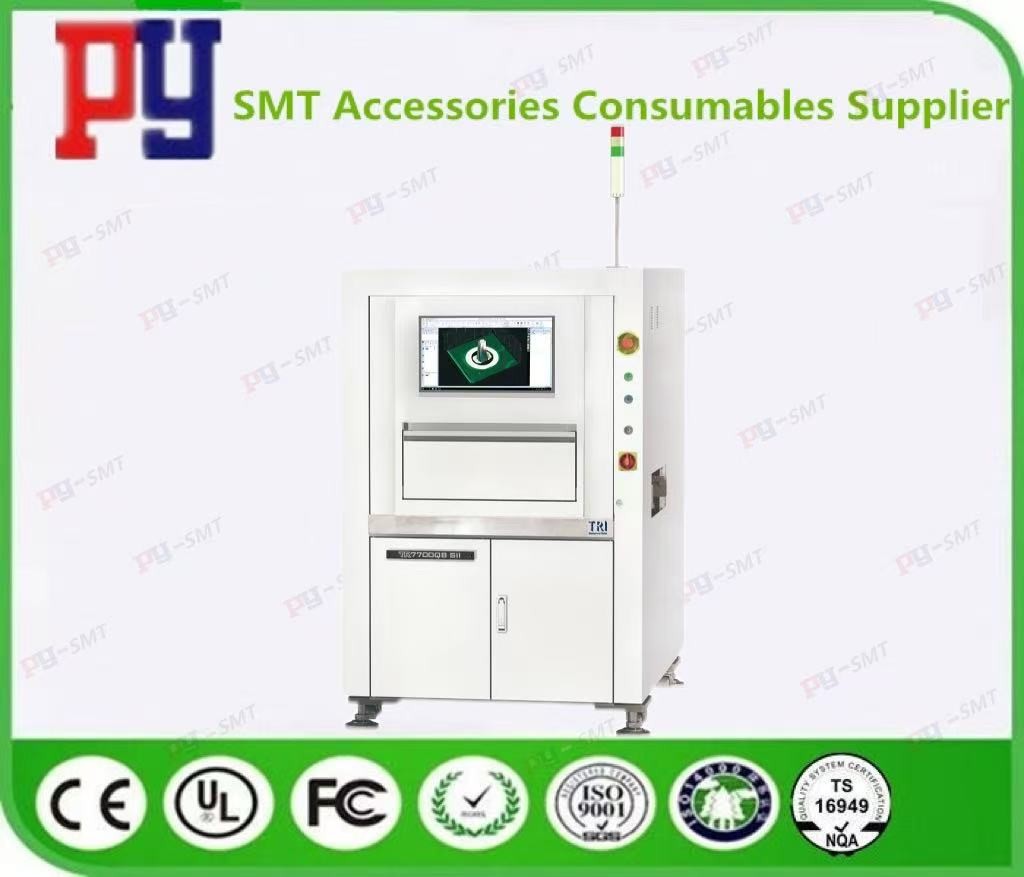

TR7700QB SII picture:
