precision Automated Optical Inspection AOI TR7500QE Plus Excellent Guaranteed
| Place of Origin | China |
|---|---|
| Brand Name | TRI |
| Certification | CE,ISO |
| Model Number | TR7500QE Plus |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Standard Packaging |
| Delivery Time | 1-2days |
| Payment Terms | L/C, D/A, D/P |
| Supply Ability | Long-time |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New/used | Speed | High-Speed |
|---|---|---|---|
| Quality | Excellent | Part Number | TR7500QE Plus |
| Stock | With Stocks | Precision | High-precision |
| Highlight | Precision Automated Optical Inspection,Excellent Guaranteed Automated Optical Inspection,AOI TR7500QE Plus |
||
Product Description
SMT Machine Automated Optical Inspection (AOI) TR7500QE Plus.
Specification:
| Optical System | |
| Imaging Method | Stop-and-Go |
| Top Camera | 12 MP High Speed Camera |
| Angle Camera | 4 Angled Cameras |
| Imaging Resolution | 10 µm, 12 µm *, 15 µm (factory setting) |
| * Available for TR7500QE Plus | |
| Lighting | Multi-Phase True Color LED, Coaxial Lighting |
| 3D Technology | Digital Fringe Pattern Projectors |
| Max. 3D Range | 40 mm |
| Inspection Performance | |
| Imaging Speed | @ 10 μm: 25 cm²/sec |
| @ 12 μm: 37 cm²/sec | |
| @ 15 μm: 57 cm²/sec | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC Servo with Motion Controller (Linear Motor Optional) |
| Y-Axis Control | Dual Driven Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control | Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution | 1 μm |
| Board Handling | |
| Max PCB Size | TR7500QE Plus: 510 x 510 mm |
| TR7500QE Plus DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane | |
| PCB Thickness | 0.5 - 6 mm |
| Max PCB Weight | 3kg. Option: 4kg / 5kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm. Optional: 4 mm / 5 mm |
| Conveyor | Inline Height: 880 – 920 mm |
| Inspection Functions | |
| Component | Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material |
| Solder | Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
| Dimensions | |
| WxDxH | TR7500QE Plus: 1100 x 1730 x 1700 mm |
| TR7500QE Plus DL: 1100 x 2005 x 1700 mm | |
| TR7500L QE Plus: 1365 x 1865 x 1700 mm | |
| Note: not including signal tower, signal tower height 520 mm | |
| Weight | TR7500QE Plus: 920 kg |
| TR7500QE Plus DL: 1040 kg | |
| TR7500L QE Plus: 1035 kg |
Other machine:
| TR7007D Plus |
| TR7007M SII Plus |
| TR7700 SII |
| TR7007 SII |
| TR7007Q SII |
| TR7007 SIII |
| TR7007Q Plus |
| TR7700QH SII |
| TR7500QE Plus |
| TR7700QB SII |
| TR7700 SIII Ultra |
| TR7700QC SII |
| TR7700 SIII DT |

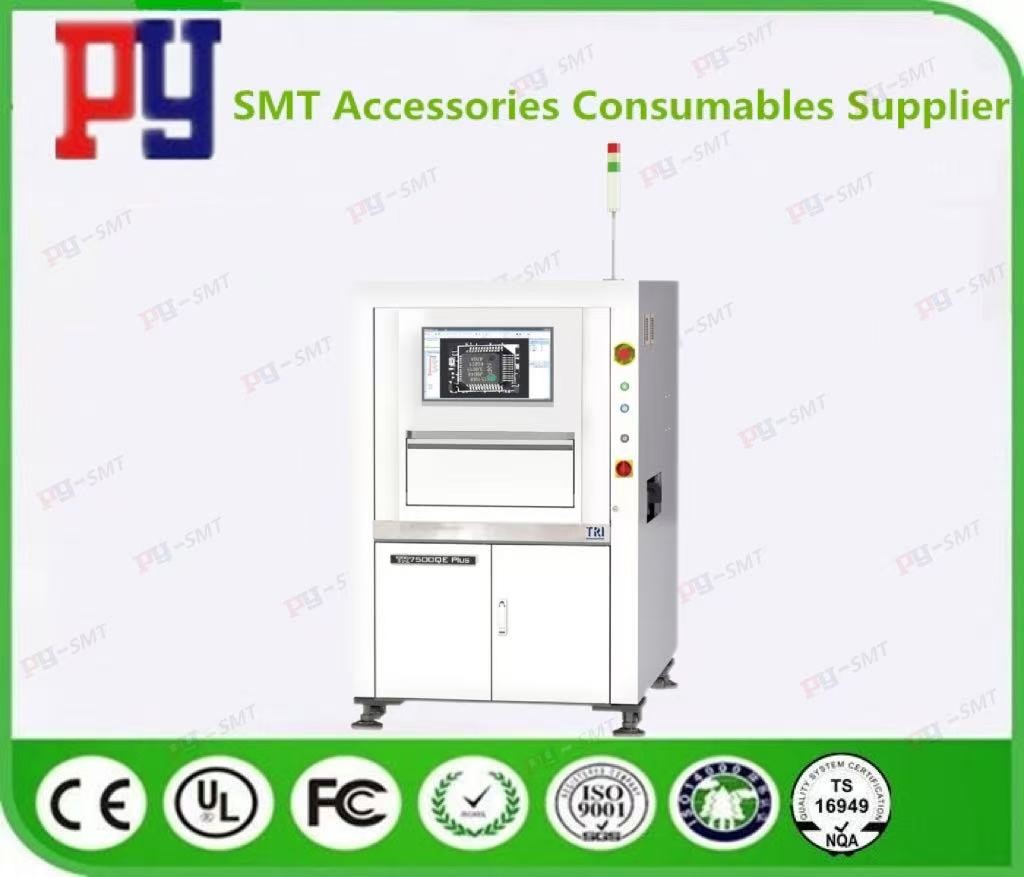

TR7500QE Plus picture:
