SMT Machine 3D Solder Paste Inspection (SPI) TR7007Q Plus for Precision Results
| Place of Origin | China |
|---|---|
| Brand Name | TRI |
| Certification | CE,ISO |
| Model Number | TR7007Q Plus |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Standard Packaging |
| Delivery Time | 1-2days |
| Payment Terms | L/C, D/A, D/P |
| Supply Ability | Long-time |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New/used | Speed | High-Speed |
|---|---|---|---|
| Quality | Excellent | Part Number | TR7007Q Plus |
| Stock | With Stocks | Precision | High-precision |
| Highlight | 3D SPI SMT Machine,3D Solder Paste Inspection SMT Machine,TR7007Q Plus SMT Machine |
||
Product Description
SMT Machine 3D Solder Paste Inspection (SPI) TR7007Q Plus.
Specification:
| Optical System | |
| Imaging Method | Stop-and-Go Imaging |
| Camera | 4 Mpix or 12 Mpix (factory setting) |
| Imaging Resolution | 5.5 μm, 6 μm, 10 μm , 15 µm (factory setting) |
| Lighting | Enhanced 2D Lights (RGB+W) |
| 3D Technology | 4-way Digital Fringe Pattern |
| Field of View | 4 MP Camera Link- |
| @ 10 μm: 20.3x20.3 mm | |
| @ 15 μm: 30.5x30.5 mm | |
| 12 MP Camera Link- | |
| @ 5.5 μm: 22.5x16.5 mm | |
| @ 10 μm: 40.6x30.7 mm | |
| @ 15 μm: 61x46 mm | |
| 12 MP CoaXPress- | |
| @ 6 μm: 24.3x18.4 mm | |
| @ 10 μm: 40.6x30.7 mm | |
| @ 15 μm: 61x46 mm | |
| Inspection Performance | |
| Imaging Speed | 4 MP Camera Link: Up to 3 FOV/sec |
| 12 MP Camera Link: Up to 1.8 FOV/sec | |
| 12 MP CoaXPress: Up to 2.6 FOV/sec | |
| Height Resolution | @10 μm/15 μm: 0.45 μm |
| @5.5 μm/6 μm: 0.22 μm | |
| Max. Solder Height | @10 μm/15 μm: 420 μm/750 μm |
| @5.5 μm/6 μm: 210 μm/310 μm | |
| * on Calibration Target | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + EtherCAT motion controller |
| Y-Axis Control | Ballscrew + EtherCAT motion controller |
| Z-Axis Control | Ballscrew + EtherCAT motion controller |
| X-Y Axis Resolution | 0.5 µm |
| Z-Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7007Q Plus:@5.5 μm, 6 μm - 400 x 330 mm, @10 & 15 μm - 510 x 460 mm |
| TR7007Q Plus DL:@10 μm, 15 μm - 510x310 mm x 2 Lanes, 510x590 mm x 1 Lane | |
| TR7007LQ Plus:@6 μm, 10 μm, 15 μm - 765 x 610 mm | |
| PCB Thickness | 0.6 - 5mm |
| Max PCB Weight | 3kg. Optional: 5kg |
| Top Clearance | @5.5 μm, 6 μm: 25 mm; @10 μm, 15 μm: 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm |
| Conveyor Height | 880 – 920 mm |
| * SMEMA Compatible | |
| Inspection Functions | |
| Defects | Insufficient Paste |
| Excessive Paste | |
| Shape Deformity | |
| Missing Paste & Bridging | |
| Measurement | Height |
| Area | |
| Volume | |
| Offset | |
| Dimensions | |
| WxDxH | TR7007Q Plus: 1000 x 1400 x 1650 mm |
| TR7007Q Plus DL: 1000 x 1500 x 1650 mm | |
| TR7007LQ Plus: 1365 x 1720 x 1710 mm | |
| Note: not including signal tower, signal tower height 515 mm | |
| Weight | TR7007Q Plus: 775 kg |
| TR7007Q Plus DL: 825 kg | |
| TR7007LQ Plus: 982 kg |
Other machine:
| TR7007D Plus |
| TR7007M SII Plus |
| TR7700 SII |
| TR7007 SII |
| TR7007Q SII |
| TR7007 SIII |
| TR7007Q Plus |
| TR7700QH SII |
| TR7500QE Plus |
| TR7700QB SII |
| TR7700 SIII Ultra |
| TR7700QC SII |
| TR7700 SIII DT |

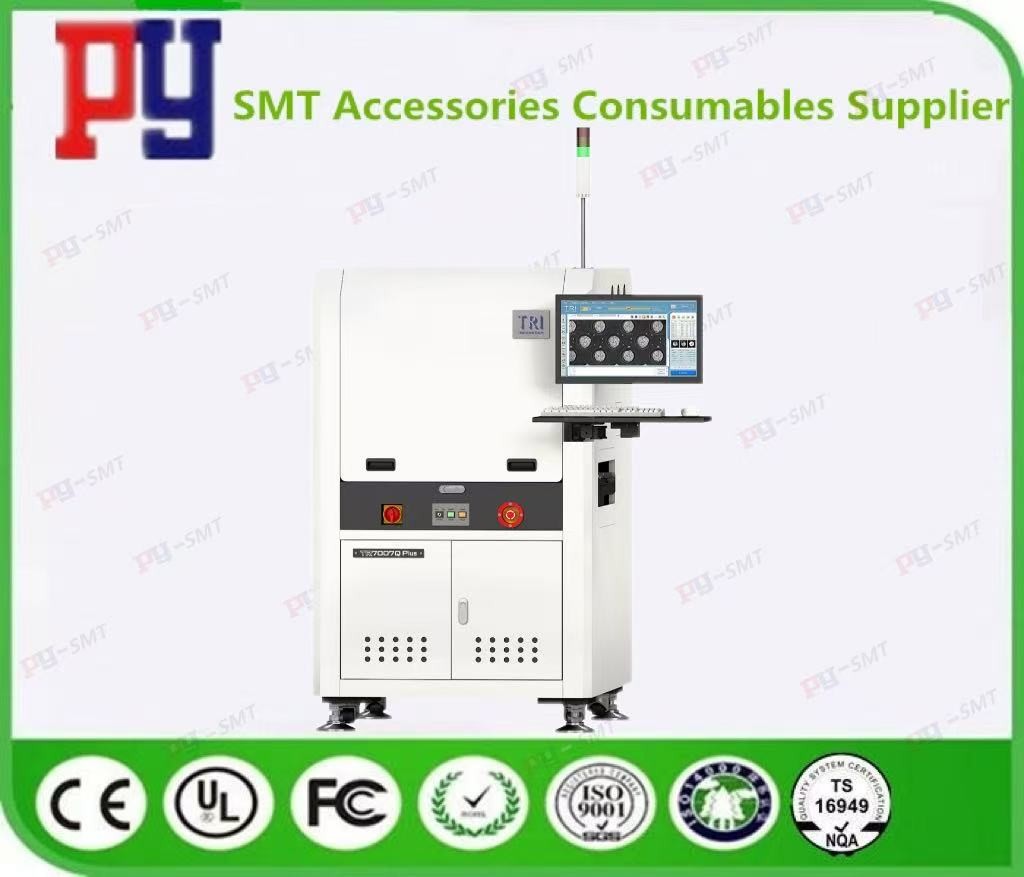

TR7007Q Plus picture:
