Speed 3D Solder Paste Inspection SPI TR7007 SIII SMT Machine With Stocks and Fast Performance

Name: Speed 3D Solder Paste Inspection SPI TR7007 SIII SMT Machine With Stocks and Fast Performance
Brand: Ping You Industrial Co.,Ltd
SKU: TR7007 SIII
Price: 15000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TRI

Certification: CE,ISO

Model Number: TR7007 SIII

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Standard Packaging

Delivery Time: 1-2days

Payment Terms: L/C, D/A, D/P

Supply Ability: Long-time

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    TR7007 SIII Solder Paste Inspection Machine, Fast Performance Solder Paste Inspection Machine, Solder Paste Inspection SMT Machine


Condition:	New/used	Speed:	High-Speed
Quality:	Excellent	Part Number:	TR7007 SIII
Stock:	With Stocks	Precision:	High-precision

Condition:	New/used
Speed:	High-Speed
Quality:	Excellent
Part Number:	TR7007 SIII
Stock:	With Stocks
Precision:	High-precision

Product Description

SMT Machine 3D Solder Paste Inspection (SPI) TR7007 SIII.

Specification:

Optical System
Imaging Method	Dynamic Imaging
Camera	4 Mpix
Imaging Resolution	10 μm, 15 µm (factory setting)
Lighting	Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting
3D Technology	2-way Fringe Pattern
Field of View	4 Mpix@ 10 µm: 20 x 20 mm
Field of View	4 Mpix@ 15 µm: 30 x 30 mm
Inspection Performance
Imaging Speed	4 Mpix@ 10 µm: 90 cm²/sec
Imaging Speed	4 Mpix@ 15 µm: 200 cm²/sec
Height Resolution	0.4 µm
Max. Solder Height	@ 10 µm: 400 µm
Max. Solder Height	@ 15 µm: 385 µm
Motion Table & Control
X-Axis Control	Linear motor + Linear Scale + EtherCAT Servo
Y-Axis Control	AC motor with ball screw + EtherCAT Servo
Z-Axis Control	AC motor with ball screw + EtherCAT Servo
X-Y Axis Resolution	0.5 µm
Z-Axis Resolution	1 µm
Board Handling
Max PCB Size	TR7007 SIII: 510 x 460 mm
Max PCB Size	TR7007 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor Height	880 – 920 mm
Conveyor Height	* SMEMA Compatible
Inspection Functions
Defects	Insufficient Paste
	Excessive Paste
	Shape Deformity
	Missing Paste & Bridging
Measurement	Height
	Area
	Volume
	Offset
Dimensions
WxDxH	TR7007 SIII: 1100 x 1480 x 1600
	TR7007 SIII DL: 1100 x 1705 x 1600 mm
	Note: not including signal tower, signal tower height 512 mm
Weight	TR7007 SIII: 740 kg
Weight	TR7007 SIII DL: 925 kg

Other machine:

TR7007D Plus

TR7007M SII Plus

TR7700 SII

TR7007 SII

TR7007Q SII

TR7007 SIII

TR7007Q Plus

TR7700QH SII

TR7500QE Plus

TR7700QB SII

TR7700 SIII Ultra

TR7700QC SII

TR7700 SIII DT

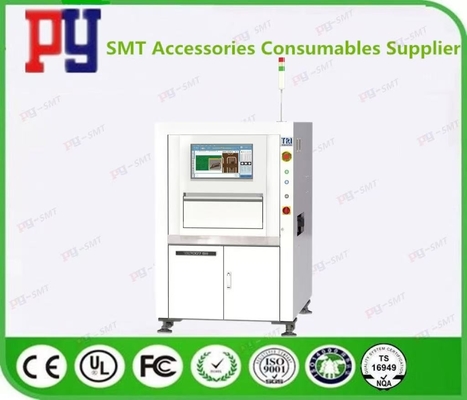

TR7007 SIII picture:
