SMT Machine 3D Solder Paste Inspection (SPI) TR7007Q SII SMT Assembly Equipment
| Place of Origin | China |
|---|---|
| Brand Name | TRI |
| Certification | CE,ISO |
| Model Number | TR7007Q SII |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Standard Packaging |
| Delivery Time | 1-2days |
| Payment Terms | L/C, D/A, D/P |
| Supply Ability | Long-time |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New/used | Speed | High-Speed |
|---|---|---|---|
| Quality | Excellent | Part Number | TR7007Q SII |
| Stock | With Stocks | Precision | High-precision |
| Highlight | 3D SPI SMT Assembly Equipment,TR7007Q SII SMT Machine,3D Solder Paste Inspection SMT Machine |
||
Product Description
SMT Machine 3D Solder Paste Inspection (SPI) TR7007Q SII.
Specification:
| Optical System | |
| Imaging Method | Stop-and-Go Imaging |
| Camera | 21 Mpix |
| Imaging Resolution | 9.8 μm, 15 μm (factory setting) |
| Lighting | Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting |
| 3D Technology | 4-way Digital Fringe Pattern |
| Field of View | 21 Mpix@ 9.8 μm: 50.30 x 40.24 mm |
| 21 Mpix@ 15 μm: 76.8 x 61.4 mm | |
| Inspection Performance | |
| Imaging Speed | 21 Mpix@ 9.8 μm: 2.6 FOV/sec |
| 21 Mpix@ 15 μm: 2.3 FOV/sec | |
| Height Resolution | 21 Mpix@ 9.8 μm: 0.4 μm |
| 21 Mpix@ 15 μm: 0.454 μm | |
| Max. Solder Height | 21 Mpix@ 9.8 μm: 420 μm |
| 21 Mpix@ 15 μm: 470 μm | |
| * on Calibration Target | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC Servo with EtherCAT Motion Controller |
| Y-Axis Control | Ballscrew + AC Servo with EtherCAT Motion Controller |
| Z-Axis Control | Ballscrew + AC Servo with EtherCAT Motion Controller |
| X-Y Axis Resolution | 0.1 μm |
| Z-Axis Resolution | 0.1 μm |
| Board Handling | |
| Max PCB Size | TR7007Q SII: 510 x 460 mm |
| TR7007Q SII: DL: 510x310 mm x 2 Lanes, 510x590 mm x 1 Lane | |
| TR7007LQ SII: 765 x 610 mm | |
| PCB Thickness | 0.6 - 5 mm |
| Max PCB Weight | TR7007Q SII (DL): 3 kg. Optional: 5 kg |
| TR7007LQ SII: 3 kg. Optional: 5 kg / 12 kg | |
| Top Clearance | TR7007Q SII (DL): 25 mm, TR7007LQ SII: 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm. Optional: 4 mm / 5 mm |
| Conveyor Height | 880 – 920 mm |
| * SMEMA Compatible | |
| Inspection Functions | |
| Defects | Insufficient Paste |
| Excessive Paste | |
| Shape Deformity | |
| Missing Paste & Bridging | |
| Measurement | Height |
| Area | |
| Volume | |
| Offset | |
| Dimensions | |
| WxDxH | TR7007Q SII: 1000 x 1480 x (@9.8 μm: 1650 mm, @15 μm: 1700 mm) |
| TR7007Q SII DL: 1000 x 1750 x (@9.8 μm: 1650 mm, @15 μm: 1700 mm) | |
| TR7007LQ SII: 1365 x 1720 x 1710 mm | |
| Note: not including signal tower | |
| Weight | TR7007Q SII: 795 kg |
| TR7007Q SII DL: 840 kg | |
| TR7007LQ SII: 1025 kg |
Other machine:
| TR7007D Plus |
| TR7007M SII Plus |
| TR7700 SII |
| TR7007 SII |
| TR7007Q SII |
| TR7007 SIII |
| TR7007Q Plus |
| TR7700QH SII |
| TR7500QE Plus |
| TR7700QB SII |
| TR7700 SIII Ultra |
| TR7700QC SII |
| TR7700 SIII DT |

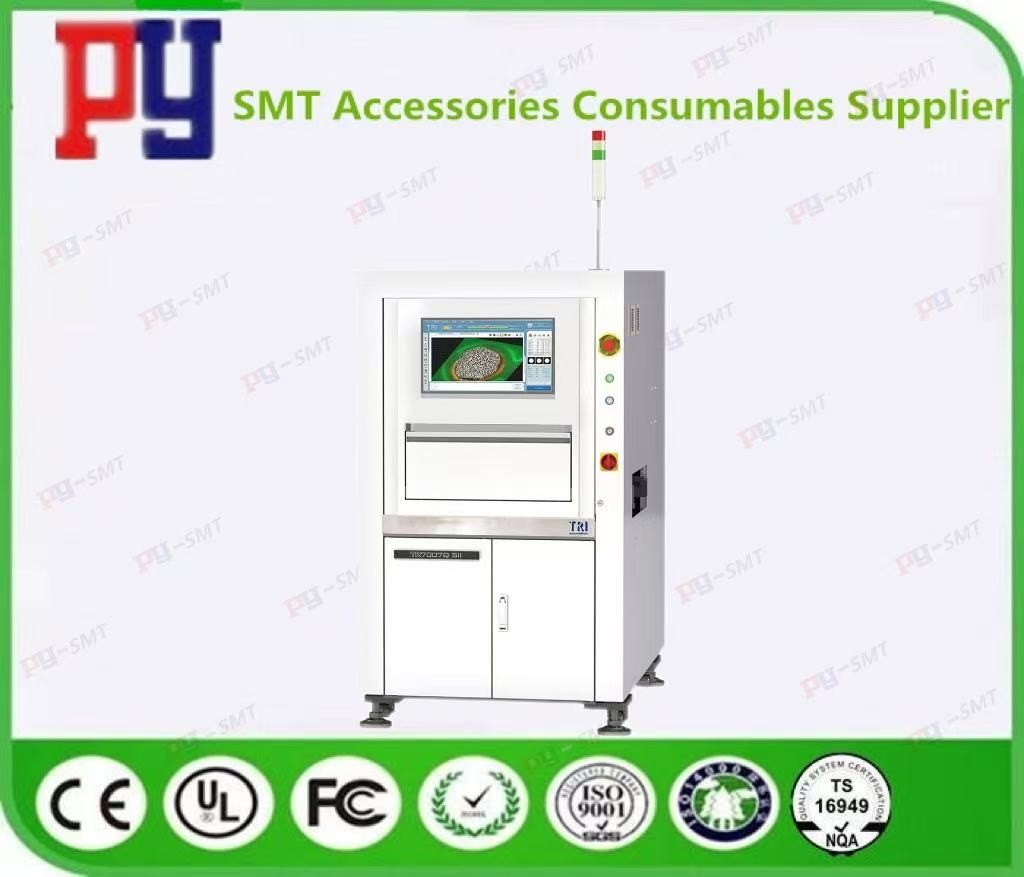

TR7007Q SII picture:
