TR7007M SII Plus SMT Machine
, SII Plus SMT Machine
, 3D Solder Paste Inspection SMT Machine
SMT Machine 3D Solder Paste Inspection (SPI) TR7007M SII Plus.
Specifications:
| Optical System |
|
| Imaging Method |
Dynamic Imaging |
| Camera |
4 Mpix |
| Imaging Resolution |
10 µm or 15 µm (factory setting) |
| Lighting |
RGB LED |
| 3D Technology |
2-way Fringe Pattern |
| Field of View |
4 Mpix@ 10 µm: 20 x 20 mm |
| 4 Mpix@ 15 µm: 30 x 30 mm |
| Inspection Performance |
|
| Imaging Speed |
4 Mpix@ 10 µm: 90 cm²/sec |
| 4 Mpix@ 15 µm: 200 cm²/sec |
| Height Resolution |
0.4 µm |
| Max. Height Range |
@ 10 µm: 600 µm |
| @ 15 µm: 550 µm |
| Motion Table & Control |
|
| X-Axis Control |
Linear Motor and linear scale with DSP-based controller |
| Y-Axis Control |
Ballscrew + AC-servo controller |
| Z-Axis Control |
Ballscrew + AC-servo controller |
| X-Y Axis Resolution |
0.5 µm |
| Z-Axis Resolution |
1 µm |
| Board Handling |
|
| Max PCB Size |
TR7007M SII Plus: 350 x 350 mm |
| TR7007 SII Plus: 510 x 460 mm |
| TR7007L SII Plus: 660 x 610 mm |
| TR7007 SII Plus DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness |
0.6-5 mm |
| Max PCB Weight |
3 kg |
| Top Clearance |
25 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm |
| Conveyor Height |
880 – 920 mm |
| * SMEMA Compatible |
| Inspection Functions |
|
| Defects |
Insufficient Paste |
| Excessive Paste |
| Shape Deformity |
| Missing Paste & Bridging |
| Measurement |
Height |
| Area |
| Volume |
| Offset |
| Dimensions |
|
| WxDxH |
TR7007M SII Plus: 1000 x 1555 x 1500 mm |
| TR7007 SII Plus: 1100 x 1570 x 1550 |
| TR7007L SII Plus: 1300 x 1610 x 1560 mm |
| TR7007 SII Plus DL: 1100 x 1770 x 1560 mm |
| Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7007M SII Plus: 870 kg |
| TR7007 SII Plus: 950 kg |
| TR7007L SII Plus: 1250 kg |
| TR7007 SII Plus DL: 1100 kg |
Other machine:
| TR7007D Plus |
| TR7007M SII Plus |
| TR7700 SII |
| TR7007 SII |
| TR7007Q SII |
| TR7007 SIII |
| TR7007Q Plus |
| TR7700QH SII |
| TR7500QE Plus |
| TR7700QB SII |
| TR7700 SIII Ultra |
| TR7700QC SII |
| TR7700 SIII DT |

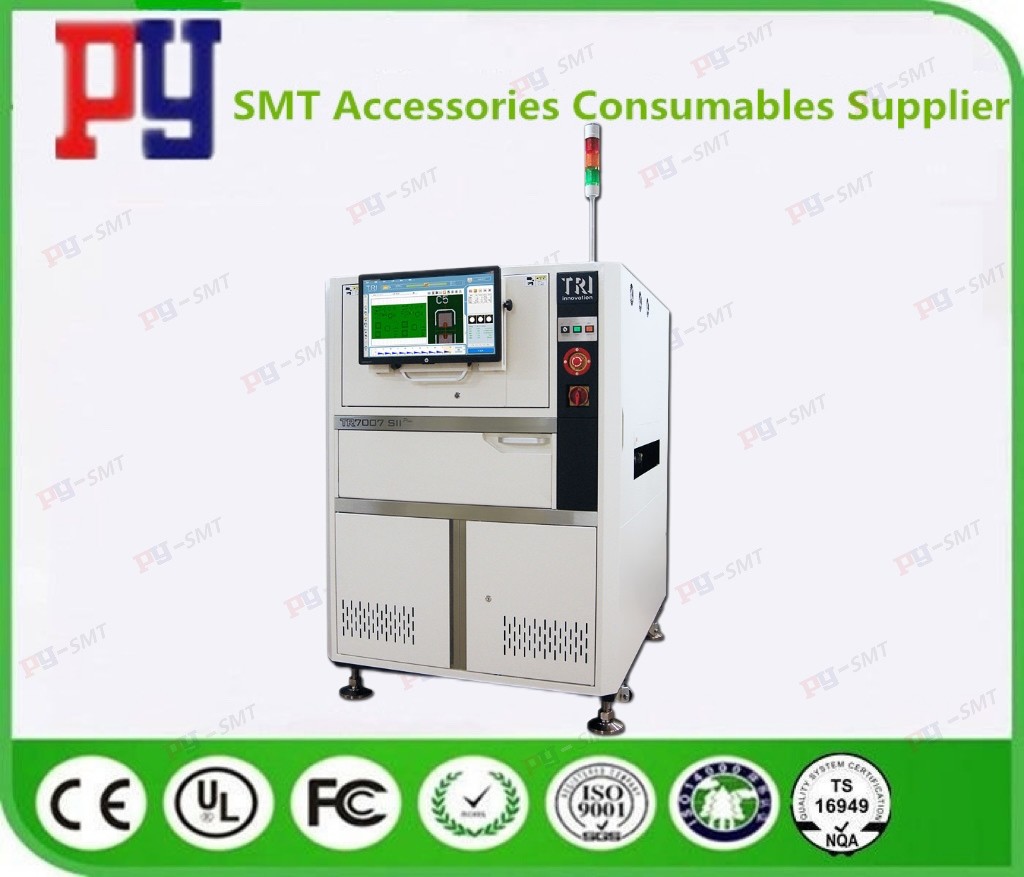

TR7007M SII Plus picture:
