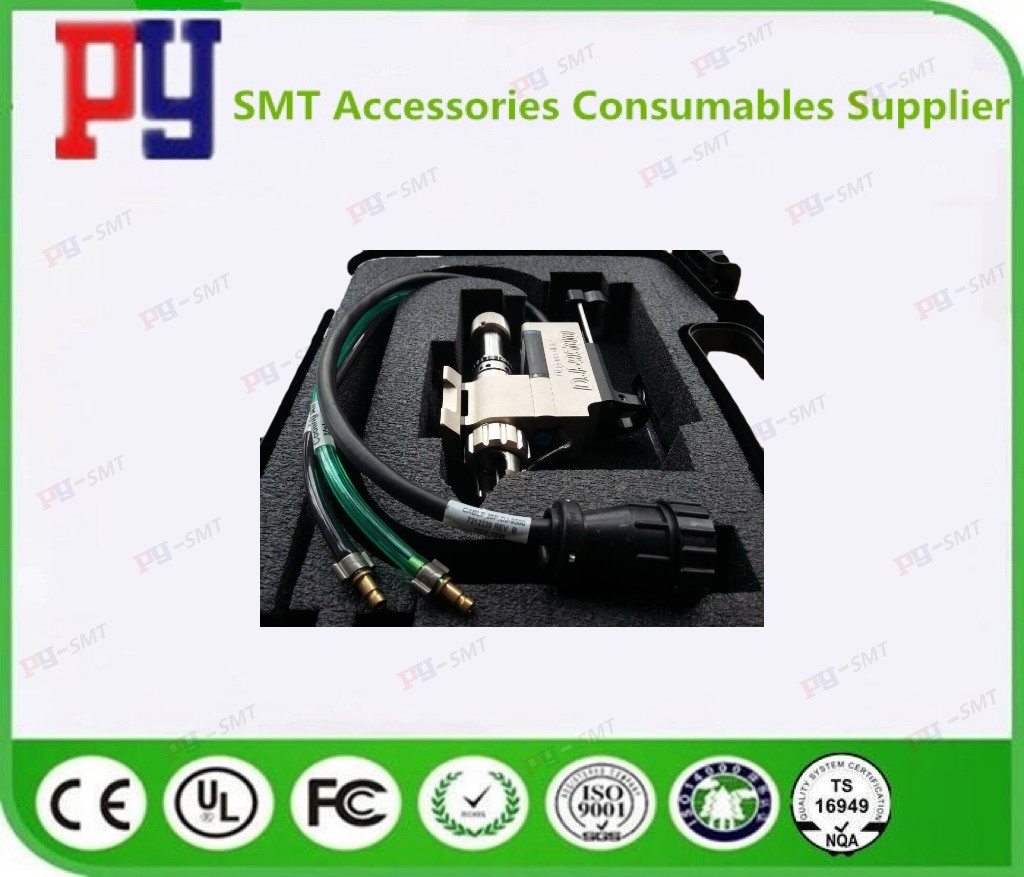

7219500 Asymtek DJ-9500 DISPENSE JET 9500 BODY HEAT/HIGH-SPEED JET DISPENSING

Name: 7219500 Asymtek DJ-9500 DISPENSE JET 9500 BODY HEAT/HIGH-SPEED JET DISPENSING
Brand: Ping You Industrial Co.,Ltd
SKU: 7219500/7224038/7279780/931340
Price: 7,499.50 USD
Availability: InStock

Product Details

Place of Origin: USA

Brand Name: Asymtek

Certification: ISO CE

Model Number: 7219500/7224038/7279780/931340

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Carton packing

Delivery Time: 1-3days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000per/month

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    Asymtek DJ-9500 DISPENSE JET, 7219500 DISPENSE JET, 7219500 SMT Machine Spare Parts


Part Number:	7219500	Machine:	Asymtek DJ-9500
Made In:	U.S.A./Nordson/ASYMTEK	Precision:	High-precision
Conditon:	Origin New/Origin Used	Stock:	With Stocks

Part Number:	7219500
Machine:	Asymtek DJ-9500
Made In:	U.S.A./Nordson/ASYMTEK
Precision:	High-precision
Conditon:	Origin New/Origin Used
Stock:	With Stocks

Product Description

7219500 Asymtek DJ-9500 DISPENSE JET.9500,BODY HEAT/HIGH-SPEED JET DISPENSING

7219500 Asymtek DJ-9500 DISPENSE JET 9500 BODY HEAT/HIGH-SPEED JET DISPENSING 0

7212313	ASSY,STROKE ADJUST,DETENT,5 CL
7212318	ASSY,STROKE ADJUST,DETENT,1 CL
See Table 8-1	ASSY, NEEDLE
199512	SEAL, ROD
7212285	SLEEVE, LOCK, .8MM P
7204263	O-RING,M1.5X20,EP
49-3212	SCREW,M3-.5 PH FLAT X 12,SS
7212277	MUFFLER PLATE, DJ-9500
7212301	O-RING,#025,VITON
7212275	BRACKET, DOVETAIL, DJ-9500
7200578	O-RING, .22"ID,X.032"CS,70EP
7214861	ISOLATOR, DOVE TAIL, DJ-9500
7214811	ASSY, JET BODY, REAR, DJ-9500
7207671	COLLAR, TORQUE
7200581	SEAL,PEEK,.313X.125
955055	SEAL,FLUOROLOY G,.313X.125
7214879	RING, CLAMP DIAPHRAGM - DJ-9500
7204273	SEAL,STATIC
7214850	ASSY,CHAMBER FL O-RING,DJ-9500
7214852	ASSY,STATIC CH O-RING,DJ-9500
7214843	ASSY,CHAMBER,FLUID
7214880	ASSY,CHAMBER FLUID STATIC,DJ-9500
7216505	O-RING,.22"IDX.032CS,70VT
See Table 8-1	NOZZLE, UNITIZED
See Table 8-1	SEAT, ACTIVE
See Table 8-1	NOZZLE, ACTIVE
See Table 8-1	SEAT, STANDARD
See Table 8-1	NOZZLE, STANDARD
7225379	ASSY, THERMAL CONTROL
7214808	O-RING,-008,EPDM
194424	O-RING,020,VITON
7222978	ASSY, VALVE, 3-WAY
7214821	ASSY, J-BOX,DJ-9500,W CLAMP
7214840	ASSY, J-BOX,BODY HEATER,DJ-9500
7214890	ASSY, J-BOX, NO-HEAT, DJ9500
SCREW,M3X.05, COSKET CAP X30	49-3330
(Torque to 12in-lbs)	7212295
DRAW PLATE HEAT EX, DJ9500	CAM RELEASE MECHANISM
48-9930	PIN.DOWEL,.125 X .438 LG
7212288	CAM,HEAT EX, DJ-9500
7212292	ADJ PLATE HEAT EX, DJ-9500
7212293	LINKAGE HEAT EX, DJ-9500
PIN,DOWEL,.125 X .625,H&G	985432
7212305	SPRING,OD.3,W.0051, FH.625,SS
195444	SHCS, M5x0.8 X 30 mm
7212291	HANDLE, HEAT EX, DJ-9500
49-3208	SCREW, M3 X .05 PH, FLAT X 8
7212290	COVER,HEAT EX,DJ-9500
7214865	SCREW,BUTTON HEAD M3 X 16,SS
7214863	COVER,JUNCTION BOX,DJ-9500
49-3206	SCREW,M3X.05 FLAT
03-0639-00	CLIP,30cc
7214869	CLIP, 6oz, DJ-9500
49-3306	SCREW,D M4X6,SS,SOC HEAD
7201394	HOLDER,SYRINGE
7201407	HOLDER,SYRINGE,30cc
49-3208	SCREW,M3 X .05 PH, FLAT X 8
210765	ASSY, FEED TUBE, FLUID
7214827	BODY,HEAT EX,DJ-9500 1CC, LUER
7214828	BODY,HEAT EX,DJ-9500 3CC, 1/4NPT
7200538	KIT, CONSUMABLE, VALVE, DJ-9500
01-0022-00	BOOT,VAC .120 ID OLIVE
193840	SWAB,RND/RND TIP, 10/PKG
210765	ASSY,TUBE, FEED, 50/PKG
48-0018	LUBRICANT, DRY PASTE
58-0036	SWAB,COT,RD.TIP,6"WD, 100/PKG.
58-0037	SWAB,MINI,RD.TIP, 25/PKG.
SWAB,MINI,COT,WD.HNDL 100/PKG	58-0038
7200578	O-RING, .220"ID X.032"CS 70EP
7204301	SWAB,1.5MM TIP,BOX 100
7204302	BRUSH,BEARING,PKG/50,DJ-9000
7208918	VIAL WIRE,25PC.,.0025 DIA
901922	KIT,WIRE,CLN,MUSIC W .007" DIA
901923	KIT,WIRE,CLN,MUSIC W,.011"DIA
901924	KIT,WIRE,CLN,MUSIC W,.014"DIA
901935	KIT,WIRE,CLN,MUSIC W,.003"DIA
955055	SEAL,FLUOROLOY G,.313X.125
LABEL	LABEL FOR OUTGOING PRODUCT
7200539	VALVE KIT, DJ-9500
48-8105	TOOL,SEAL REMOVAL,PLASTIC
7218010	MAN,OWNER,DJ-9500
7201408	HOLDER,SYRINGE,10CC
7201409	HOLDER,SYRINGE,5CC
7201416	TOOL,SEAT/SEAL DJ-9000
7204294	INSTRUCTION,STATIC SEAL
7219143	WRENCH,TORQUE
7208915	INSERTION,TOOL,NEEDLE, DJ-9000
901916	VISE,PIN
D SET, SYRINGE	KS-01
SA-603-C	ASSY,SYRINGE 3CC,CLR
SA-606-C	ASSY,SYRINGE 6CC,CLR
SA-610-C	ASSY,SYRINGE 10CC,CLR
SA-635	ASSY,SYRINGE 35CC,CLR
7204302	BRUSH BEARING
7214845	KIT,OPTION,TAN SEAL,DJ-9500
7214846	KIT,OPTION,GOLD SEAL,DJ-9500
7214847	KIT,OPTION,STATIC SEAL,DJ-9500
7203896	KIT,6OZ,DJ-9500
7201410	KIT,MLFS,DJ-9500
7212313	ASSY,STROKE ADJUST,DETENT,5 CL
7212318	ASSY,STROKE ADJUST,DETENT,1 CL
7214872	KIT, CONSUMABLE, VALVE, DJ-9520
7214873	VALVE KIT, DJ-9520
7214830	KIT,O-RING CH,TAN SEAL,DJ-9500
7214831	KIT,O-RING CH,GOLD SEAL,DJ-9500
7214832	KIT,O-RING CH,STATIC SEAL,DJ-9500
7214853	KIT,OPTION,HEAT EX 6OZ,DJ-9500
7214854	KIT,OPTION,HEAT EX 30CC,DJ9500
MLFS	MAGNETIC LOW FLUID SENSOR
7212313	ASSY,STROKE ADJUST,DETENT,5 CL
7212318	ASSY,STROKE ADJUST,DETENT,1 CL
7214835	ASSY,TOOL,ALIGN,HT EX,DJ-9500
193840	SWAB,RND/RND TIP,10/PKG
210765	ASSY,FEED TUBE,FLUID,PKG-50
901922	KIT,WIRE,CLN,TUNG,.007"DIA
901923	KIT,WIRE,CLN,TUNG,.011"DIA
901924	KIT,WIRE,CLN,TUNG,.014"DIA
901935	KIT,WIRE,CLN,TUNG,.003"DIA
955055	SEAL,FLUOROLOY G,.313X.125
7200578	O-RING,.22"ID X .032"CS,70EP
7204301	SWAB,1.5MM TIP,BOX 100
7204302	BRUSH,BEARING,PKG/50,DJ-9000
7208918	VIAL WIRE,25PC.,.0025 DIA
01-0022-00	BOOT,VAC .120 ID OLIVE
48-0018	LUBRICANT, DRY FILM PASTE
58-0036	SWAB,COT,RD.TIP,6"WD,100/PKG.
58-0037	SWAB,MINI,RD.TIP,25/PKG.
58-0038	SWAB,MINI,COT,WD.HNDL 100/PKG
LABEL	LABEL FOR OUTGOING PRODUCT
7214868	BRUSH,BOTTLE,.13OD X6IN,PKG 10
901916	VISE,PIN
7218010	MAN,OWNER,DJ-9500
7204294	INSTRUCTION,STATIC SEAL
7219143	WRENCH,TORQUE
7207680	TOOL,SEAT/SEAL
7208915	INSERTION,TOOL,NEEDLE
48-8105	TOOL,SEAL REMOVAL,PLASTIC

N-7214843	ASSY,CHAMBER FLUID,DJ-9500
N-7212730-25	NEEDLE ASSY,L-2.0C-DJ
N-7204906	ASSY,NOZZLE,.006,STINGER,DJ
N-7231101-18	NEEDLE ASSY,S-3.2C-DJ
N-210734-2	SEAT,C TYPE,0.25MM(.010 IN)
N-62-0141-00	ASSY,RECEIVER HEAD,2.5/6 OZ
7209895	CAMERA,GIGA-E,NO S/W LICENSE
N-7201384-51	NOZZLE,UNITIZED,F2 TYPE,30-10
N-7201384-56	NOZZLE,UNITIZED,F2 TYPE,30-6
N-7213850-56	NOZZLE,UNITIZED,C-TYPE,30-6
7213850-51	NOZZLE,UNITIZED,C-TYPE,.030-.010
N-7213850-44	NOZZLE,UNITIZED,C-TYPE,.015-.004
N-7213850-23	NOZZLE,UNITIZED,C TYPE,8-3
N-210753-6	NOZZLE,LOW VOL-DJ-9000,.150
N-210753-10	NOZZLE,LOW VOL-DJ-9000,.250
N-7200580-15	NEEDLE,ASSY,2.00MM TIP-DJ-9000
N-7200580-18	NEEDLE,ASSY,3.20MM TIP-DJ-9000
N-7200580-25	NEEDLE ASSY,2.00MM,LONG
N-7212730-28	NEEDLE ASSY,L-3.2C-DJ
N-7212313	ASSY,STROKE ADJUST,DETENT,5CL
N-199512	SEAL ROD-DJ-9000
N-7200581	SEAL,PEAK,.313X .125
N-7205830	ASSY,CN MECH HEIGHT SENSOR
N-955055	SEAL,FLUOROLOY G,.313X.125
N-7214880	ASSY,CHAMBER FLUID STATIC,DJ95
N-7231101-26	NEEDLE ASSY,L-2.4C-DJ
N-7265000	ASSY,THERMAL CONTROL
N-7200578	O-RING,.22"ID X .032"CS,70EP
N-210734-3	SEAT,C TYPE,.38MM(.015IN)
N-SA-635-C	ASSY,SYRINGE 35CC,CLR
N-210765	ASSY,FEED TUBE,FLUID,PKG-50
N-7222978	ASSY,VALVE,3-WAY,DJ-9500
N-7204302	BRUSH,BEARING,PKG/50,DJ-9000
7201384-12	NOZZLE,UNITIZED,6-2,SEAT 0.15mm(0.006in),NOZZLEE 0.050mm(0.002in)
7201384-13	NOZZLE,UNITIZED,6-3,SEAT 0.15mm(0.006in),NOZZLEE 0.075mm(0.003in)
7201384-23	NOZZLE,UNITIZED,8-3,SEAT 0.20mm(0.008in),NOZZLEE 0.075mm(0.003in)
7201384-24	NOZZLE,UNITIZED,8-4,SEAT 0.20mm(0.008in),NOZZLEE 0.100mm(0.004in)
7201384-34	NOZZLE,UNITIZED,10-4,SEAT 0.25mm(0.010in),NOZZLEE 0.100mm(0.004in)
7201384-35	NOZZLE,UNITIZED,10-5,SEAT 0.25mm(0.010in),NOZZLEE 0.125mm(0.005in)
7201384-44	NOZZLE,UNITIZED,15-4,SEAT 0.38mm(0.015in),NOZZLEE 0.100mm(0.004in)
7201384-45	NOZZLE,UNITIZED,15-5,SEAT 0.38mm(0.015in),NOZZLEE 0.125mm(0.005in)
7201384-51	NOZZLE,UNITIZED,30-10,SEAT 0.75mm(0.030in),NOZZLEE 0.250mm(0.010in)
7201384-56	NOZZLE,UNITIZED,30-6,SEAT 0.75mm(0.030in),NOZZLEE 0.150mm(0.006in)
7201384-58	NOZZLE,UNITIZED,30-8,SEAT 0.75mm(0.030in),NOZZLEE 0.200mm(0.008in)
7212730-23	NEEDLE ASSSY,CL TYPE,1.3mm(0.005in)
7212730-24	NEEDLE ASSSY,CL TYPE,1.6mm(0.063in)
7212730-25	NEEDLE ASSSY,CL TYPE,2.0mm(0.079in)
7212730-26	NEEDLE ASSSY,CL TYPE,2.4mm(0.094in)
7212730-28	NEEDLE ASSSY,CL TYPE,3.2mm(0.125in)
7212730-42	NEEDLE ASSSY,CL TYPE,4.0mm(0.157in)
7212730-44	NEEDLE ASSSY,CL TYPE,4.8mm(0.189in)
7212730-46	NEEDLE ASSSY,CL TYPE,5.5mm(0.216in)
7212730-48	NEEDLE ASSSY,CL TYPE,6.4mm(0.252in)
