Asymtek DJ-9500 210765/56-78-85-100MM ASSY, FEED TUBE, FLUID, PKG-50PCS

Name: Asymtek DJ-9500 210765/56-78-85-100MM ASSY, FEED TUBE, FLUID, PKG-50PCS
Brand: Ping You Industrial Co.,Ltd
SKU: 210765
Price: 7,499.50 USD
Availability: InStock

Product Details

Place of Origin: USA

Brand Name: Asymtek

Certification: CE,ISO

Model Number: 210765

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Standard Packaging

Delivery Time: 1-2days

Payment Terms: L/C, D/A, D/P

Supply Ability: Long-time

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                    210765/56-78-85-100MM ASSY, Asymtek DJ-9500 FEED TUBE, 210765/56-78-85-100MM ASSY FEED TUBE


Condition:	Original New	Speed:	High-Speed
Stock:	With Stocks	Quality:	Excellent
Precision:	High-precision	Part Number:	210765

Condition:	Original New
Speed:	High-Speed
Stock:	With Stocks
Quality:	Excellent
Precision:	High-precision
Part Number:	210765

Product Description

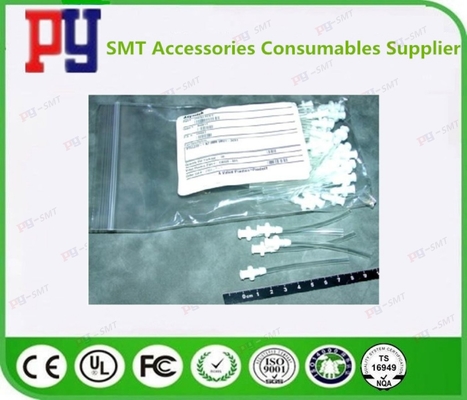

Asymtek DJ-9500 210765/56-78-85-100MM ASSY, FEED TUBE, FLUID, PKG-50PCS.

Asymtek DJ-9500 210765/56-78-85-100MM ASSY, FEED TUBE, FLUID, PKG-50PCS 0

Others:

Item No	Part No	Description
1	7212313	ASSY,STROKE ADJST,DETENT,5 CL
2	7212318	ASSY,STROKE ADJST,DETENT,1 CL
3	See Table 8-1	ASSY.NEEDLE
4	199512	SEAL,ROD
5	7212285	SLEEVE,LOCK,.8MM P
6	7204263	O-RING,M1.5X20.EP
7	49-3212	SCREW,M3-.5 PH FLAT X12,SS
8	7212277	MUFFLER PLATE,DJ-9500
9	7212301	O-RING,#025.VITON
10	7212275	BRACKET,DOVETAIL,DJ-9500
11	7200578	O-RING,.22"ID,X.032"CS,70EP
12	7214861	ISOLATOR,DOVE TAIL,DJ-9500
13	7214811	ASSY,JET BODY,REAR,DJ-9500
14	7217671	COLLAR,TORQUE
15	7200581	SEAL,PEEK,.313X.125
16	955055	SEAL,FLUOROLOY G,.313X.125
17	7214879	RING,CLAMP DIAPHRAGM-DJ-9500
18	7204273	SEAL,STATIC
19	7214850	ASSY,CHAMBER FL O-RING,DJ-9500
20	7214852	ASSY,STATIC CH O-RING,DJ-9500
21	7214843	ASSY,CHAMBER,FLUID
22	7214880	ASSY,CHAMBER FLUID STATIC,DJ-9500
23	7216505	O-RING,.22:IDX.032CS,70VT
24	See Table 8-1	NOZZLE,UNT=ITIZED
25	See Table 8-1	SEAT,ACTIVE
26	See Table 8-1	NOZZLE.ACTIVE
27	See Table 8-1	SEAT,STANDARD
28	See Table 8-1	NOZZLE,STANDARD
29	7225379	ASSY,THERMAL CONTROL
30	7214808	O-RING,-008,EPDM
31	194424	O-RING,020,VITON
32	7222978	ASSY,VALVE,3-WAY
33	7214821	ASSY,J-BOX,DJ-9500,W CLAMP
34	7214840	ASSY,J-BOX,BODY HEATER,DJ-9500
35	7214890	ASSY,J-BOX,NO-HEAT,DJ-9500
36	49-3330	SCREW,M3X.05,COSKET CAP X30
36	49-3330	(Torque to 12in-ibs)
37	7212295	DRAW PLATE HEAT EX,DJ-9500
38	48-9930	CAM RELEASE MECHANISM
	7212288	PIN.DOWEL,.125 X.438LG
	7212292	CAM,HEAT EX,DJ-9500
	7212293	ADJ PLATE HEAT EX,DJ-9500
	985432	LINKAGE HEAT EX,DJ-9500
	7212305	PIN,DOWEL,.125 X.625,H&G
	7212291	SPRING,OD.3,W.0051,FH.625SS
	493208	SHCS,M5X0.8X30MM
		HANDLE,HEAT EX,DJ-9500
		SCREW,M3 X.05PH,FLAT X8
39	7212290	COVER,HEAT EX,DJ-9500
40	7214865	SCREW,BUTTON BOX,DJ-9500
41	7214863	COVER,JUNCTION BOX,DJ-9500
42	49-3206	SCREW,M3X.05 FLAT
43	03-0639-00	CLIP,30CC
44	7214869	CLIP,6OZ,DJ-9500
45	49-3306	SCREW,D M4X6,SS,SOC HEAD
46	7201394	HOLDER,SYRINGE
47	7201407	HOLDER,SYRINGE,30CC
48	49-3208	SCREW,M3X.05PH,FLSTX8
49	210765	ASSY,FEED TUBE,FLUID
50	7214827	BODY,HEAT EX,DJ-9500 1CC,LUER
51	7214828	BODY,HEAT EX,DJ-9500 3CC,1/4NPT

N-7214843	ASSY,CHAMBER FLUID,DJ-9500
N-7212730-25	NEEDLE ASSY,L-2.0C-DJ
N-7204906	ASSY,NOZZLE,.006,STINGER,DJ
N-7231101-18	NEEDLE ASSY,S-3.2C-DJ
N-210734-2	SEAT,C TYPE,0.25MM(.010 IN)
N-62-0141-00	ASSY,RECEIVER HEAD,2.5/6 OZ
7209895	CAMERA,GIGA-E,NO S/W LICENSE
N-7201384-51	NOZZLE,UNITIZED,F2 TYPE,30-10
N-7201384-56	NOZZLE,UNITIZED,F2 TYPE,30-6
N-7213850-56	NOZZLE,UNITIZED,C-TYPE,30-6
7213850-51	NOZZLE,UNITIZED,C-TYPE,.030-.010
N-7213850-44	NOZZLE,UNITIZED,C-TYPE,.015-.004
N-7213850-23	NOZZLE,UNITIZED,C TYPE,8-3
N-210753-6	NOZZLE,LOW VOL-DJ-9000,.150
N-210753-10	NOZZLE,LOW VOL-DJ-9000,.250
N-7200580-15	NEEDLE,ASSY,2.00MM TIP-DJ-9000
N-7200580-18	NEEDLE,ASSY,3.20MM TIP-DJ-9000
N-7200580-25	NEEDLE ASSY,2.00MM,LONG
N-7212730-28	NEEDLE ASSY,L-3.2C-DJ
N-7212313	ASSY,STROKE ADJUST,DETENT,5CL
N-199512	SEAL ROD-DJ-9000
N-7200581	SEAL,PEAK,.313X .125
N-7205830	ASSY,CN MECH HEIGHT SENSOR
N-955055	SEAL,FLUOROLOY G,.313X.125
N-7214880	ASSY,CHAMBER FLUID STATIC,DJ95
N-7231101-26	NEEDLE ASSY,L-2.4C-DJ
N-7265000	ASSY,THERMAL CONTROL
N-7200578	O-RING,.22"ID X .032"CS,70EP
N-210734-3	SEAT,C TYPE,.38MM(.015IN)
N-SA-635-C	ASSY,SYRINGE 35CC,CLR
N-210765	ASSY,FEED TUBE,FLUID,PKG-50
N-7222978	ASSY,VALVE,3-WAY,DJ-9500
N-7204302	BRUSH,BEARING,PKG/50,DJ-9000
7201384-12	NOZZLE,UNITIZED,6-2,SEAT 0.15mm(0.006in),NOZZLEE 0.050mm(0.002in)
7201384-13	NOZZLE,UNITIZED,6-3,SEAT 0.15mm(0.006in),NOZZLEE 0.075mm(0.003in)
7201384-23	NOZZLE,UNITIZED,8-3,SEAT 0.20mm(0.008in),NOZZLEE 0.075mm(0.003in)
7201384-24	NOZZLE,UNITIZED,8-4,SEAT 0.20mm(0.008in),NOZZLEE 0.100mm(0.004in)
7201384-34	NOZZLE,UNITIZED,10-4,SEAT 0.25mm(0.010in),NOZZLEE 0.100mm(0.004in)
7201384-35	NOZZLE,UNITIZED,10-5,SEAT 0.25mm(0.010in),NOZZLEE 0.125mm(0.005in)
7201384-44	NOZZLE,UNITIZED,15-4,SEAT 0.38mm(0.015in),NOZZLEE 0.100mm(0.004in)
7201384-45	NOZZLE,UNITIZED,15-5,SEAT 0.38mm(0.015in),NOZZLEE 0.125mm(0.005in)
7201384-51	NOZZLE,UNITIZED,30-10,SEAT 0.75mm(0.030in),NOZZLEE 0.250mm(0.010in)
7201384-56	NOZZLE,UNITIZED,30-6,SEAT 0.75mm(0.030in),NOZZLEE 0.150mm(0.006in)
7201384-58	NOZZLE,UNITIZED,30-8,SEAT 0.75mm(0.030in),NOZZLEE 0.200mm(0.008in)
7212730-23	NEEDLE ASSSY,CL TYPE,1.3mm(0.005in)
7212730-24	NEEDLE ASSSY,CL TYPE,1.6mm(0.063in)
7212730-25	NEEDLE ASSSY,CL TYPE,2.0mm(0.079in)
7212730-26	NEEDLE ASSSY,CL TYPE,2.4mm(0.094in)
7212730-28	NEEDLE ASSSY,CL TYPE,3.2mm(0.125in)
7212730-42	NEEDLE ASSSY,CL TYPE,4.0mm(0.157in)
7212730-44	NEEDLE ASSSY,CL TYPE,4.8mm(0.189in)
7212730-46	NEEDLE ASSSY,CL TYPE,5.5mm(0.216in)
7212730-48	NEEDLE ASSSY,CL TYPE,6.4mm(0.252in)
