16 Nozzle Head Unit SMT Machine Spare Parts N610102220AA For Panasonic Mounter

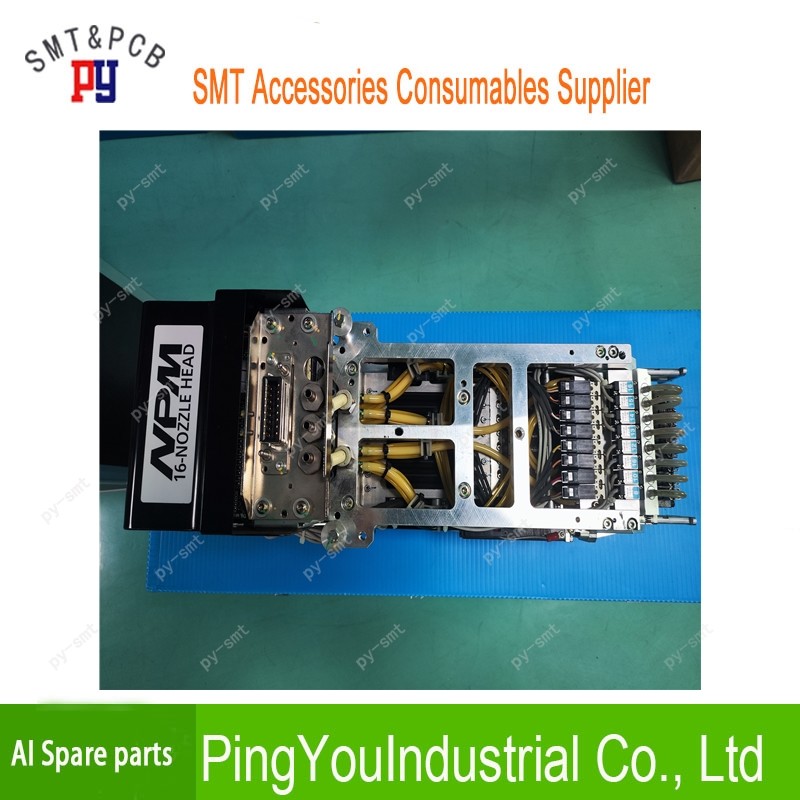

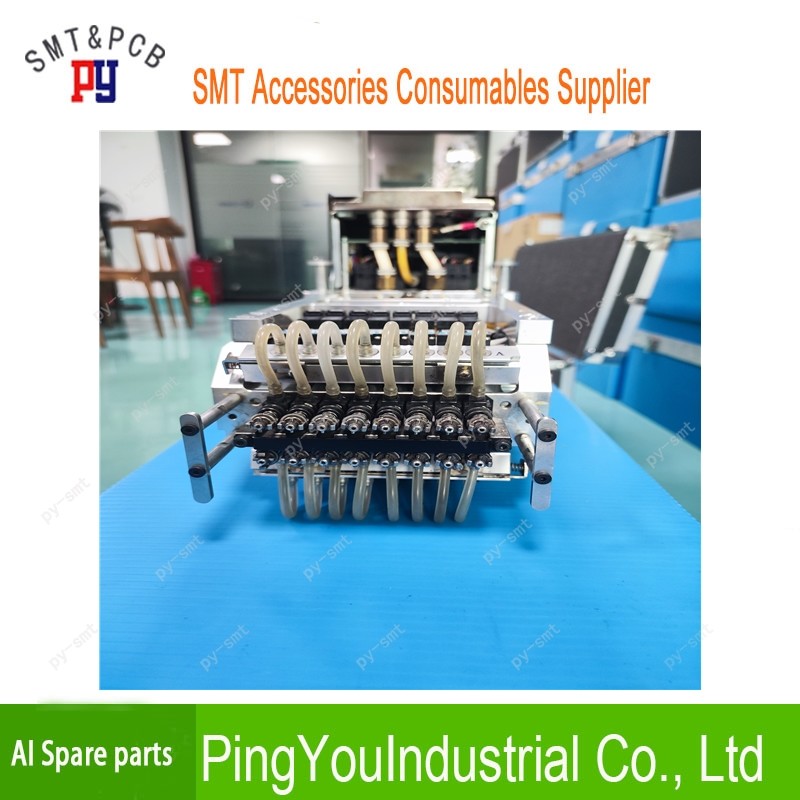

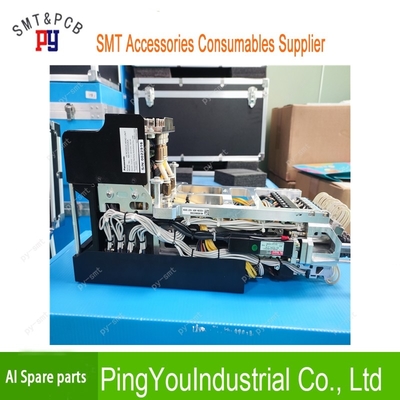

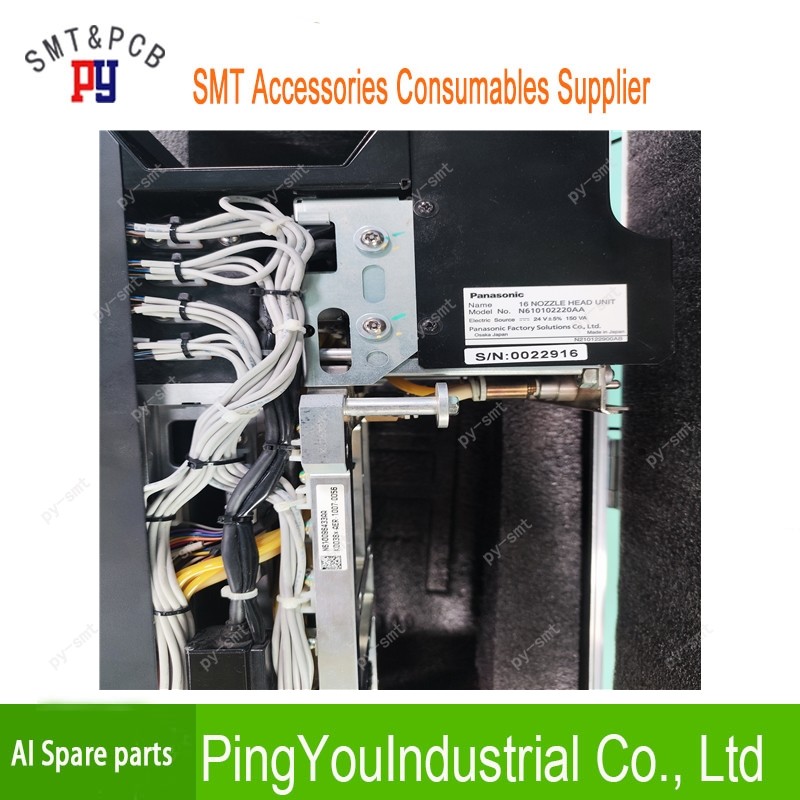

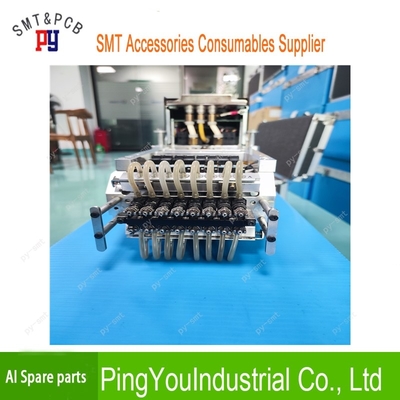

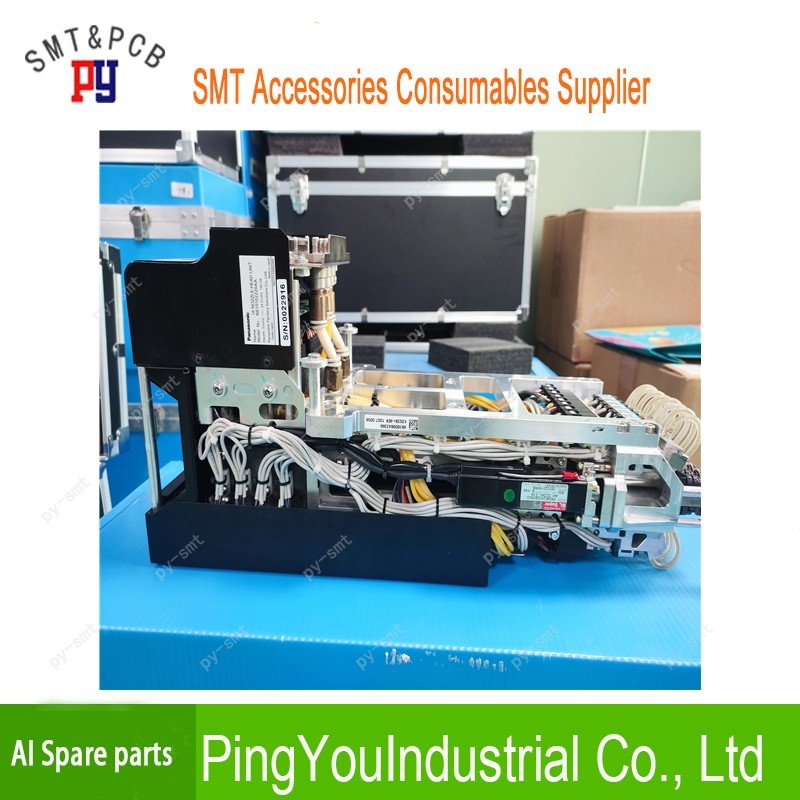

16 nozzle head unit N610102220AA (Same as N610160078AA) 1for Panasonic mounter machine

We are a professional supplier of SMT machine spare parts, a large inventory of original parts, we are also an independent research and development manufacturer,we specialize in this field for many years, with good quality and pretty competitive price. If you need other parts than the list, please contact me.Thank you

1 N210109236AA STOPPER 8

2 N210130097AB PLATE 2

3 N210133963AA PLATE 2

4 N210130100AB HOUSING 4

5 N210118272AA WASHER 4

6 N210134644AB SHAFT 1

7 N210077946AA STOPPER 1

8 N210137789AB GUIDE 1

9 N210137790AB BRACKET 1

10 N210134661AA DOG 1

11 N610110947AA BRACKET 2

12 N610110952AB BRACKET(F) 1

13 N610111668AC X-BEAM( R ) 1

14 N610110954AB X-PLATE( R ) 1

15 N610110955AB BRACKET( R ) 1

16 N510044825AA SPACER 3382330-40075 8

17 N510047200AA SPRING SSWB12-20 8

18 N510017457AA BOLT Hexagon socket head cap screw M6X8-10.9 A2J (Trivalent) 4

19 N510055040AA SPRING SSWM18-20 4

20 N510031255AA WASHER TT-0818-05 4

21 N510055041AA COLLAR 87NCLBH4-8-21.0 4

22 N510055042AA COLLAR 87NCLBH5-16-3.5 4

23 XXF12C45FT SCREW Hexagon socket set screw Flat point M12X45-45H SOB 1

24 N510027223AA WASHER Round finish plain washer (JIS B 1256:1978) 12 10H A2J (Trivalent) 1

25 N510046390AA NUT U-nut M12 SK5 Type-2 S45C Trivalent chromate(white) 1

1 N610112730AA XY-Axis Front Side Wiring:NPM

2 N610112731AA XY-Axis Rear Side Wiring:NPM

1 N210130128AC PLATE 2

2 N210077946AA STOPPER 4

3 N210097302AA POST 6

4 N210141785AA POST 4

5 N210133007AA COVER 6

6 N210109439AA PIECE 8

7 N210137246AA SHEET 2

8 N210130130AB BRACKET 2

9 N210105536AA BRACKET 2

10 N210136907AA BRACKET 4

11 N210136906AA PLATE 2

12 N210136905AB PLATE 2

13 N610110930AB Y-BEAM 1

14 N510055993AA LINEAR-WAY SHS30LV4QZUUC1S+2280LH(00042206C000) 1

15 N510054905AA LINEAR-SCALE ST773A-1900PF 1

16 N510055030AA MOTOR DS045M448B01 10 S

17 N510018282AA SCREW Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent) 24

18 N510027223AA WASHER Round finish plain washer (JIS B 1256:1978) 12 10H A2J (Trivalent) 4

19 N510056624AA SCREW Hexagon socket set screw Flat point M12X60-45H A2J (Trivalent) 4

20 N431KQ2L04M6 JOINT KQ2L04-M6 4

21 XXE6D6FT SCREW Hexagon socket set screw Cup point M6X6-45H SOB 8

22 N510045098AA BOLT Hexagon socket head cap screw M8X25-10.9 A2J (Trivalent) (MEC process 8

23 N510029211AA SPRING-PIN 1017003-60016 4

24 N510017189AA BOLT Hexagon socket head cap screw M12X30-10.9 A2J (Trivalent) 10

25 N510017190AA BOLT Hexagon socket head cap screw M12X35-10.9 A2J (Trivalent) 7

26 N510006098AA PIN 1017003-40010 3

27 N510017627AA BOLT Hexagon socket Flat head bolt M4X6-10.9 A2J (Trivalent) 4

28 N510000315AA BOLT SSS 003 Hexagon socket button head screw M3X4-12.9 SOB 8

1 N210133006AB SHEET 4

2 N210136891AB PLATE 2

3 N210133013AC BRACKET 1

4 N210134413AA PLATE 2

5 N210136889AC BRACKET 1

6 N210136890AC BRACKET 1

7 N210135245AA PLATE 1

8 N210089385AA BRACKET 1

9 KXFB0323A00 BRACKET 2

10 N510055029AA MOTOR DD4045C4A1AA40G 2 S

11 KXF077MAA00 FAN-GUARD 109-019E 1 S

12 KXF0DZ81A00 JOINT KQ2L06-00 4

13 KXF0E1M0A00 JOINT KQ2L08-00 4

14 N510029512AA SPACER ASF-415E 4

15 N610074419AA FAN 1 S

16 N610112730AA XY-Axis Front Side Wiring:NPMD

17 N610112731AA XY-Axis Rear Side Wiring:NPMD

1 N510046375AA LABEL PL51T

2 N510040879AA LABEL PC013801

1 N510046375AA LABEL PL51T

2 N510040879AA LABEL PC013801

1 N610112763AA PCB 2 S

2 J0KG00000014 NOISE-FILTER ZCAT3035-1330 6 S

3 KXFP6GNSA00 SHIELD FGC-8-M4

4 N510044950AA NOISE-FILTER E04SR150718

1 N210067363AA BRACKET 1

2 N510027781AA LENS OKP-46X 1

3 N510029003AA CAMERA CSCX30BC3-10

1 N610054441AA Coaxial White LED Lighit Unit Board 1 S

2 N610054436AA Side LED Lighit Unit Board (White/Red) 1 S

3 N210081493AB PLATE 1

4 N210074890AC PLATE 1

5 N210083580AC COVER 1

6 N510037359AA SPACER ARU-2607S 2

7 N510028677AA SPACER ASB-2506E 4

8 N510037361AA SCREW Cross recessed Pan head machine screw M2.6X4-4.8 A2J (Trivalent) 6

9 N510017245AA BOLT Hexagon socket head cap screw M2.5X5-10.9 A2J (Trivalent) 4

10 N510018226AA SCREW Cross recessed Truss head machine screw M2.5X5-4.8 A2J (Trivalent) 4
