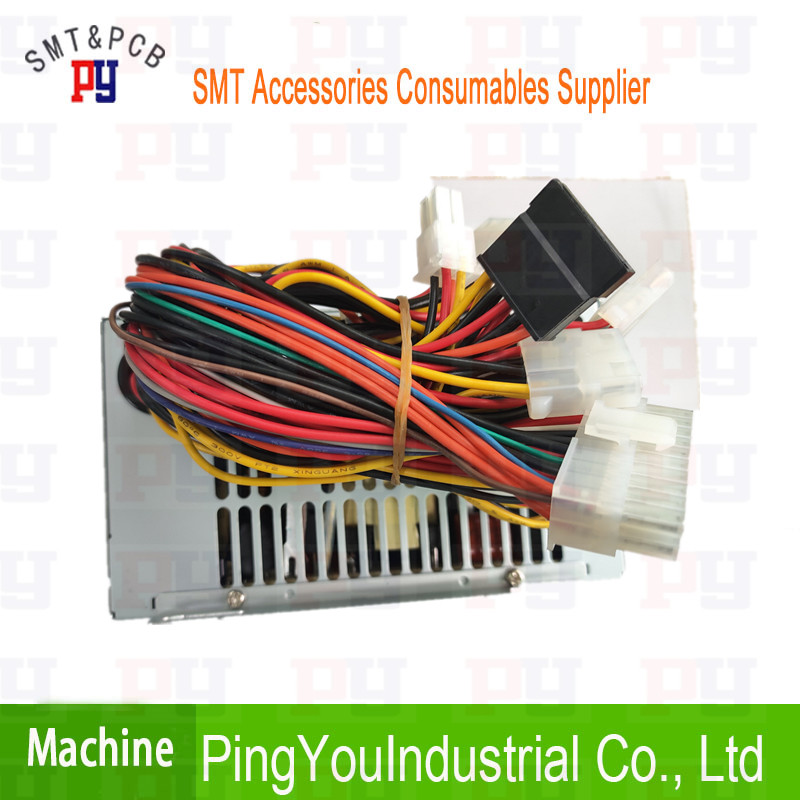

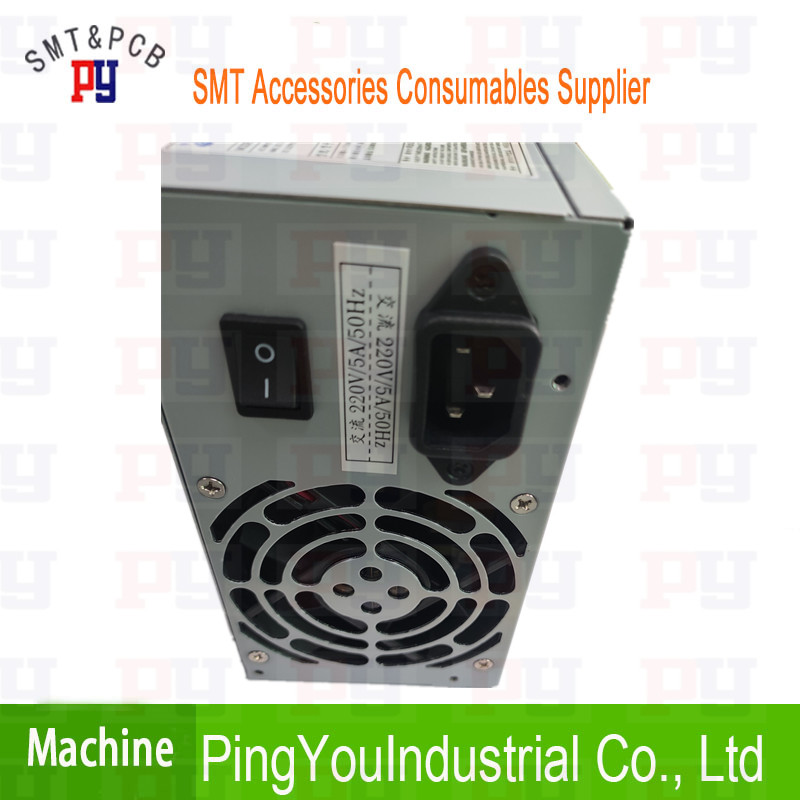

FSP300-60ATV ( PF ) SMT Machine Parts Automatic Switching Power Supply 220V

FSP300-60ATV(PF) switching power supply smt machine parts smt pick and place equipment

FSP ATX3500-65PA FSP250-60PNA FSP260-60SLV FSP230-60SLV FSP350-60THN-P FSP550-60PLN FSP550-63PLN FSP350-701U etc.
FSP250-60PFN FSP300-60PFN has long been discontinued, completely replaced by FSP400-60PFN.
FSP250-0PFN(12V) FSP300-60PFN(12V) FSP400-60PFN FSP SPI
The FSP400-60PFN power interface outlets are as follows:
20P with -5V 1
CPU4P 1
IDE 6
sata 2
Floppy drive interface 1
Special industrial control P6 1
1 special transformation interface
FSP300-60PFG FSP400-60PFG FSP250-60PFN FSP300-60PFN FSP400-60PFN HG2-6350P HG2-6400P These 7 models of power supplies are common to each other FSP Industrial Computer ATX power supply 80Plus (Bronze) Desktop power supply Workstation power switch power supply switching power supply Power Supply DC Power Supply AC Power Monitoring Power Firewall Power Switch Power Storage Cabinet Power Disk Array Cabinet Power Supply Power Adapter, etc. SPI FSP FSP Industrial Power Supply
FSP250-60PFV(12V)|FSP300-60PFV(12V) FSP full line power supply
Industrial Control *** Power Supply Rated 300W Direct Blowing Fan

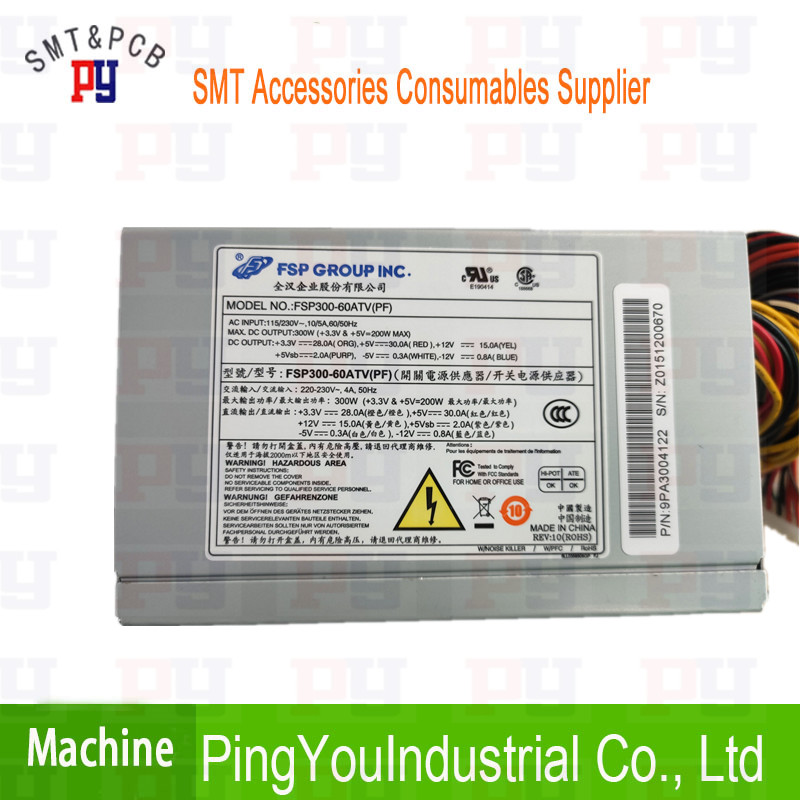

Main parameters of FSP300-60ATV(PF)
Applicable type: industrial computer/desktop
Model FSP300-60ATV(PF)
Power standard ATX
Rated power 300W
Applicable CPU range Support INTEL and AMD full series CPU
Certification specifications 3C certification TUV CE UL etc.
ATV Product Description
Dimensions: 140 x 150 x 86mm
Application system: industrial computer
Wattage: 300W
PFC: Active
safety function
feature of product
• High efficiency
• Low ripple & noise
• Resettable power shut down
• Internal 8 cm fan (GLC), 12 cm fan (GLN)
• *** burn-in test
• MTBF: 100K hours at 25°C
product specification
Input Specifications
• Voltage:
100-240VAC
• Frequency: 47Hz to 63Hz
Protection Specifications
• Over-voltage protection: +5V, +3.3V, +12V1, +12V2
• Over-current protection +5V, +3.3V, +12V1, +12V2
• Short circuit protection
General Specifications
• Efficiency: 75% min. at full load
Environmental Specifications
• Operating conditions:
ambient temperature 0°C~50°C, 5~95% RH
• Storage and
Shipping conditions: ambient temperature -20°C~80°C, 5~95% RH
output

Model Watts
Outputs
+3.3V +5V +12V1 +12V2 +12V3 -5V -12V +5Vsb
FSP300-60atv(pf) 300W 28A 30A 15A - 0.3A 0.8A 2.0A
FSP350-60GLC 350W 22A 21A 10A 15A - - 0.5A 2.5A
FSP400-60GLC 400W 30A 30A 14A 15A - - 0.5A 2.5A
FSP460-60GLC 460W 30A 30A 16A 18A - - 0.5A 2.5A
FSP500-60GLC 500W 30A 30A 18A 18A - - 0.5A 2.5A
FSP500-60GLN 500W 30A 30A 18A 18A - - 0.5A 2.5A
