Lead Free SMT Reflow Oven Equipment Thermal Profile KIC K2 Smart Profiling Profiler

SMT Reflow Oven Equipment Thermal Profile KIC K2 Smart Profiling Profiler

Conveniently view and share reflow oven thermal profiles on mobile devices

New Generation Mid-Range Profile Setter

New generation profile setter replaces the last of KIC’s older technology profilers

Competitively priced for the mid-range market

Compact and Robust Hardware

The K² will fit through the tight heated chambers often found in lead-free production

7 TC unit dimensions:

206 x 60 x 17 (mm)

Shield: 302 x 75 x 23 (mm)

9 TC unit dimensions

206 x 75 x 17 (mm)

Shield: 312 x 90 x 23 (mm)

Durable hardware designed to withstand rough production environments

Fail-Safe Operation

Automatic start when temperatures are below a specified ‘start’ trigger, protecting the K² and assuring consistent starting points and repeatable profiles

Hardware designed for accurate measurements

Engineer sets quality and productivity related parameters:

PWI level

Minimum/maximum allowable conveyor speed

Maximum peak temperature,etc.

For use by reflow oven operators, technicians and engineers who need a reflow oven thermal profile

Reflow Oven Setup Software

KIC’s optimization software does a complete search for all possible combinations of oven zone temperatures and conveyor speeds. It selects the very best oven setup for each new product within seconds

User selectable setup criteria focuses on positioning the profile towards:

the center of the process window

maximum conveyor speed

minimum oven electricity usage

Instant and Objective Profile Analysis

KIC’s famous Process Window Index (PWI) explains how the profile fits the established process window, with a single number:

PWI above 100 = profile out of spec

PWI at 100 = profile right on the spec limit

PWI below 100 = profile in spec

PWI at 0 = the exact center of the process window

Immediate profile analysis

Objective and personnel-independent profile analysis

Outlying profile data made visible

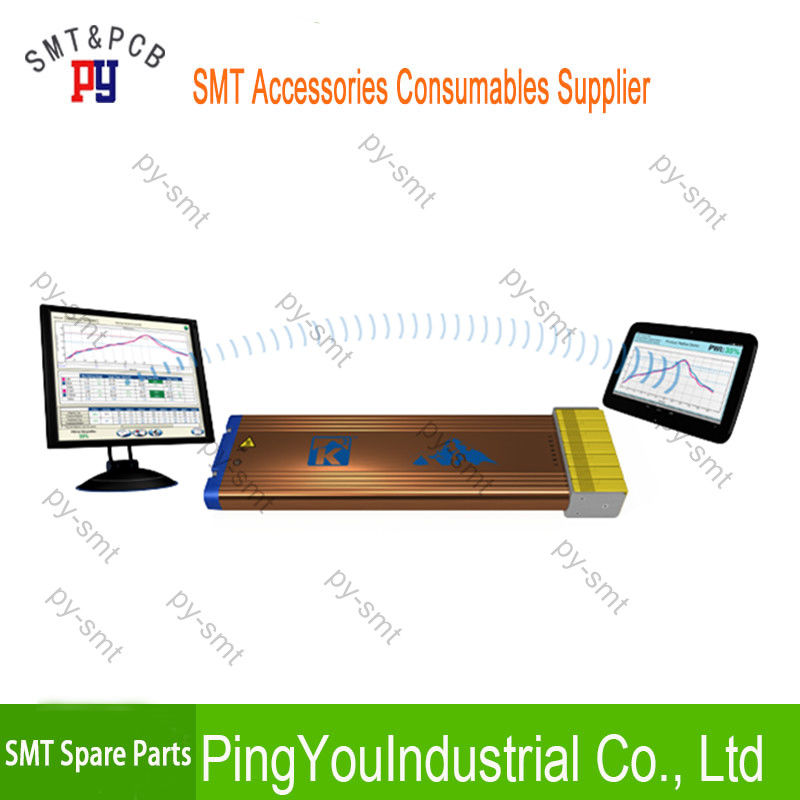

Accessing the K² Profile Data on the PC or Mobile Device

The profile data can be displayed in two ways:

On the oven PC or profiling PC

On an Authorized Android mobile device

Convenient sharing function for selected profile data

Datalogger Model: data are downloaded to the computer through a USB cable after the run

KIC’s Mobile Profile Viewer is WiFi
and Bluetooth compatible.

Note: The KIC software may interface directly with some oven controllers, eliminating the need for manual setpoint data entry. Please consult your oven supplier for availability. The KIC software is dongle protected.

Profiling Reduced to a Single Number

The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process! (See the PWI data sheet for a detailed explanation)

Maximum endurance in minutes at specified temperature

K² Kit Contents

• Profile Setter
• Thermal Shield
• Software CD
• Software Protection Dongle
• USB Cable (A Male/Mini-B)
• AAA Batteries (6)
• Scissors

• Thermocouples
• Carrying Case
• Electronic User Manual
• Electronic Hardware Guide
• Gloves
• Getting Started Guide
• Calibration Certificate
