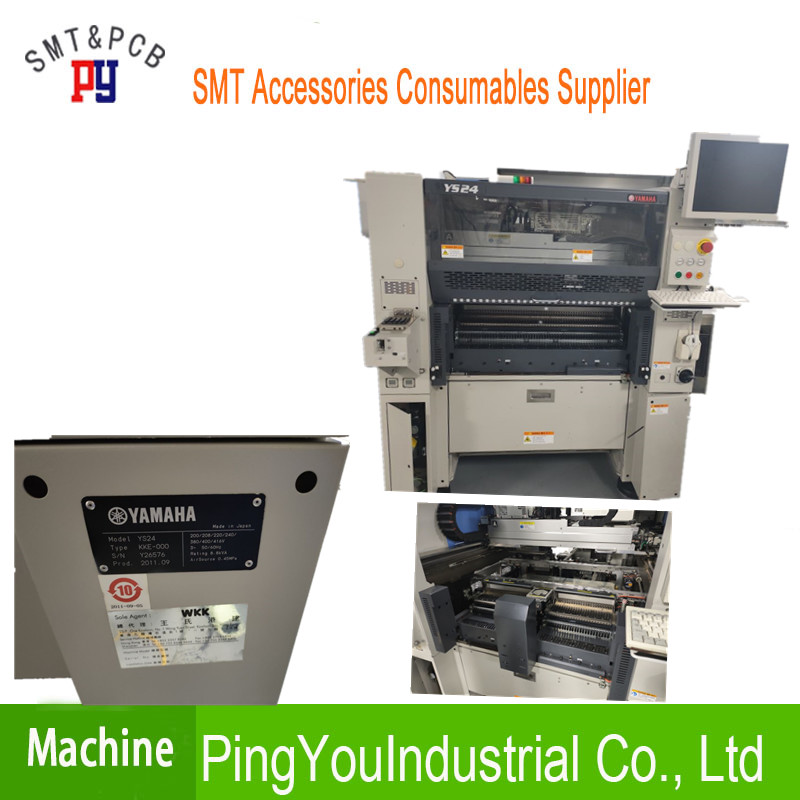

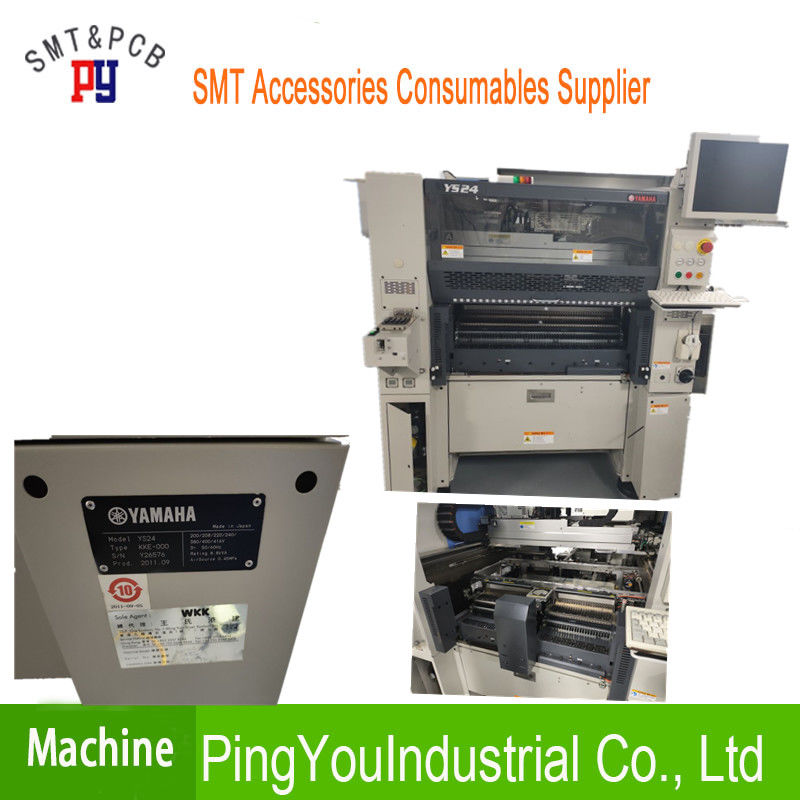

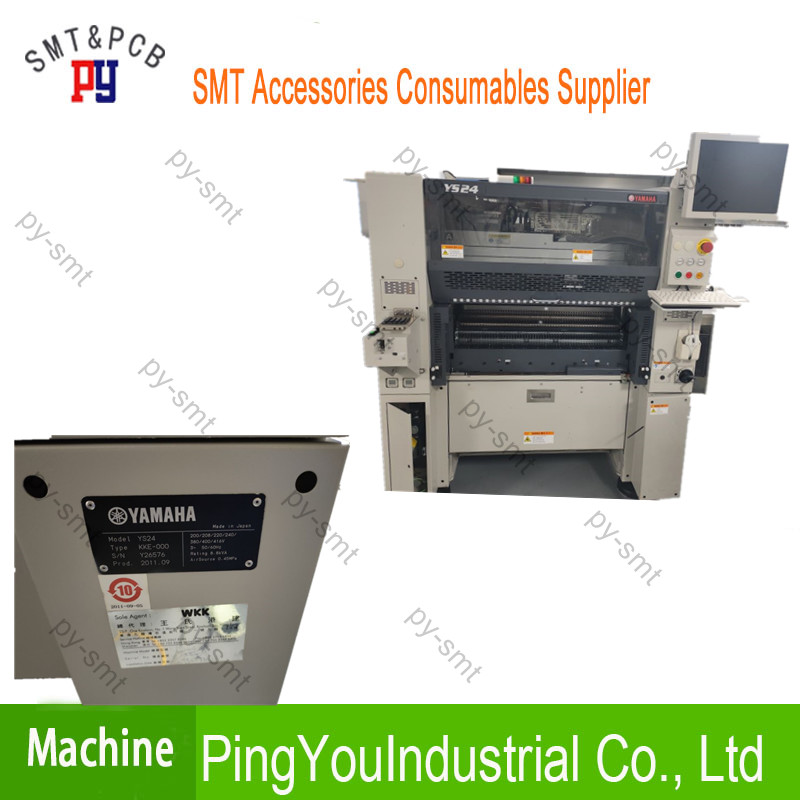

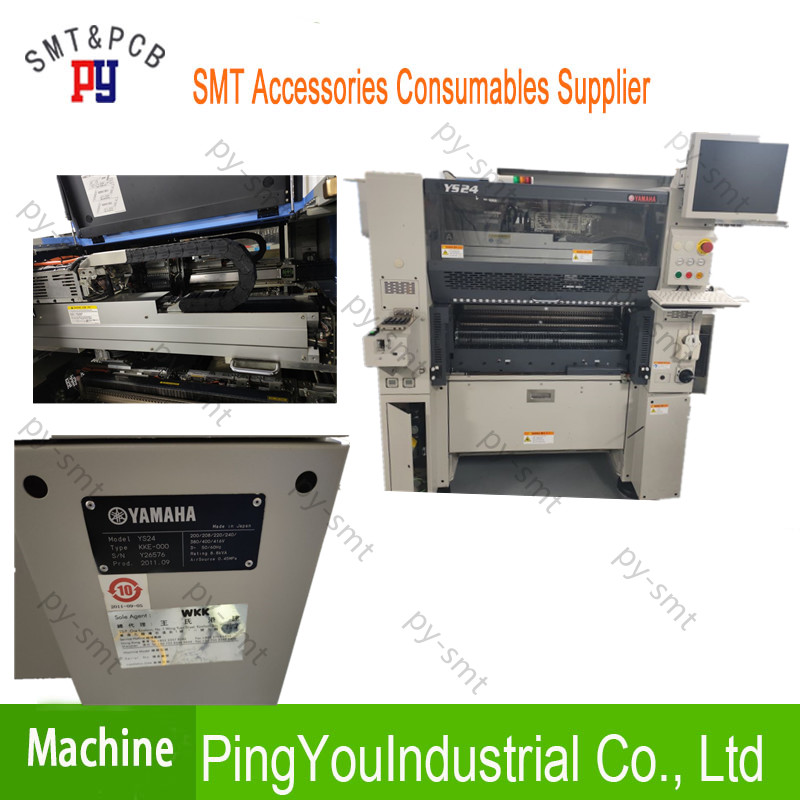

YS24 Compact Super High Speed Modular Machine , Smt Pcb Assembly Equipment KKE-000

YS24 Compact Super-High-Speed Modular Machine KKE-000 Smt Pcb Assembly Equipment

YS24 Compact Super-High-Speed Modular Machine KKE-000 Smt Pcb Assembly Equipment

Yamaha YS24 Series Mounter is divided into Yamaha YS24 and

Yamaha YS24X models,

Yamaha YS24/YS24X supports L700×W460mm ultra large substrates

Yamaha's unique dual placement table, dual rail system.

YS24 production per unit area of 340,000 CPH / square meter.

72,000CPH (0.05sec/CHIP)

Excellent mounting capability

Newly developed "Dual Stage Conveyor" 34kCPH/㎡

Area-productivity, top class in the world

L700 x W460mm Super large PCB applicable

YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm

Components applicable

72,000CPH (0.05sec/CHIP)

Excellent mounting capability

Newly developed "Dual Stage Conveyor" 34kCPH/㎡

Area-productivity, top class in the world

L700 x W460mm Super large PCB applicable

YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm

Components applicable

Model YAMAHA YS24

Applicable PCB L50xW50mm –to L700xW460mm

Mounting accuracy +/-0.05mm ( + 3), +/-0.03mm (3)

Speed 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

Applicable components

0402 to 32x32mm MAX (Height 6.5mm or less)

Component Types

120 types (Max./8mm wide tape reel conversion)

Power supply

Three phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source

0.45MPa

External dimension

L1,254x W1,687x H1,445mm (Excluding protrusions)

Weight

Approx. 1,700kg

KLA-M5840-04 SERVO BOARD ASSY 1

2 KLA-M5840-15 SERVO BOARD ASSY 1

3 KLA-M5880-02 D.POWER UNIT ASSY 1

4 KLA-M11B0-01 LABEL,CONTROLLER 1

5 90K41-001390 LABEL,WARNING 1

6 KLW-M4209-21 SYSTEM UNIT ASSY 1

7 KLW-M4530-00 REMOTE IF BOARD ASSY 1 YSM40R-4

KLW-M4530-10 REMOTE IF BOARD ASSY 1 YSM40R-2

8 KLA-M441H-20 VISION BOARD ASSY 2

9 KLA-M4510-01 MOTHER BOARD ASSY 2

10 KLA-M4250-01 BACKPLANE BOARD ASSY 1

11 KLA-M4262-01 LABEL,CONTROLLER 1

12 97602-04308 SCREW,PAN HEAD W/W 12

13 90116-12JA10 SCREW,PAN HEAD W/W 2

14 90K41-001630 LABEL,CAUTION 1

15 KLA-M4255-10 FLASH DISK 4G 1

90172-00J040 WASHER, EXTL, TOOTHED 1

2 91312-04008 BOLT HEX,SOCKET HEAD 31

3 91312-06008 BOLT HEX,SOCKET HEAD 36

4 92902-04200 WASHER,PLAIN 2

5 KHJ-MK002-20 FEEDER-50 PLATE 2

6 KHJ-MK010-20 FRAME,REEL STAND 1 1

7 KHJ-MK011-20 GUIDE,PARTITION 2 1

8 KHJ-MK012-20 FRAME,REEL STAND 2 1

9 KHJ-MK013-20 MAIN FRAME 1 1

10 KHJ-MK014-20 MAIN FRAME 2 1

11 KHJ-MK015-20 MAIN FRAME 3 1

12 KHJ-MK016-20 MAIN FRAME 4 1

13 KHJ-MK017-20 MAIN FRAME 5 1

14 KHJ-MK018-20 MAIN FRAME 6 1

15 KHJ-MK019-20 PULL 2

16 KHJ-MK020-20 PARTITION 2 12

17 KHY-M373C-10 CHAIN 1

18 KHY-M374C-00 CASTER 2

19 KHY-M3R16-00 PARTITION 12

20 KM0-M3741-00 CASTER 63 2

KHJ-MD201-00 FEEDER PLATE 1

2 KHJ-MD202-00 SIDE PLATE, L 1

3 KHJ-MD203-00 SIDE PLATE, R 1

4 KHJ-MD204-00 CLAMP PLATE 1

5 KHJ-MD205-00 FEEDER STOPPER 1

6 KHJ-MD206-00 CONNECTOR PLATE 1

7 KHJ-MD207-00 UNDER COVER 1

8 KHJ-MD208-00 BACK COVER 1

9 KHJ-MD209-00 BASE PLATE 1

10 KHJ-MD210-00 FOOT 4

11 KJJ-M371R-000 RAIL GUIDE 16P 1

12 KHJ-MD212-00 BKT. SWITCH 1

13 KHJ-MD213-00 REEL HOLDER, FIX. 1

14 KHJ-MD214-00 REEL HOLDER, MOVE 1

15 KHJ-MD110-00 LABEL, PITCH 1

16 KHJ-M4484-02 FDR. ST. BOARD ASSY 1

17 KHJ-M4486-00 PITCH LED BOARD ASSY 1

18 KJ3-M6511-00 CIRCUIT PROTECTOR, 1 1

19 KHJ-M537A-00 NOISE FILTER 1

20 KHJ-M6561-10 POWER SUPPLY 1 1

21 KHJ-M661B-01 HNS, AC IN 2 1

22 KHJ-M662A-00 HNS, CP DC24V 1

23 KHJ-M662B-00 HNS, LAMP 1

24 KHJ-M662C-000 HNS, BRD.PWR 1

25 KHJ-M663C-00 HNS, PITCH UP 1

26 KHJ-M663D-00 HNS, PITCH DOWN 1

27 KHJ-M663E-00 HNS, PITCH SET 1

28 KHY-M66TE-00 HNS, F. CTRL-FDR. 1

29 KJ3-M662A-00 HNS, AC IN 1 1 Abroad parts

KJ3-M661A-00 HNS, AC IN 1 1 Domestis parts

30 KHJ-MD215-001 LABEL, SERIAL 1

31 KHA-M5184-11 SEAL, LABEL 1

32 KHY-M6417-00 SEAL, CE 1

33 KHY-M372M-00 SCREW, STAD 2

34 90563-03J100 SPACER BOLT 4

35 92902-03200 WASHER PLAIN 4

36 98902-03004 SCREW BINDING HEAD 4

37 98902-03005 SCREW BINDING HEAD 28

38 98902-04006 SCREW BINDING HEAD 10

39 98702-03006 SCREW FLAT HEAD 8

40 91312-03006 BOLT HEX. SOCKET HEAD 3 M3X8

41 91312-03008 BOLT HEX. SOCKET HEAD 4 M3X7

42 90990-11J003 SCREW, PAN HEAD W/W 16

43 $NK-3N NYLON CLIP 12

KLF-M3TD2-00 BLOCK,JOINT 1

2 KLF-M3TD6-00 DUCT,HNS. 1

3 KMB-M3TD7-00 COVER,HNS. 1

4 KLF-M3TDD-00 BUSH 2

5 KLF-M3TDE-00 POLY WASHER 0.5 4

6 KLF-M3TDF-00 STAND,CONNECTOR 2

7 KLF-M3TDG-00 COVER,FES CONN. 1

8 LC1-M91A1-00 CUSHION 2

9 $TSH4-M5M JOINT 4

10 KV8-M37S2-00 AIR SOCKET,2 ASSY. 3

11 KLF-M37S2-00 AIR SOCKET,3 ASSY. 1

12 $NK-2N NYLON CLIP 2

13 90990-41J151 COLLAR 1 2

14 KLF-M3TB1-01 UPPER COVER 1,46 1 Resin tape

15 KLF-M3TB5-00 UPPER COVER 2,46 1

16 91312-03014 BOLT,HEX.SOCKET HEAD 4 M3X14

17 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6

18 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X20

19 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16

20 90990-32J005 BOLT,FLANGE 2

21 90112-2AJ008 BOLT HEX.SOCKET HEAD 4

22 97602-04308 SCREW,PAN HEAD W/W 2

23 98902-03004 SCREW BINDING HEAD 3

24 92A08-03305 SCREW,SET 4

25 KLF-M3T75-00 STAY,RELAY 1

26 91312-04008 BOLT HEX.SOCKET HEAD 2

27 KMB-M3TD8-00 TAPE 1

KLF-M3T05-00 CUTTER,,UPPER 46 2

2 KLF-M3T06-01 PLATE,BASE3 1

3 KLF-M3T07-A0 CUTTER,LOWER 46 1

4 KLF-M3T08-00 BAR 2

5 KLF-M3T09-00 PLATE,4 46 1

6 KLF-M3T25-10 STAY,DAMPER HOLDER 1

7 KLF-M3T26-00 COVER,CUTTER 46 1

8 KLF-M3T77-02 STAY,CUTTER HNS. 1

9 KLF-M3T0N-02 COVER,M 46 1

10 KHY-M3T24-10 DAMPER STOPPER 1

11 90K72-6L0130 LM RAIL,20 3

12 90K80-020L00 LM BLOCK,HSR20-L 3

13 KHY-M3T23-00 DAMPER STAY 2 M18

14 KHY-M3T22-01 SHOCK ABSORBER 2 M18

15 KLF-M3T15-01 STAY,SIDE L 1

16 KLF-M3T15-11 STAY,SIDE R 1

17 KLF-M3TB2-00 STAY,SLOPE L 1

18 KLF-M3TB2-10 STAY,SLOPE R 1

19 $NK-2N NYLON CLIP 4

20 91312-04008 BOLT HEX.SOCKET HEAD 7 M4X8

21 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10

22 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10

23 91312-05012 BOLT HEX.SOCKET HEAD 7 M5X12

24 91312-05014 BOLT HEX.SOCKET HEAD 12 M5X14

25 91312-05018 BOLT HEX.SOCKET HEAD 6 M5X18

26 91312-05025 BOLT HEX.SOCKET HEAD 4 M5X25

27 91312-05030 BOLT HEX.SOCKET HEAD 4 M5X30

28 91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14

29 91312-06018 BOLT HEX.SOCKET HEAD 2 M6X18

30 91312-06020 BOLT HEX.SOCKET HEAD 10 M6X20

31 91312-06030 BOLT HEX.SOCKET HEAD 4 M6X30

32 97602-04308 SCREW,PAN HEAD W/W 4
