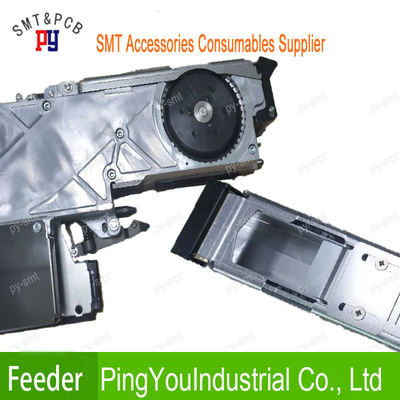

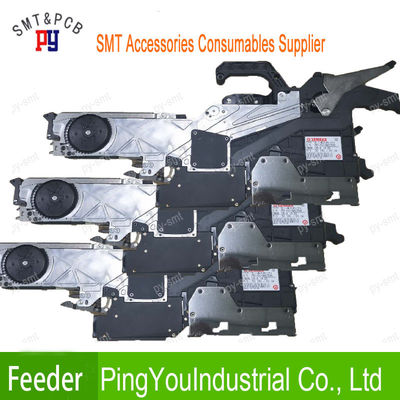

Smart SMT Feeder Stainless Steel ZS32mm KLJ-MC500-001 For YAMAHA High Speed Modular Mounter

SMT Smart Feeder ZS32mm KLJ-MC500-001 for YAMAHA High Speed Modular Mounter

KHJ-MC535-00 SS feeder

KHJ-MC256-00

1 KHJ-MC501-00 BODY,FEEDER 1

2 KHJ-MC502-00 COVER,FEEDER 1

3 KHJ-MC106-00 PLATE,UNDER 1

4 KHJ-MC206-00 PLATE,UNDER 1

5 KHJ-MC80C-00 SEAL,MAIN LABEL 1

6 KHJ-MC80K-003 SPACER,74A 1

7 KHJ-MC80L-003 SPACER,74B 1

8 KHJ-MC510-000 MOTOR, FEED 1

9 KHJ-MC532-00 SPROCKET 1

10 KHJ-MC534-00 GEAR,IDLE F1 1

11 KHJ-MC535-00 GEAR,IDLE F2 1

12 KHJ-MC53R-00 GEAR,IDLE F3-1 1

13 KHJ-MC53S-00 GEAR,IDLE F3-2 1

14 KHJ-MC537-00 GEAR,IDLE F4 1

15 KHJ-MC838-00 GEAR,DRIVEN 1

16 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

17 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

18 90990-08J021 SCREW,STAD 2

19 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1

20 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1

21 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1

22 KHJ-MC53L-00 COVER,FEED GEAR 1

23 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1

24 KHJ-MC53N-00 PIN,DOWEL 2

25 KHJ-MC561-00 BOX,TOP TAPE 1

26 KHJ-MC562-00 COVER,TOP TAPE BOX 1

27 KHJ-MC165-00 MAGNET,TAIL 1

28 KHJ-MC866-00 BLOCK,P/O TOOTH 1 1

29 KHJ-MC46T-00 BOLT HEX.S/H LOW 2

30 KHJ-MC86R-00 SPACER,734C 1

31 KHJ-MC86S-003 SPACER,74D 1

32 KHJ-MC86U-00 TAIL COVER ASSY. 1

33 KHJ-MC60J-000 PIN,PARALLEL 16

34 90166-02JA03 SCREW,PAN HEAD 1

35 90990-01J046 BOLT,HEX.SOCKET HEAD 1

36 90115-2AJ008 BOLT HEX.SOCKET HEAD 3

37 91312-03050 BOLT,HEX.SOCKET HEAD 2

38 91312-03060 BOLT,HEX.SOCKET HEAD 5

39 91312-03070 BOLT,HEX.SOCKET HEAD 1

40 91317-03065 BOLT HEX.SOCKET HEAD 6

41 98707-03006 SCREW,FLAT HEAD 4

KHJ-MC501-00 BODY,FEEDER

KHJ-MC502-00 COVER,FEEDER

KHJ-MC106-00 PLATE,UNDER

KHJ-MC206-00 PLATE,UNDER

KHJ-MC70C-00 SEAL,MAIN LABEL

KHJ-MC70K-003 SPACER,56A

KHJ-MC70L-003 SPACER,56B

KHJ-MC510-000 MOTOR, FEED

KHJ-MC532-00 SPROCKET

KHJ-MC534-00 GEAR,IDLE F1

KHJ-MC535-00 GEAR,IDLE F2

KHJ-MC53R-00 GEAR,IDLE F3-1

KHJ-MC53S-00 GEAR,IDLE F3-2

KHJ-MC537-00 GEAR,IDLE F4

KHJ-MC738-00 GEAR,DRIVEN

KHJ-MC13D-00 SPRING,PUSHER PLATE

KHJ-MC53E-00 BOLT HEX.S/H LOW

No. Part No. Part Name Q'ty Remarks

1 KHJ-MC501-00 BODY,FEEDER 1

2 KHJ-MC502-00 COVER,FEEDER 1

3 KHJ-MC106-00 PLATE,UNDER 1

4 KHJ-MC206-00 PLATE,UNDER 1

5 KHJ-MC50C-00 SEAL,MAIN LABEL 1

6 KHJ-MC510-00 MOTOR, FEED 1

7 KHJ-MC532-00 SPROCKET 1

8 KHJ-MC534-00 GEAR,IDLE F1 1

9 KHJ-MC535-00 GEAR,IDLE F2 1

10 KHJ-MC53R-00 GEAR,IDLE F3-1 1

11 KHJ-MC53S-00 GEAR,IDLE F3-2 1

12 KHJ-MC537-00 GEAR,IDLE F4 1

13 KHJ-MC538-00 GEAR,DRIVEN 1

14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

16 90990-08J021 SCREW,STAD 2

17 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1

18 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1

19 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1

20 KHJ-MC53L-00 COVER,FEED GEAR 1

21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1

22 KHJ-MC53N-00 PIN,DOWEL 1

23 KHJ-MC561-00 BOX,TOP TAPE 1

24 KHJ-MC562-00 COVER,TOP TAPE BOX 1

25 KHJ-MC165-00 MAGNET,TAIL 1

26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1

27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2

28 KHJ-MC56U-00 TAIL COVER ASSY. 1

29 90166-02JA03 SCREW,PAN HEAD 1

30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3

31 91312-03012 BOLT,HEX.SOCKET HEAD 2

32 91312-03022 BOLT,HEX.SOCKET HEAD 5

33 91312-03030 BOLT,HEX.SOCKET HEAD 1

34 91317-03020 BOLT HEX.SOCKET HEAD 6

35 91317-03030 BOLT HEX.SOCKET HEAD 1

36 98707-03006 SCREW,FLAT HEAD 4

37 99480-03010 PIN,PARALLEL 8

1 KLJ-MC10Y-00 SCREW,PAN HEAD 1

2 KHJ-MC104-00 RAIL,UNDER 1

3 KHJ-MC10F-00 SCREW,FLAT HEAD 2

4 KLJ-MC10C-00 SEAL,MAIN LABEL 1 <Note-1>

5 KLJ-MC141-00 TAPE GUIDE 1

6 KHJ-MC144-00 LEVER, TAPE GUIDE R 1

7 KLJ-MC145-00 LEVER,TAPE GUIDE F 1

8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1

9 KHJ-MC147-02 SPRING,TAPE GUIDE F 1

10 KLJ-MC14Y-00 PLATE,STOPPER 1

11 KLJ-MC1H1-00 COLLOR,STOPPER R 1

12 91312-03006 BOLT HEX.SOCKET HEAD 2

13 KHJ-MC15A-00 SHAFT 112 2

14 KLJ-MC162-00 COVER,TOP TAPE BOX 1

15 KLJ-MC163-00 COVER,TAIL 1

16 KHJ-MC16V-02 P/O LEVER ASSY. 1

17 KHJ-MC16B-00 SHAFT,P/O LEVER 2 1

18 KHJ-MC16E-00 SPRING,P/O LEVER 1

19 KLJ-MC1F2-00 WAVE WASHER T.C. 1

20 90990-09J008 SCREW,FLAT HEAD 7

21 KLJ-MC181-00 HANDLE 1

22 91317-03016 BOLT HEX.SOCKET HEAD 1

23 KHJ-MC185-00 PIN,HANDLE 1

24 KHJ-MC1A9-00 CONNECTOR,BOARD 1

25 90166-02JA06 SCREW,PAN HEAD 2

26 KLJ-MC1AM-00 SHIELD,CONNECTOR 1

27 92A08-03306 SCREW,SET 1

28 92A08-03303 SET SCREW M3X3 3

KLJ-MC26Y-00 TOP TAPE BOX COMP. 1

2 KLJ-MC261-00 BOX 1216,TOP TAPE 1

3 KHJ-MC165-00 MAGNET,TAIL 1

4 KLJ-MC1A1-00 BOX,EL 1

5 98502-03006 SCREW PAN HEAD 5

1 KLJ-MC10W-00 FRONT BLOCK ASSY. 1

2 90990-01J042 BOLT,HEX. S/H 2

3 KHJ-MC105-00 PIN,TAIL 1

4 91312-03008 BOLT HEX.SOCKET HEAD 2

5 KHJ-MC106-00 PLATE,UNDER 1

6 KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

7 KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

8 KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

9 KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

10 KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

11 KHJ-MC109-00 SHIM,PLATE UNDER 1 1 T0.01 <Note-1>

12 KHJ-MC10A-00 SHIM,PLATE UNDER 2 1 T0.05 <Note-1>

13 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

14 KLJ-MC1C1-00 PLATE,SPRING ASSY. 1

15 KHJ-MC1C3-00 SCREW 2

16 KLJ-MC1F3-00 BRKT.,REEL HOLDER 1

17 90990-09J008 SCREW,FLAT HEAD 7

18 KHJ-MC183-00 SPACER,TENSION 1 1

19 KHJ-MC184-00 SPACER,TENSION 2 1

20 KLJ-MC186-00 WIRE,UNCLAMP 1

21 KHJ-MC187-00 SPRING,TENSION 1

22 KLJ-MC18H-00 CLAMP LEVER ASSY. 1

23 KHJ-MC189-01 PIN,CLAMP 1

24 KHJ-MC18J-00 SCREW,FLAT HEAD 1

25 KHJ-MC18A-00 SPRING,CLAMP 1

26 KLJ-MC18B-00 COVER,WIRE 1 1

27 KLJ-MC18C-00 COVER,WIRE 2 1

28 KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

29 KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

30 90990-14J001 CIRCLIP 2

31 98707-03006 SCREW,FLAT HEAD 2

32 92A08-03306 SCREW,SET 1

1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11

2 KHJ-MC210-10 MOTOR, PEEL 1

2-1 KHJ-MC210-11 MOTOR, PEEL 1

3 KHJ-MC13F-00 SCREW,STAD 4

4 KHJ-MC251-00 GEAR,IDLE P1 1

5 KHJ-MC252-00 GEAR,IDLE P2 1

6 KHJ-MC253-00 GEAR,IDLE P3 1

7 KHJ-MC254-00 GEAR,IDLE P4 1

8 KHJ-MC256-00 ROLLER,PEEL OFF 1 1

9 KHJ-MC258-00 COVER,IDLE GEAR 1 1

10 KHJ-MC259-00 COVER,IDLE GEAR 2 1

11 KHJ-MC25A-00 SUB-ROLLER,1 1

15 KHJ-MC25E-00 COVER,IDLE GEAR 3 1

16 KHJ-MC26E-00 SPRING,P/O LEVER 1

17 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3

18 KHJ-MC26V-00 P/O LEVER ASSY. 1

19 KHJ-MC1A1-00 BOX,EL 1

20 KHJ-MC1A2-00 COVER,BOX EL 1

21 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3

22 KHJ-MC1A9-00 CONNECTOR,BOARD 1

24 90115-2AJ008 BOLT HEX.SOCKET HEAD 2

25 90166-02JA03 SCREW,PAN HEAD 2

26 90166-02JA08 SCREW PAN H.:M2.5X8 2

27 91317-03006 BOLT HEX.SOCKET HEAD 3

27-1 KHJ-MC11T-00 BOLT,LOCK S/H 3

28 92A08-03303 SET SCREW M3X3 5

29 99480-05018 PIN,PARALLEL 1

1 KHJ-MC10W-00 FRONT BLOCK ASSY 1

1-1 KLJ-MC10W-00 FRONT BLOCK ASSY 1 (2012/11/30) OK

2 KHJ-MC104-00 RAIL,UNDER 1

3 KHJ-MC105-00 PIN,TAIL 1

4 KHJ-MC10F-00 SCREW,FLAT HEAD 2

5 KHJ-MC16J-00 SCREW,FLAT HEAD 11

6 KHJ-MC281-00 HANDLE 1

7 KHJ-MC182-00 TENSION,WIRE 1 1

8 KHJ-MC183-00 SPACER,TENSION 1 1

9 KHJ-MC184-00 SPACER,TENSION 2 1

10 KHJ-MC286-00 WIRE,UNCLAMP 1

11 KHJ-MC187-00 SPRING,TENSION 1

12 KHJ-MC289-00 PIN,CLAMP 1

13 KHJ-MC18A-00 SPRING,CLAMP 1

14 KHJ-MC28B-00 COVER,WIRE 1 1

15 KHJ-MC18F-00 CIRCLIP (E) 1

16 KHJ-MC28H-00 CLAMP LEVER ASSY. 1

17 90440-01J030 CIRCLIP(E) 1

18 91317-03008 BOLT HEX.SOCKET HEAD 4

19 92A08-03303 SET SCREW M3X3 5

21 99480-04018 PIN,PARALLEL
