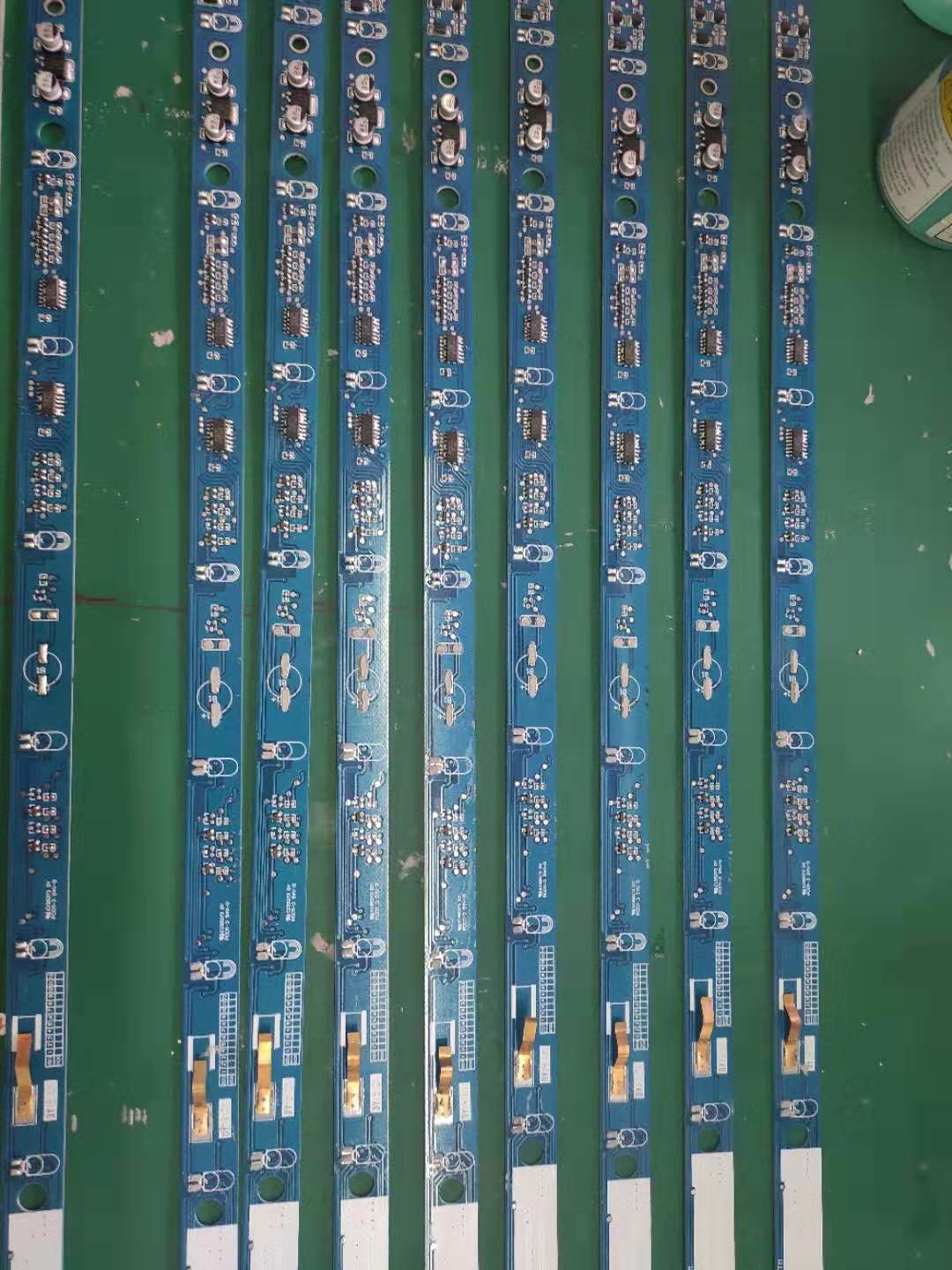

Industrial Control SMT PCB Board , Surface Mount Pcb Assembly 2 Layer 1OZ Copper

Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBase Material | FR-4 | Board Thickness | 1.2MM |
---|---|---|---|
Number Of Layers | 2 LAYER | Copper Thickness | 1OZ |
Min. Hole Size | 5MIL | Min. Line Width/Spacing | 4/4MIL |
Solder Mask Color | Blue | Place Of Origin | CHINA |
Supply Ability | Ten Thousand Square Meters/month | Surface Finishing | Hasl |
Highlight | universal pcb board,led printed circuit board |

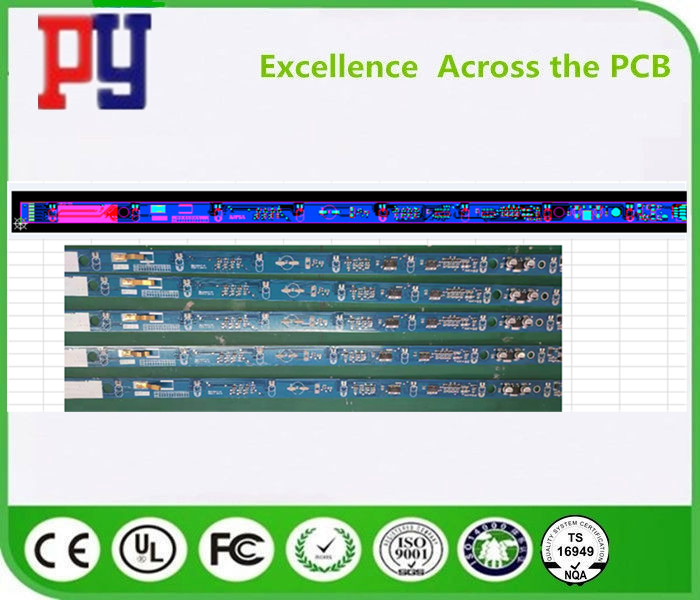

Industrial control board , Surface Mount Pcb Assembly hasl Surface Finishing
Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
Applications:
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
Capability
High precision prototype | PCB bulk production | ||
Max Layers | 1-28 layers | 1-14 layers | |
MIN Line width(mil) | 3mil | 4mil | |
MIN Line space(mil) | 3mil | 4mil | |
Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
Board thickness≤2.5mm | 0.2mm | 0.3mm | |
Board thickness>2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Board thickness | MAX | 8mm | 7mm |
MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
MAX Board size | 610*1200mm | 610*1200mm | |
Max copper thickness | 0.5-6oz | 0.5-6oz | |
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” |
||
Hole copper thick | 25um 1mil | 25um 1mil | |
Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Outline Tolerance | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
|
Impedance | ±10% | ±10% | |
MIN Solder mask bridge | 0.08mm | 0.10mm | |
Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm |
