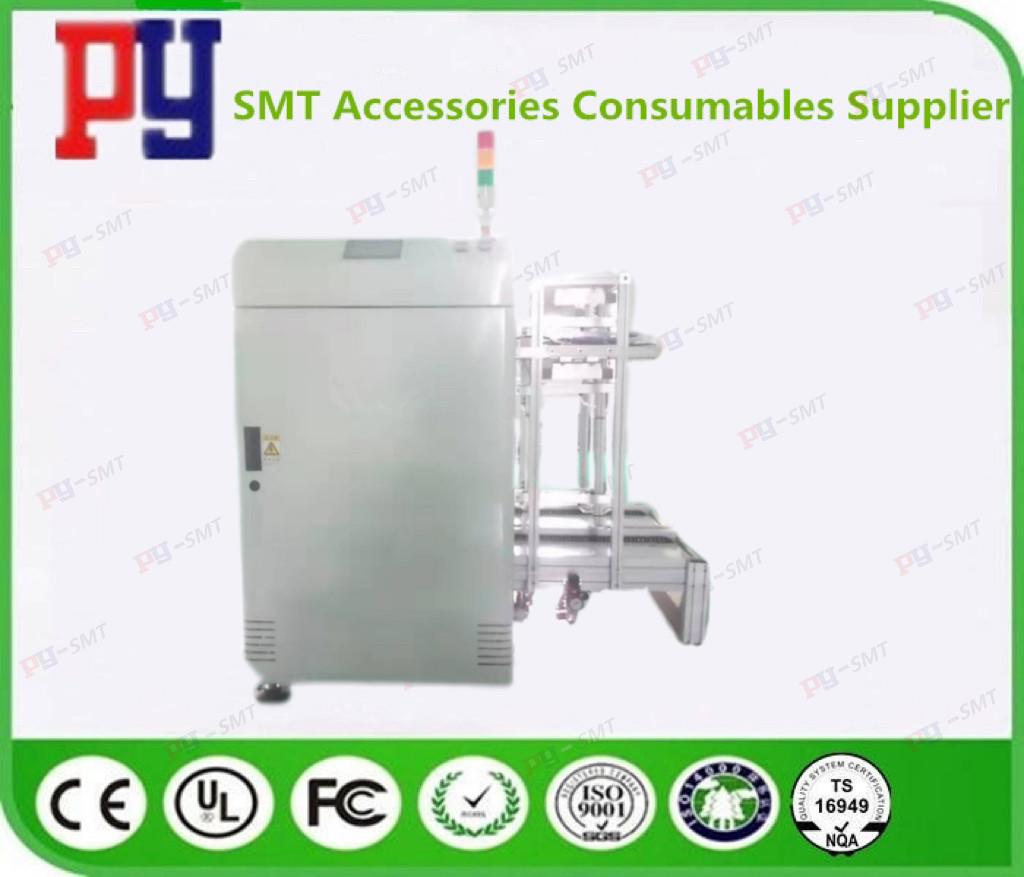

Double-Rail NG / OK Loader Machine 3700II Customizable

This device is used behind the dual-track AOI. This machine automatically stores the NG and OK boards separately after receiving the AOI signal.

Features::

1. PLC program control system, operation control panel is display and control touch screen

2.Can put 2 racks, the overall size is L1600 * W1600 * H1270mm

3.Has a built-in good and bad board function

4. Process direction: from left to right or from right to left (selected by the customer)

5. Multiple sound and light alarm functions.

6.Conveyor with a set of 0.7 meters long

7. Magazine clamping is completed by air cylinder, which is reliable.

8. Dedicated national standard frosted aluminum profile guide and special thousand bird type plastic chain

9.90W special right-angle motor drives TBI ball screw to make Magazine step up and down

10.Yadeli pneumatic clamp structure

Application:

NG / OK UNLoader is widely used at the end of the dual-track AOI of the SMT production line. It is used to NG / OK sort the PCBs supplied by the front equipment or separate A and B products. The action is controlled by the board supply of the front equipment. If the NG / OK UNLoader machine has completely filled the board, it will restrict the front machine to stop the board supply and issue an audible and visual alarm.

The main parameters:
