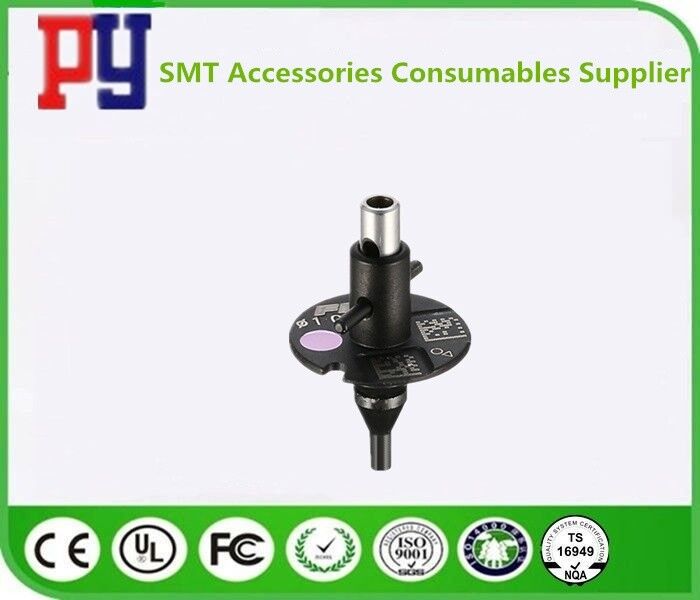

SMD Pick Up Nozzle SMT Pick And Place Mounter System Type Head H12 1.0mm AA05800

SMD & SMT Pick and Place Mounter System Nozzle 1.0mm AA05800 Head H12 Fuji NXT

SMD SMT Nozzle for FUJI PTS-NXT-08JE H08 H12

1 AA1AT04 1 NOZZLE R07-003-070 N/A

2 AA05603 1 NOZZLE R07-004-070 N/A

3 AA05703 1 NOZZLE R07-007-070 N/A

4 AA05803 1 NOZZLE R07-010-070 N/A

5 AA20A03 1 NOZZLE R07-013-070 N/A

6 AA20B03 1 NOZZLE R07-018-070 N/A

7 AA20C03 1 NOZZLE R07-025-070 N/A

8 AA20D03 1 NOZZLE R07-037-070 N/A

9 AA20E03 1 NOZZLE R07-050-070 N/A

10 AA06404 1 NOZZLE R07-013M-070 N/A

11 AA19G04 1 NOZZLE R07-018M-070 N/A

12 AA06504 1 NOZZLE R07-025M-070 N/A

13 AA0WT05 1 NOZZLE R07-025G-070 N/A

14 AA18C02 1 NOZZLE R07-037G-070 N/A

14.1 PB30310 1 SHIM N/A N/A

14.2 H1194K 1 PAD,VACUUM KPA-2-N N/A

15 AA06302 1 NOZZLE R07-050G-070 N/A

15.1 PB30310 1 SHIM N/A N/A

15.2 H1339B 1 PAD,VACUUM KPA-3.5-NOT

SMD SMT Nozzle for FUJI PTS-NXT-08JE H04 PART1

o. PartNo. QTY Description Rating Remarks

2 AA06W07 1 NOZZLE R19-010-155 N/A

3 AA06X08 1 NOZZLE R19-013-155 N/A

4 AA06Y08 1 NOZZLE R19-018-155 N/A

5 AA06Z09 1 NOZZLE R19-025-155 N/A

6 AA07A09 1 NOZZLE R19-037-155 N/A

7 AA07B08 1 NOZZLE R19-050-155 N/A

8 AA07C06 1 NOZZLE R19-070-155 N/A

9 AA07D05 1 NOZZLE R19-100-155 N/A

10 AA07E06 1 NOZZLE R19-150-155 N/A

SMD SMT Nozzle for FUJI PTS-NXT-08JE H04 PART2

LNo. PartNo. QTY Description Rating Remarks

1 AA07F07 1 NOZZLE R19-025G-155 N/A

2 AA07G05 1 NOZZLE R19-037G-155 N/A

2.1 PB30310 1 SHIM N/A N/A

2.2 H1194K 1 PAD,VACUUM KPA-2-NOT N/A

3 AA07H05 1 NOZZLE R19-050G-155 N/A

3.1 PB30310 1 SHIM N/A N/A

3.2 H1339B 1 PAD,VACUUM KPA-3.5-NOT N/A

4 AA07K05 1 NOZZLE R19-070G-155 N/A

4.1 PB31591 1 SHIM N/A N/A

4.2 PG01611 1 PAD,VACUUM N/A N/A

5 AA07L05 1 NOZZLE R19-100G-155 N/A

5.1 PB31600 1 SHIM N/A N/A

5.2 PG01620 1 PAD,VACUUM N/A N/A

6 AA07M07 1 NOZZLE R19-150G-155 N/A

6.1 PB31611 1 SHIM N/A N/A

6.2 PG01630 1 PAD,VACUUM N/A N/A

SMD SMT Nozzle for FUJI PTS-NXT-08JE H01 PART1

LNo. Part No. QTY Description Rating remarks

1 AA0AS05 1 NOZZLE R36-010-260 N/A

1.1 A5188M 1 O RING 9X0.8(FKM70) N/A

2 AA06807 1 NOZZLE R36-013-260 N/A

3 AA0HS02 1 NOZZLE R36-018-260 N/A

4 AA0HT02 1 NOZZLE R36-025-260 N/A

5 AA0HW02 1 NOZZLE R36-037-260 N/A

6 AA0HX02 1 NOZZLE R36-050-260 N/A

7 AA08008 1 NOZZLE R36-070-260 N/A

8 AA08107 1 NOZZLE R36-100-260 N/A

9 AA08207 1 NOZZLE R36-150-260 N/A

10 AA08307 1 NOZZLE R36-200-260 N/A

11 AA0MZ02 1 NOZZLE R36-013M-260 N/A

12 AA11R02 1 NOZZLE R36-018M-260 N/A

13 AA0ML03 1 NOZZLE R36-025M-260 N/A

SMD SMT Nozzle for FUJI PTS-NXT-08JE H01 PART2

LNo. PartNo. QTY Description Rating Remarks

1 AA08411 1 NOZZLE R36-025G-260 N/A

2 AA08509 1 NOZZLE R36-037G-260 N/A

2.1 PB30310 1 SHIM N/A N/A

2.2 H1194K 1 PAD,VACUUM KPA-2-NOT N/A

3 AA07209 1 NOZZLE R36-050G-260 N/A

3.1 PB30310 1 SHIM N/A N/A

3.2 H1339B 1 PAD,VACUUM KPA-3.5-NOT N/A

4 AA07311 1 NOZZLE R36-070G-260 N/A

4.1 PB31591 1 SHIM N/A N/A

4.2 PG01611 1 PAD,VACUUM N/A N/A

5 AA07410 1 NOZZLE R36-100G-260 N/A

5.1 PB31600 1 SHIM N/A N/A

5.2 PG01620 1 PAD,VACUUM N/A N/A

6 AA07511 1 NOZZLE R36-150G-260 N/A

6.1 PB31611 1 SHIM N/A N/A

6.2 PG01630 1 PAD,VACUUM N/A N/A

7 AA07610 1 NOZZLE R36-200G-260 N/A

7.1 PB31731 1 SHIM N/A N/A

7.2 PG01640 1 PAD,VACUUM N/A N/A

1.1 Nozzles (DBPN)

No. Part.No. QTY Description Rating Remarks

1 DBPN0613 1 SPRING, PLATE N/A N/A

2 DBPN0622 1 SPRING, PLATE N/A N/A

3 DBPN0630 1 SPACER N/A N/A

4 K5175M N/A SCREW, C/R PAN M2X4L N/A

5 K6157L N/A SCREW, C/R PAN M2X3L N/A

10 ADBPN8114 1 NOZZLE 013-270 N/A

11 ADBPN8124 1 NOZZLE 018-270 N/A

12 ADBPN8134 1 NOZZLE 025-270 N/A

13 ADBPN8194 1 NOZZLE 025G-270 N/A

14 ADBPN8144 1 NOZZLE 037-270 N/A

15 ADBPN8204 1 NOZZLE 050G-270 N/A

16 ADBPN8154 1 NOZZLE 070-270 N/A

17 ADBPN8214 1 NOZZLE 080G-270 N/A

18 ADBPN8164 1 NOZZLE 100-270 N/A

19 ADBPN8174 1 NOZZLE 150-270 N/A

20 ADBPN8224 1 NOZZLE 150G-270 N/A

21 ADBPN8234 1 NOZZLE 175G-270 N/A

22 ADBPN8184 1 NOZZLE 200-270 N/A

33 BHPN2810 1 PAD N/A N/A

38 H1194B 1 PAD, VACUUM KP-3.5-N-31W N/A

39 QNA4010 1 PAD N/A N/A

40 H1194C 1 PAD, VACUUM KP-6-N-31W N/A

41 QNA4020 1 PAD N/A N/A

42 QNA4030 1 PAD N/A N/A

43 H1193X 1 PAD, VACUUM VP10LBNE N/A

44 H1193Y 1 PAD, VACUUM VP15LBNE N/A

45 QNA4040 1 PAD N/A N/A

46 ADBPN8314 1 NOZZLE 070-110 N/A

47 ADBPN8324 1 NOZZLE 100-110 N/A

48 ADBPN8334 1 NOZZLE N/A N/A

54 QNA4010 1 PAD N/A N/A

55 QNA4020 1 PAD N/A N/A

1.2. Nozzles (DBPN)

No. Part.No. QTY Description Rating Remarks

1 DBPN0613 1 SPRING, PLATE N/A N/A

2 DBPN0622 1 SPRING, PLATE N/A N/A

3 DBPN0630 1 SPACER N/A N/A

4 K5175M N/A SCREW, C/R PAN M2X4L N/A

5 K6157L N/A SCREW, C/R PAN M2X3L N/A

38 H1194B 1 PAD, VACUUM KP-3.5-N-31W N/A

40 H1194C 1 PAD, VACUUM KP-6-N-31W N/A

48 ADBPN8334 1 NOZZLE 150-110 N/A

49 ADBPN8344 1 NOZZLE 200-110 N/A

50 ADBPN8414 1 NOZZLE 070-200 N/A

51 ADBPN8424 1 NOZZLE 100-200 N/A

52 ADBPN8434 1 NOZZLE 150-200 N/A

53 ADBPN8444 1 NOZZLE 200-200 N/A

54 QNA4010 1 PAD N/A N/A

55 QNA4020 1 PAD N/A N/A

56 QNA4030 1 PAD N/A N/A

57 QNA4040 1 PAD N/A N/A

58 ADBPN8514 1 NOZZLE Dummy nozzle N/A

59 ADBPN8524 1 NOZZLE 007-100 N/A

60 ADBPN8534 1 NOZZLE 010-100 N/A

61 ADBPN8352 1 NOZZLE 050G-110 N/A

62 ADBPN8362 1 NOZZLE 080G-110 N/A

63 ADBPN8372 1 NOZZLE 100G-110 N/A

64 ADBPN8382 1 NOZZLE 150G-110 N/A

65 ADBPN8392 1 NOZZLE 175G-110 N/A

66 ADBPN8452 1 NOZZLE 050G-200 N/A

71 H14403 1 PAD, VACUUM KP-8-N-31W N/A

72 H1194D 1 PAD, VACUUM KP-10-N-31W N/A

73 H1194G 1 PAD, VACUUM KP-15-N-31W N/A

1.3.Nozzles(DBPN)

No. Part.No. QTY Description Rating Remarks

1 DBPN0613 1 SPRING, PLATE N/A N/A

2 DBPN0622 1 SPRING, PLATE N/A N/A

3 DBPN0630 1 SPACER N/A N/A

4 K5175M N/A SCREW, C/R PAN M2X4L N/A

5 K6157L N/A SCREW, C/R PAN M2X3L N/A

40 H1194C 1 PAD, VACUUM KP-6-N-31W N/A

67 ADBPN8462 1 NOZZLE 080G-200 N/A

68 ADBPN8472 1 NOZZLE 100G-200 N/A

69 ADBPN8482 1 NOZZLE 150G-200 N/A

70 ADBPN8492 1 NOZZLE 175G-200 N/A

71 H14403 1 PAD, VACUUM KP-8-N-31W N/A

72 H1194D 1 PAD, VACUUM KP-10-N-31W N/A

73 H1194G 1 PAD, VACUUM KP-15-N-31W N/A

CGPN0022 96 SPRING N/A Applicable to all nozzle

2 CGPN0330 64 SEAL N/A N/A

3 ACGPN8036 64 NOZZLE ASSY N/A φ0.7-φ8

4 CGPN0230 64 SEAL N/A N/A

5 ACGPN8026 64 NOZZLE ASSY N/A φ1.0-φ8

6 CGPN0130 64 SEAL N/A N/A

7 ACGPN8016 64 NOZZLE ASSY N/A φ1.3-φ8

8 CGPN0430 64 SEAL N/A N/A

9 ACGPN8046 64 NOZZLE ASSY N/A φ1.8-φ8

10 CGPN1021 32 SEAL N/A N/A

11 ACGPN8116 32 NOZZLE ASSY N/A φ1.8-φ17

12 CGPN1121 32 SEAL N/A N/A

13 ACGPN8126 32 NOZZLE ASSY N/A φ2.5-φ17

14 ACGPN8538 64 NOZZLE ASSY N/A With SEAL

15 ACGPN8528 64 NOZZLE ASSY N/A With SEAL

16 ACGPN8518 64 NOZZLE ASSY N/A With SEAL

17 ACGPN8548 64 NOZZLE ASSY N/A With SEAL

18 ACGPN8617 32 NOZZLE ASSY N/A With SEAL

19 ACGPN8627 32 NOZZLE ASSY N/A With SEAL

20 ACGPN8200 1 FILTER KIT N/A CGPN0030

1.Nozzles(QNA)

No. Part.No. QTY Description Rating Remarks

1 AQNA3149 2 NOZZLE N/A N/A

2 AQNA3170 2 NOZZLE N/A N/A

3 AQNA3190 2 NOZZLE N/A N/A

4 AQNA3210 2 NOZZLE N/A N/A

5 AQNA3220 2 NOZZLE N/A N/A

6 AQNA3230 2 NOZZLE N/A N/A

7 AQNA3241 2 NOZZLE N/A N/A

8 AQNA3250 2 NOZZLE N/A N/A

9 AQNA3260 2 NOZZLE N/A N/A

10 AQNA3270 2 NOZZLE N/A N/A

11 AQNA3281 2 NOZZLE N/A N/A

12 AQNA3295 2 NOZZLE N/A N/A

13 AQNA3304 2 NOZZLE N/A N/A

14 AQNA3314 2 NOZZLE N/A N/A

15 AQNA3324 2 NOZZLE N/A N/A

16 AQNA3334 2 NOZZLE N/A N/A

17 AQNA3342 2 NOZZLE N/A N/A

2.Nozzles(Option)(QNA)

No. Part.No. QTY Description Rating Remarks

1 AQNA3110 2 NOZZLE N/A N/A

2 AQNA3120 2 NOZZLE N/A N/A

3 AQNA3139 3 NOZZLE N/A N/A

4 AQNA3159 3 NOZZLE N/A N/A

5 AQNA3169 3 NOZZLE N/A N/A

6 AQNA3180 3 NOZZLE N/A N/A

7 AQNA3201 3 NOZZLE N/A N/A

8 AQNA3350 1 NOZZLE N/A N/A
