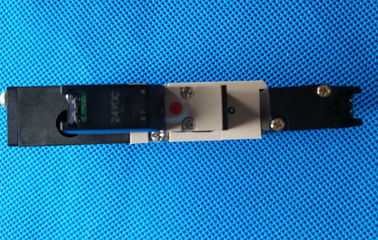

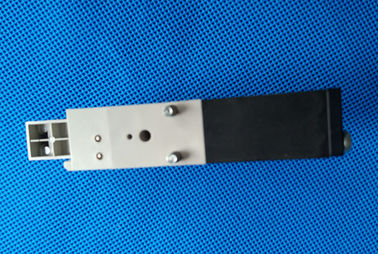

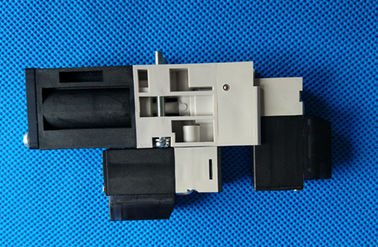

Ejector A010E1-44W+A010E1-37W+AME05-E2-PSL-27W smt parts KGS-M7171-A0X for YAMAHA pcb assembly equipment

Ejector A010E1-44W+A010E1-37W+AME05-E2-PSL-27W KGS-M7171-A0X use for Smt YAMAHA pcb assembly equipment

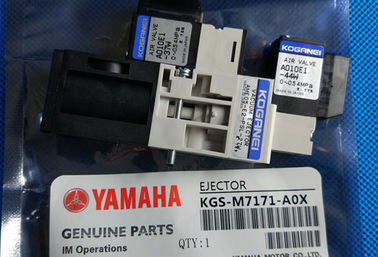

KGS-M7171-A0X EJECTOR 44W+37W+27W

KM1-M7163-20X VALVE 37W
KM1-M7163-30X VALVE 44W
KM5-M7174-C1X EJECTOR BASE
Part nr.: 9498 396 01089 Ejector, Vacuum

KGS-M7111-02X PLATE, HEAD 1
2 KGS-M7112-02X HOUSING, SHAFT 1
3 KGS-M7113-02X DAMPER, Z DOWN 1
4 KGS-M7115-02X SLEEVE, SPRING 8
5 KGS-M7116-00X SPRING, RETURN 8
6 KGS-M711C-00X PLATE, HOUSING 8
7 KGS-M7119-00X BLOCK, S SENSOR 2
8 KV8-M71VS-00X COLLAR, SENSOR 4
9 KGS-M653H-A0X SENSOR, POS 1-2 ASSY 1 FNC
10 KGS-M653J-A0X SENSOR, POS 2-2 ASSY 1 FNC
11 KGS-M653A-A0X SENSOR, Z DOWN ASSY 1 FNC, SF (SPARE)
12 KGS-M711B-00X STAY, HANDLE 1
13 KGS-M2256-00X GRIP 1
14 99480-04010 PIN PARALLEL: 4X10 6
15 99480-04014 PIN, PARALLEL 2
16 92907-03200 WASHER PLAIN 1
17 91317-03008 BOLT HEX. SOCKET HEAD 1
18 91317-03006 BOLT HEX. SOCKET HEAD 23
19 91317-04040 BOLT HEX. SOCKET HEAD 4
20 91317-05016 BOLT HEX. SOCKET HEAD 3
21 91317-05008 BOLT HEX. SOCKET HEAD 4
22 91317-06018 BOLT HEX. SOCKET HEAD 4
23 90563-04J120 SPACER 2
24 90563-04J360 SPACER 3 FNC, SF
25 KGS-M711J-02X SPACER 2 SF
26 KGS-M7121-02X PLATE, Z MOTOR 1
27 KGS-M7122-02X PLATE, Z STAND 2
28 KGS-M7123-02X PLATE, Z GUIDE 1
29 KGS-M7124-02X GUIDE, Z 8
30 KGS-M7125-00X RACK, MAIN Z 8
31 KGS-M7126-00X RACK, SUB Z 8
32 KGS-M7127-02X SPRING, RACK 8
33 KGS-M7129-02X ARM L, Z AXIS 4
34 KGS-M712A-02X ARM S, Z AXIS 4 FNC
35 KGS-M712B-02X BLOCK, STOPPER Z 1
36 KGS-M712C-00X BODY, DAMPER 4 FNC
37 KGS-M712D-00X SHAFT, DAMPER 4 FNC
38 KGS-M712E-00X NUT, MOUNT 4 FNC
39 KGS-M712F-00X SPRING, DAMPER 4 FNC
40 KGS-M712G-00X POST, SPRING S 16
41 KGS-M712H-00X PIN, RACK 16
42 KGS-M712K-02X GUIDE, SPRING 8
43 KGS-M712L-00X PINION, Z 8
44 KGS-M712M-00X BRACKET, MOTOR 8
45 KGS-M4880-00X AC SERVO MOTOR Z1 1
46 KGS-M4880-10X AC SERVO MOTOR Z2 1
47 KGS-M4880-20X AC SERVO MOTOR Z3 1
48 KGS-M4880-30X AC SERVO MOTOR Z4 1
49 KGS-M4880-40X AC SERVO MOTOR Z5 1
50 KGS-M4880-50X AC SERVO MOTOR Z6 1
51 KGS-M4880-60X AC SERVO MOTOR Z7 1
52 KGS-M4880-70X AC SERVO MOTOR Z8 1
53 90440-10J025 CIRCLIP 4 FNC
54 99480-03010 PIN, PARALLEL 28
55 92A08-04305 SET SCREW M4X5 8
56 90115-02J005 BOLT, HEX S. H 32
57 90115-2AJ005 BOLT, HEX. SOCKET HEAD 8
58 91317-03008 BOLT HEX. SOCKET HEAD 16
59 91317-03012 BOLT HEX. SOCKET HEAD 8
60 91317-03020 BOLT HEX. SOCKET HEAD 4
61 91317-04016 BOLT HEX. SOCKET HEAD 4
62 KGS-M715B-02X BRACKET, SF ARM 4
63 KGS-M715C-02X BRACKET, FNC ARM 4
64 90115-2AJ012 BOLT, HEX. SOCKET HEAD 24
65 90115-2AJ015 BOLT, HEX. SOCKET HEAD 8
66 98704-03006 SCREW FLAT HEAD 16
67 90563-04J520 SPACER 1
68 KGS-M712A-52X ARM SF, Z AXIS 4 SF
69 KGS-M712C-52X BOLT, STOPPER 4 SF
70 KGS-M71C1-02X PLATE BRACKET AMP 1 FNC
71 KGS-M71C6-00X BLOCK, BRACKET AMP 1 FNC
72 KGT-M71VD-00X BRACKET, AMP 8 FNC
73 KGS-M653H-B0X SENSOR, POS 1-4 ASSY 1
74 KGS-M653H-C0X SENSOR, POS 1-6 ASSY 1
75 KGS-M653H-D0X SENSOR, POS 1-8 ASSY 1
76 KGS-M653J-B0X SENSOR, POS 2-4 ASSY 1
77 KGS-M653J-C0X SENSOR, POS 2-6 ASSY 1
78 KGS-M653J-D0X SENSOR, POS 2-8 ASSY 1
79 KGS-M653K-00X SENSOR, POS SPARE 8 (2006.09.07) M50100
80 KGS-M71C1-03X PLATE HNS. 1 (2006.09.07) M50100
81 91317-04008 BOLT, HEX. SOCKET HEAD 2
82 NK-4N NYLON CLIP 4
83 KGS-M7111-03X HOUSING, MAIN 1 2006.08.09 MC70054
84 KGS-M711H-00X DAMPER SPARE 4 FNC
85 KGS-M714T-04X PLATE, STOPPER 4 (2006.09.25) MC90061
86 KGS-M714U-00X PLATE 2, STOPPER 1 (2006.09.25) MC90061
