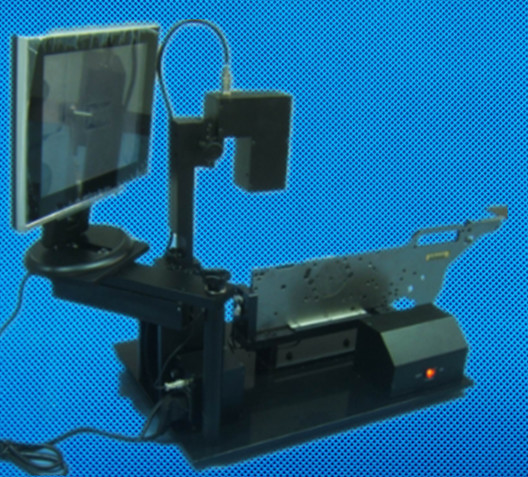

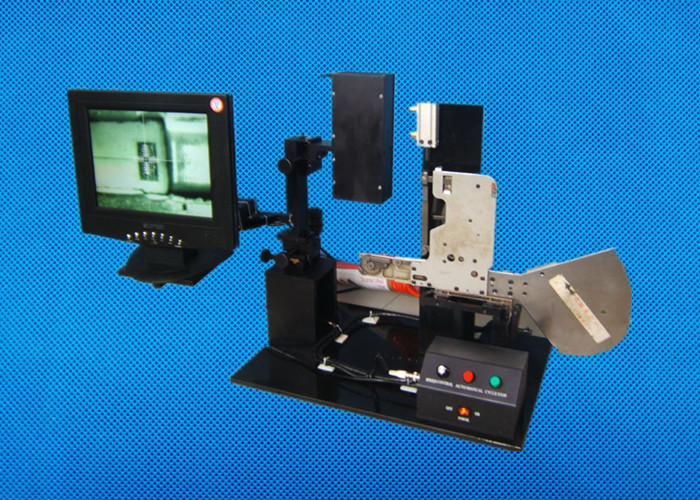

FUJI CP6 SMT Equipment Feeder Calibration Jig With LED Display ISO approved

FUJI CP6 SMT Equipment Feeder Calibration Jig With LED Display ISO approved

    • FUJI CP6 SMT Equipment Feeder Calibration Jig With LED Display ISO approved
    • FUJI CP6 SMT Equipment Feeder Calibration Jig With LED Display ISO approved
  • FUJI CP6 SMT Equipment Feeder Calibration Jig With LED Display ISO approved

    Product Details:

    Place of Origin: China
    Brand Name: FUJI
    Certification: ISO
    Model Number: Feeder Calibration

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 1-3 days
    Supply Ability: long-term supply
    Contact Now
    Detailed Product Description
    Model Number: Smt Feeder Calibration Jigs Parts Name: SMT FEEDER Calibration Jigs
    Voltage: 220V Size: L500*W350*H500(MM)
    Function: Use For FUJI CP , QP Feeders Material: Stainless Steel

    FUJI CP6 SMT Equipment Feeders Calibration Jigs made in China



    Specifications

    1. Feeder Calibration
    2. for FUJI CP6 feeder
    3. Type Pneumatic/Manual
    4. Camera CCD
    5. One year quarantee

    FUJI CP6 Feeder Calibration JIG

    1. Feeder Calibration
    2. for FUJI CP6 feeder
    3. Type Pneumatic/Manual
    4. Camera CCD
    5. One year quarantee

    It is essential for this equipment that enhanced productivity , installation and quality improvement

    As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position which results from the modification and wear of tape feeder in the SMD device.

    The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously because it has relatively close correclation with the quality of a current line, production efficiency and loss

    Convenience in use---------

    1. The acquisition for the rectangular coordinate of X-Y direction.

    2. Check for the existence, transformation, user in the feeder

    3. The installation is to euip it with actual device and consolidation in feeder base

    4. Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis

    5. The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)

    6. The simple calibration for removing or taking feeder easily

    7. It is correction as measurement with CCD Camera.

    8. Timer control make it pssible to change the IC pick-u time.

    9. The use pressure is able to control in the regulator and air cylinder.

    10. Verification and correction available worker`s convenience and well carriage by the work desk.



    Specification:



    Overall size 500X350X550mm , L X W X H

    Type Pneumatic/Manual

    Monitor 12" LED Display with cross mark

    Camera CCD 50times magnfication
