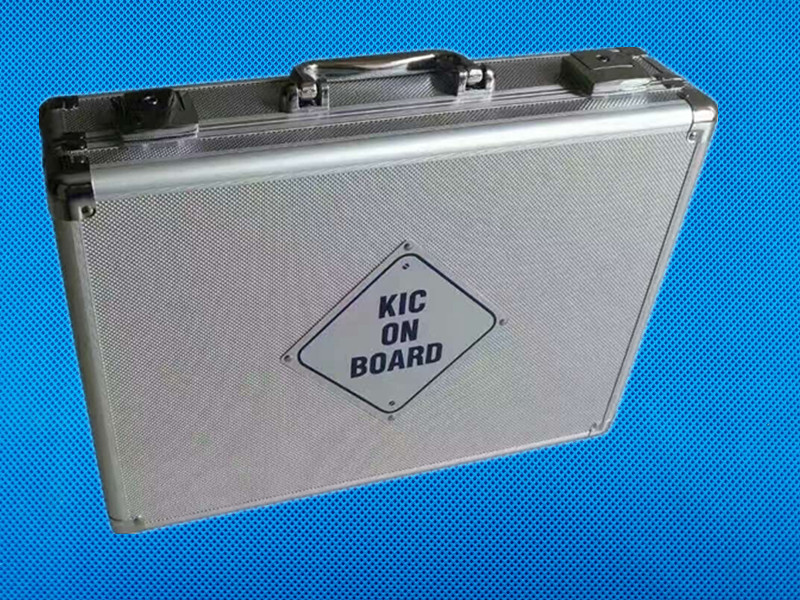

High Precise Surface Mount Parts KIC 2000 9 Channel Furnace Temperature Tester

High Precise Surface Mount Parts KIC 2000 9 Channel Furnace Temperature Tester

    • High Precise Surface Mount Parts KIC 2000 9 Channel Furnace Temperature Tester
    • High Precise Surface Mount Parts KIC 2000 9 Channel Furnace Temperature Tester
  • High Precise Surface Mount Parts KIC 2000 9 Channel Furnace Temperature Tester

    Product Details:

    Place of Origin: china
    Brand Name: KIC
    Model Number: start(coppuy)9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Contact Now
    Detailed Product Description
    Place Of Origin:: Guangdong, China (Mainland) Model Number:: KIC2000
    Usage: Reflow Oven Temeperature Profie Accuracy:: ±1C
    Temperature Range:: -150C - 1050C Weight:: Approx. 2.5kgs
    Additonal: NEW

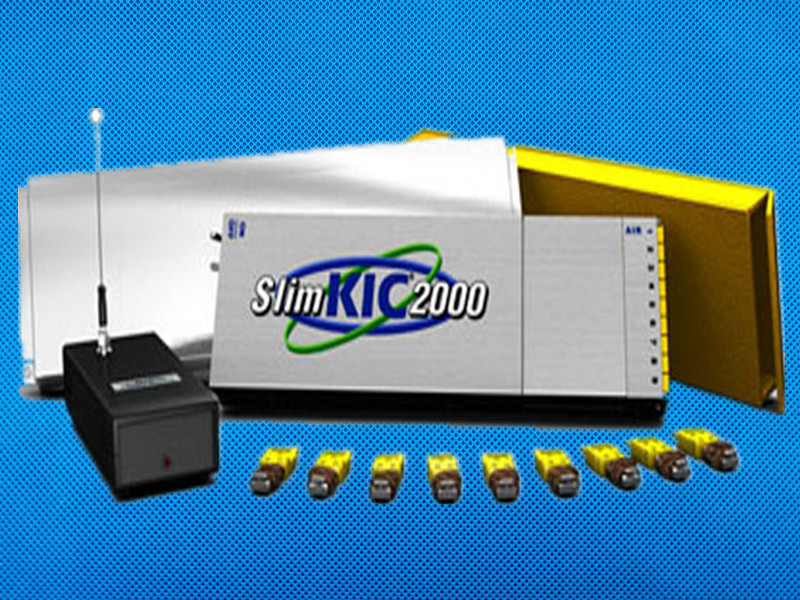

    KIC Slim 2000 thermal profile test printed circuit boards temperature profiling



    By automating the complex task of process set up the SlimKIC®2000™ makes profiling so easy that any operator can quickly achieve the optimal process. Simply select from a built-in library containing hundreds of commonly used solder paste specifications. The software uses the paste supplier's thermal profile specs to automatically define the process window. Color-coded signlas alert the operator to any out-of-specification conditions.

    The SlimKIC 2000 simplifies profiling by reducing the process to a single number -- the Process Window Index™ (PWI) -- so you know precisely how good your profile is. The simplified user interface guides the operator through the profiling process, minimizing the potential for improper oven set up and yield-reducing defects.





    Profiling Reduced to a Single Number



    For precise ranking of profile performance, the KIC software uses the Process Window Index (PWI). The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process!



    Technical Specifications



    Accuracy: ±1.2C
    Resolution: Variable 0.3C to 0.1C
    Internal Operating Temp: 0C to 105C
    Thermocouple Compatibility: Type K, 9 or 12
    Temperature Range: -150C to 1050C
    Computer Capability: PC
    Power Requirements: 9V alkaline battery
    Thermal Receiver: 433.92 MHz
    Dimensions: See Temperature Tolerance Chart below for specifications

    Datalogger Model: data is downloaded to the computer through a cable after the run. Dual Unit Model: data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.



    Temperature Tolerance Chart (maximum endurance in minutes at specified temperature)



    CONFIGURATION DIMENSIONS (mm) (Length x Width x Height) 150C 200C 250C 300C 350C 400C
    SlimKIC 2000, 9CH no shield 260.4 x 79.0 x 19.9 8.5 5.5 4.2 3.5
    SlimKIC 2000, 12CH no shield 260.4 x 99.4 x 19.9 8.5 5.5 4.2 3.5
    LowRider cover 260.4 x 76.2 x 19.9 13.9 8.3 5.5 4.7
    Thermal Shield 1/8” (3.2mm), 9CH 319.0 x 86.4 x 26.4 17.6 11.0 8.0 6.4
    Thermal Shield 1/8” (3.2mm), 12CH 319.0 x 108.0 x 26.4 17.6 11.0 8.0 6.4
    LowRider and Thermal Shield 1/8” (3.2mm) 323.9 x 86.4 x 26.4 22.6 15.1 10.7 8.7
    Thermal Shield 1/4” (6.4mm), 9CH 330.2 x 93.0 x 34.3 24.6 15.5 11.5 9.8
    Thermal Shield 1/4” (6.4mm), 12CH 330.2 x 115.6 x 34.3 24.6 15.5 11.5 9.8
    LowRider and Thermal Shield 1/4” (6.4mm) 330.2 x 95.3 x 34.3 30.7 22.6 16.4 12.2
    Long Duration Thermal Shield 381.0 x 139.7 x 76.2 62.8 42.2 33.1 29.7
    Lead-Free Thermal Shield, 9CH 348.0 x 93.0 x 30.0 18.6 12.7 10.7 9.1 7.9 7.6
    Lead-Free Thermal Shield, 12CH 348.0 x 114.0 x 30.0 18.6 12.7 10.7 9.1 7.9 7.6



    Computer Configuation

    Minimum System Requirements

    800 MHz Processor/ 256 MB RAM1

    2 GB available storage (for product history)

    Video 1024 x 768 resolution / 16-bit

    1 available USB port (for data download)

    1 available parallel port or USB port (for software key options)

    Microsoft® Windows® 2000, XP, Vista, or 7. (32-bit or 64-bit)

    1, the traditional temperature curve measurement and set has been a time consuming work, and KIC SlimKIC type 2000 temperature/time setter can solve the problem of the traditional process.
    2, the operator can choose from has set a good solder paste properties database used solder paste.SlimKIC 2000 automatically set the required process or window frame.
    3, if cooperate NavigatorTM after a test software, the software automatically accurate budget making process should be qualified operators can choose from has set a good solder paste properties database used solder paste.SlimKIC 2000 automatically set the required process or window frame.To reduce the repeated test requirements.Test requirements.
    4, provide the PWI SlimKIC 2000, help operators understand set good process ability.Operators can decide whether to fine-tune optimization.
    5, if cooperate NavigatorTM software, can automatically select the best in all possible parameter combination the set point, without artificial judgment and test and optimize.
    6, if cooperate AutoFocusTM software, can be set up from past experience for you to calculate the initial process parameters.Do not need to own speculation.Software also have automatic learning function, had enough experience to once is completed after the best PWI Settings.
    7, if cooperate with KIC PilotTM, for some still can automatically regulate the parameters setting of the stove, the stove without manual adjustment.
    8, in complex or a large number of BGA PCBA, such as the traditional measuring 5 channels - probe is already could not meet the technical requirements.
    9, KIC SlimKIC2000 provide channel 6, 9 and 12.KIC Start with 6 channels.Wave soldering, reflow soldering, general.
    10, the furnace temperature tester now provides the industry's top thermometer, on software, the simulation curve function, five groups curve contrast function and on temperature measurement accuracy is not with the unparalleled in other similar brand;The host hardware, eliminating the general thermometer and heat preservation box when the temperature adjustment and separated twice cumbersome process, host directly on insulating material's heat preservation box, does not need to take out directly when measuring and read into the computer interface.
    High Precise Surface Mount Parts KIC 2000 9 Channel Furnace Temperature Tester
