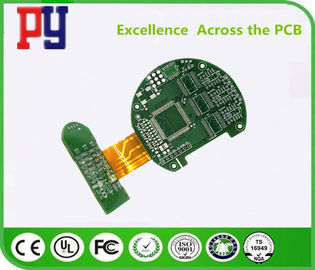

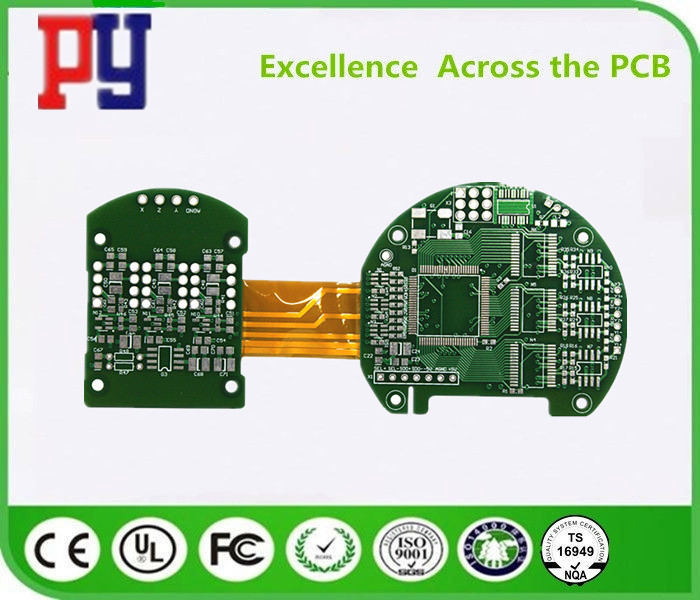

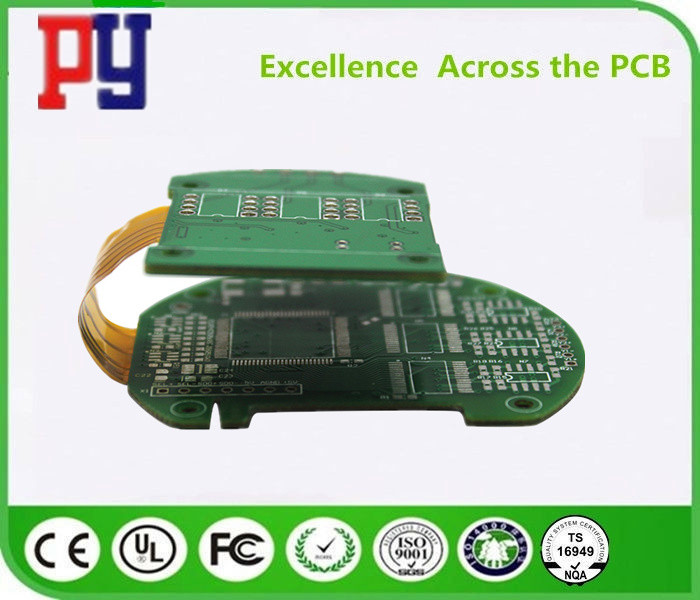

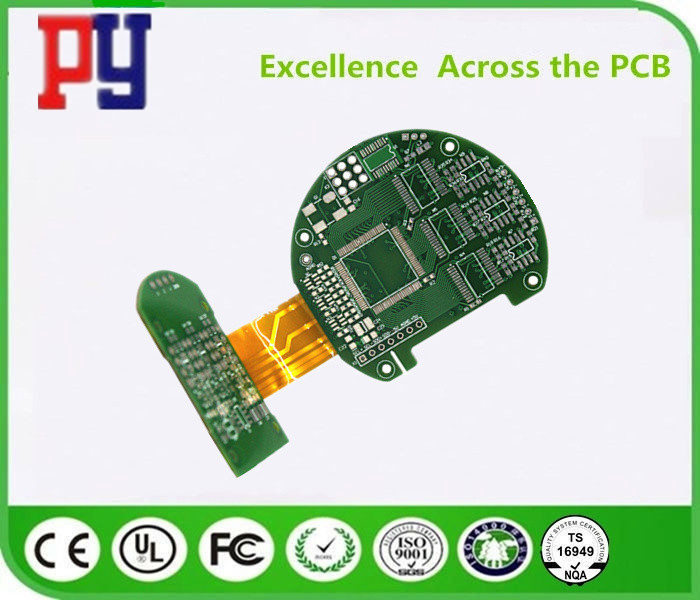

4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application

4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application

    • 4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application
    • 4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application
    • 4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application
  • 4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application

    Product Details:

    Place of Origin: China
    Brand Name: OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 5PCS
    Price: Negotiation
    Packaging Details: box
    Delivery Time: 3-10 days
    Contact Now
    Detailed Product Description
    PCB: Universal Pcb Board / HDI Circuit Boards Place Of Origin:: China
    NAME:: FR4 Circuit Board Outer:: Carton Box
    Packaging Details:: Inner: Vacuum-packed Special Process: ENIG
    Thickness Range: 1.0mm

    Quick Detail:



    1.Number of Layers: 4 layers

    2.1.6mm thickness, 1oz copper

    3.Multilayer rigid-flex pcb

    4.Surface finish : NiAu

    5.Green solder mask

    6.White silkscreen





    Specification:

    Material FR4
    Layer count 4 layers
    Board thickness 1.6mm
    Copper thickness 1oz
    Minimum drill size 0.2mm
    Minimum trace & gap 0.2mm
    Surface finish NiAu
    Applications Medical
    Special Technology Flex: layer 4
      copper filled vias

    4 Polyimide Rigid Flex PCB Digital Television D Tinned Circuit Board Industry Application

    Applications:


    Communications
    Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.

    Computer Peripherals
    High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.

    Consumer
    Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.

    Automotive
    Passenger safety systems, engine control systems, air bags, traction control products, etc.

    High End Computing and Storage
    High performance computer and server, mainframe system and storage equipment, memory, etc.

    Industry
    Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc

    Medical
    Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.

    Military
    Satellite, radar, airplane, control unit, communication equipment .etc.

    Test & Measurement
    Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.



    Capability


      High precision prototype PCB bulk production
    Max Layers 1-28 layers 1-14 layers
    MIN Line width(mil) 3mil 4mil
    MIN Line space(mil) 3mil 4mil
    Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
    Board thickness≤2.5mm 0.2mm 0.3mm
    Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
    Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
    Board thickness MAX 8mm 7mm
    MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
    MAX Board size 610*1200mm 610*1200mm
    Max copper thickness 0.5-6oz 0.5-6oz
    Immersion Gold/
    Gold Plated Thickness
    Immersion Gold:Au,1—8u”
    Gold finger:Au,1—150u”
    Gold Plated:Au,1—150u”
    Nickel Plated :50—500u”

    Hole copper thick 25um 1mil 25um 1mil
    Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
    1.0mm<Board thickness≤2.0mm:+/-10%
    Board thickness>2.0mm:+/-8%
    Board thickness≤1.0mm:+/-0.1mm
    1.0mm<Board thickness≤2.0mm:+/-10%
    Board thickness>2.0mm:+/-8%
    Outline Tolerance ≤100mm:+/-0.1mm
    100< ≤300mm:+/-0.15mm
    >300mm:+/-0.2mm
    ≤100mm:+/-0.13mm
    100< ≤300mm:+/-0.15mm
    >300mm:+/-0.2mm
    Impedance ±10% ±10%
    MIN Solder mask bridge  0.08mm  0.10mm
    Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm








    Advantages


    1. PCB factory directly
    2. Comprehensive quality control system
    3. Competitive price
    4. Quick turn delivery time from 48hours.
    5. Certificates (ISO/UL E354810/RoHS)
    6. 9 years experience in exporting service
    7. No MOQ/MOV.
    8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
