Home ProductsSMT PCB Board

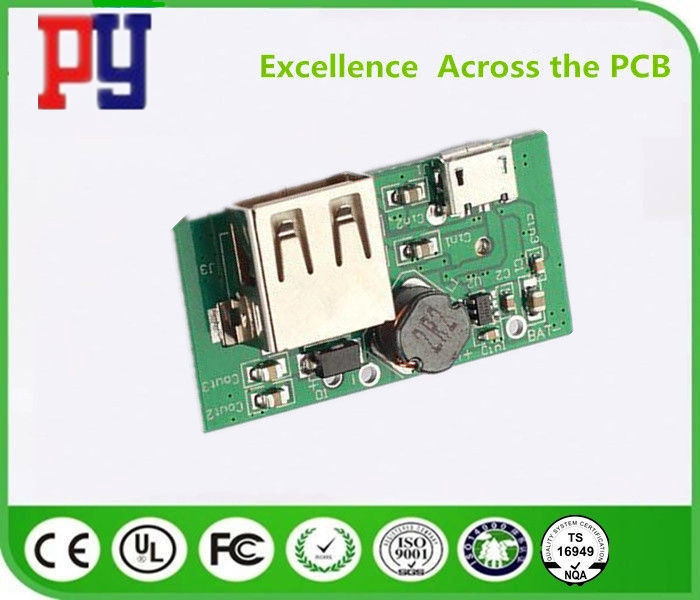

Hardware Power Supply PCBA Board Harger Silicone Power Ion Balance Wristbands

Hardware Power Supply PCBA Board Harger Silicone Power Ion Balance Wristbands

    • Hardware Power Supply PCBA Board Harger Silicone Power Ion Balance Wristbands
    • Hardware Power Supply PCBA Board Harger Silicone Power Ion Balance Wristbands
  • Hardware Power Supply PCBA Board Harger Silicone Power Ion Balance Wristbands

    Product Details:

    Place of Origin: china
    Brand Name: py
    Model Number: SATA USB3.0 Adapter Card

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: box
    Payment Terms: L/C, T/T
    Supply Ability: 1000/㎡/day
    Contact Now
    Detailed Product Description
    Place Of Origin: China ShenZhen Brand Name: OEM
    Product Name: PCBA 0.8-1.2mm Copper Thickness: 1oz
    Surface Finish: HASL Lead Free/HAL Hole Wall Copper Thickness: ≥20μm
    Packaging: Inner: Vacuum-packed In Soft Plastic Bales Outer: Cardboard Cartons With Double Straps Application: Communication,automobile,cell,computer,medical
    Advantage: Competitive Price,Fast Delivery,OEM&ODM,Free Samples, Special Requirements: Buried And Blind Via, Impedance Control, Via Plug, BGA Soldering And Gold Finger Are Acceptable

    • Power PCBA

    • Touch Power PCBA

    • Car charger PCBA

    • Fast charge PCBA

    • WIFI power PCBA

    • LCD Power PCBA

    • Three anti PCBA

    • Clip Power PCBA

    • Common Power PCBA

    • Solar Power PCBA

    • Wireless Power PCBA

    • Software Power PCBA

    • Hardware Power PCBA

    • Digital Tube PCBA

    • Car Power PCBA







    PCBA Mobile hardware power supply charger silicone power ion balance wristbands power ma





    Advantages
    a) FR-4 Single sided PCB with competitive price.
    b) RoHS compliant and suitable for thermal reliability needs,and Lead free assemblies with a maximum reflow temperature of 260℃.
    c) Engineering design prevents problems from occurring in pre production.
    d) DDU Door to door shipment with competitive shipping cost. You don’t need to arrange anything after confirming the order. Just wait for your PCB delivery to your hand.

    More Applications in Electronics
    Battery Charger
    PLC
    Wireless
    RF
    Wifi Router

    Design for Manufacture (1)

    Serial NO. Procedure Item Manufacturing capability
    Large volume (S<100 m²) Middle volume (S<10 m²) Prototype(S<1m²)

    1 Inner layer(18um, 35um, 70um etc are finished copper. If not mentioned copper, finished 1oz is the default value ) Min.isolation of layers 0.1mm 0.1mm 0.06mm
    2 Min.track and spacing 5/5mil(18um) 4/4mil(18um) 3/3.5mil(18um)
    3 5/5mil(35um) 4/4mil(35um) 3/4mil(35um)
    4 7/9mil(70um) 6/8mil(70um) 6/7mil(70um)
    5 9/11mil(105um) 8/10mil(105um) 8/9mil(105um)
    6 13/13mil(140um) 12/12mil(140um) 12/11mil(140um)
    7 Min.distance from drill to conductor 4 Layer 10mil,6 layer 10mil,8-12 layer 12mil 4 layer 8mil,6 layer 8mil,8-12 layer 10mil,14-20 layer 14mil,22-32 layer 18mil 4 layer 6mil,6 layer 6mil,8-14 layer 8mil,16-22 layer 12mil,24-32 layer 14mil
    8 Min.width of annular ring on inner layer 4 Layer 10mil(35um),≥6 Layer 14mil(35um) 4 Layer 8mil(35um),≥6 layer 12mil(35um) 4 Layer 6mil(35um),≥6 Layer 10mil(35um)
    9 Inner layer isolation ring width(Min) 10mil (35um) 8mil (35um) 6mil (35um)
    10 Min.via pad diameter 20mil (35um) 16mil (35um) 16mil (35um)
    11 Min. distance from board edge to conductor(no copper exposured)(inner layer) 14 mil(35um) 12 mil(35um)) 8 mil(35um)
    12 Maximum copper weight(Inner layer and outer layer) 3 OZ( 105 um ) 4 OZ ( 140 um ) 6 OZ( 210 um )
    13 Core with different copper foil on both sides / 18/35,35/70 um 18/35,35/70 u

    2oz (70um) Copper Double Sided HASL Lead Free PCB 1.6mm Thick Green Solder Mask Small Runs to Mass Production



    Advantages



    1. HASL has excellent wetting during component soldering and it can avoid copper corrosion

    2. Save the cost of production: Production cost is one of the key points of our customers’ product competitiveness. Bicheng PCB have been striving to reduce its manufacturing cost from equipment introduce, worker training and technology improvement to increase their profitability. Customers are satisfied with our cost savings but without quality loss.

    3. Great customer service

    4. Customer complaint rate: <1%

    5. Delivery on time: >98%



    Applications



    WiFi Card

    Bluetooth Printer

    Wireless Range Extender

    Electric Motors

    Tracking Device

    Wireless Security System

    Access Control

    Data Logger

    Intercom System

    Surveillance System
