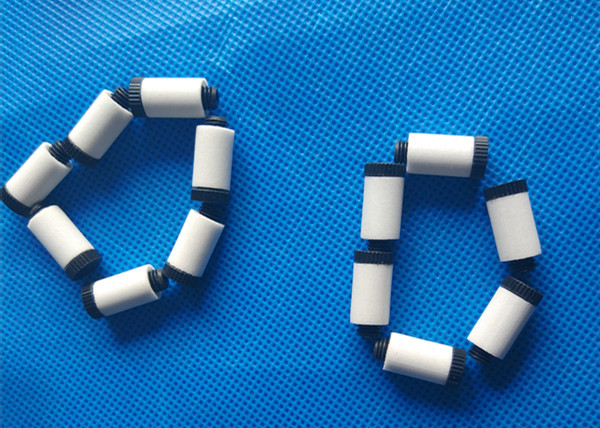

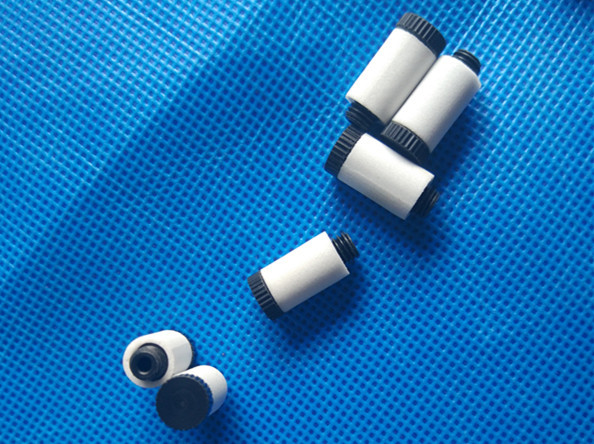

$KM-05 MUFFLER Surface Mount Parts for YAMAHA Smt placement equipment

$KM-05 MUFFLER for YAMAHA Smt placement equipment use

90990-22J002/KM1-M7141-00X PACKING(MYA-10a)Part nr.: 5322 466 62416

1 KV8-M7101-00X HOUSING HEAD 1

2 KG2-M7181-00X PACKING 28 MYA 4

2-1 90990-22J001 PACKING 28 MYA 4

3 KM1-M7140-00X PACKING 16 MYR-6

3-1 90990-22J003 PACKING 16 MYR-6

4 KM1-M7141-00X PACKING 20 MYA-10A

4-1 90990-22J002 PACKING 20 MYA-10A

5 KV8-M7103-00X PISTON PLUG 4

6 KV8-M71Y5-00X PACKING 4 MYA-12.5

6-1 90990-22J015 PACKING 4 MYA-12.5

7 K65-M257M-00X O-RING 3 20 S12.5

7-1 90200-01J125 O-RING 3 20 S12.5

8 KV8-M7103-10X PLUG 4

9 KV8-M7104-00X PISTON 8

10 KM1-M7107-00X PACKING 8 LO43165

10-1 90990-22J006 PACKING 8 LO43165

11 KV8-M71VS-00X COLLAR, SENSOR 12

12 KGB-M7184-00X BOLT, HEXA.S.H 7 M3X60

13 KV8-M71RJ-00X COLLAR BRG. 4

14 KG7-M7137-A0X LEAF SPRING 8

15 KG7-M7169-00X SCREW 8

16 KG7-M7170-00X WASHER 8

16-1 90990-28J002 WASHER PLAIN 8 2003.03 M330113

17 KV8-M7109-00X COLLAR 1 HEAD 4

18 90933-03J128 BRG. 24 MF128ZZS

19 KGB-M7167-00X PULLEY 8

20 KV8-M7154-00X SPG.RETURN 4

21 KV8-M7108-00X NUT 8

22 90933-02J604 BRG. 8 604ZZ

23 99001-03600 CIRCLIP 8

23-1 90990-01J030 CIRCLIP 8 2001.12 M1Y0129

24 KU1-M7152-00X WASHER 1 THURUST 8

25 KV8-M7110-00X COLLAR 2 HEAD 4

26 KV8-M71X2-00X SPG.RETURN 4

27 KV8-M71X1-00X SPG.LOCATE 4

28 KV8-M71R1-XXX SHAFT 1 SEL 4

29 KV8-M71R2-01X BLOCK STOPPER 4

30 KV7-M71M6-01X SCREW NOZZLE 8

31 KV8-M71R5-02X PIN LOCATE 4

32 KV8-M71R9-00X CAM 8

33 KGB-M71RA-00X BEVEL - GEAR 1 4

34 KV8-M71RB-A0X BEVEL - GEAR 2 ASSY. 4

35 KV8-M71RC-00X PIN CAM 8

36 KV8-M71RD-00X CIRCLIP 16 E0.8

36-1 90440-10J008 CIRCLIP 16

37 KV8-M71RE-00X WASHER 4

38 99009-12800 CIRCLIP 4 S12

39 KV8-M71U0-01X NOZZLE, INDEX ASSY 4

39-1 KV8-M711N-A0X NOZZLE&SHAFT ASSY 4 2001.08.27 M180124

40 KGB-M71R7-00X HOLDER BRG. 4

40-1 KGB-M71R7-01X HOLDER BRG. 4 2005.05.26 MB50099

41 KV8-M71R8-00X COLLAR BRG. 4

41-1 KGB-M71R8-00X COLLAR BRG. 4 2005.05.26 MB50099

42 90933-01J801 BEARING 4

43 KGB-M7111-00X PULLY POST 1

44 KV8-M7115-00X SHAFT 1 TENSION 4

45 KGB-M7116-00X PULLY 2 1

46 KV8-M7117-00X BLOCK, ADJUST 1

47 KV8-M7119-00X BLOCK, ADJUST 1

48 KV8-M7131-01X BRACKET, Z SENSOR 1

49 KV8-M7166-00X PLATE, VALVE 1

50 KGB-M71V1-01X SENSOR, STAY F 1 Z2

51 KGB-M71V2-01X SENSOR, STAY R 1 Z2

52 KV8-M71V3-00X BRACKET, LOCK SENSOR 1

53 KGB-M71VC-00X HOLDER PULLEY 1 2002.2.1

54 KGB-M71Y1-01X COLLAR 1 PULLEY 1

55 90933-01J800 BEARING 2

56 99009-10800 CIRCLIP 1 ISTW-10

57 KGB-M71Y9-00X BODY, CYLINDER 1

58 KV8-M71YA-00X VALVE CLUTCH 4

59 KV8-M71YB-00X PACKING 8

59-1 90990-22J005 PACKING 8

60 91317-05006 BOLT HEX.,SOCKET HEAD 8 M5X5 2002.01.08

M210011

61 KM1-M7105-00X PLUG 2 8

62 KM1-M7112-01X STOPPER 1

63 KGB-M7181-00X BELT, HEAD 2

64 92A08-03303 SET SCREW 16 M3X3

65 KM1-M7186-00X O-RING 4 5X1.0

65-1 90990-17J007 O-RING 4 5X1.0

66 KV7-M654F-00X SENSOR 3 4 E2S-Q22 (CLUTCH)

67 KV8-M653F-A0X SENSOR 3 4 E2S-Q22 (1,3,5,9)

68 KV7-M654G-00X SENSOR 4 4 E2S-Q22B (2,4,6,8)

69 KV8-M653H-00X SENSOR 5 ASSY 1 (NOZZLE POS.)

69-1 KV8-M653H-A0X SENSOR 5 ASSY 1 2001.06.27 M160170

70 KGB-M653A-00X SENSOR HEAD ASSY 3

70-1 KGB-M653A-01X SENSOR HEAD ASSY 3 2004.03.18 M430057

71 KGB-M653F-10X SENSOR, 3 ASSY. 1 EE-SX872P (R-ORG)

72 93604-06083 PIN DOWEL 6 4X6

72-1 90990-20J001 PIN DOWEL 6 4X6 2002.02.19 M220087

73 99480-04008 PIN PARALLEL 8 4X8

74 90110-03248 BOLT HEXA.S.H 7 M3X55

74-1 91317-03055 BOLT HEXA.S.H 7 2003.07 M370057

75 92D18-02008 BOLT HEX 12 M2X0.4X6

75-1 90115-02J008 BOLT HEX 12 2002.08 M280085

76 $KM-05 MUFFLER 7

77 $SLH8-01 JOINT 2

78 $TSH6-01 JOINT 2

79 KV8-M7162-00X SOLENOID VALVE(UNIT) 1

80 KGB-M7163-00X EJECTER RESIN 1

81 KGB-M71V9-00X COVER 2

82 90563-23J060 SPACER 4

83 KV8-M71VB-00X COVER SENSOR 1

84 KGB-M7169-00X SPACER 1

85 KGB-M7170-00X GEAR 1 1

86 KGB-M7171-00X GEAR 2 1

87 KGB-M7172-00X COLLAR 1, GEAR 1

88 KGB-M7173-00X COLLAR 2, GEAR 1

89 KGB-M7174-00X SHAFT, GEAR 1

90 90933-02J085 BEARING 2 MR85ZZS

91 KGB-M7179-00X COVER, GEAR 1

92 KGB-M7185-00X PLATE 2, NUT 1

93 KGB-M7183-00X PLATE, EJECTOR 1

94 KV8-M71VR-00X PLATE, NUT 8

95 KM1-M4592-12X VAC SENSOR BOARD ASSY. 8

95-1 KM1-M4592-13X VAC SENSOR BOARD ASSY. 8 2005.04.19

MB40065

96 KGB-M711S-A0X FNC SHAFT, SPARE 1 SPARE PARTS

97 KGB-M712S-A0X STD. SHAFT 1, SPARE 1 SPARE PARTS

98 KV8-M7103-A0X PISTON PLUG ASSY 4

99 KV8-M7103-B0X PLUG ASSY 4

100 KV8-M7104-A0X PISTON ASSY 8

101 KGB-M71S0-50X STD. SHAFT 3, SPARE 1 SPARE PARTS

2002.10.18 M200051

102 KGB-M711S-B0X FNC SHAFT, SPARE 1 NOZZLE CIRCLE

2002.12.13 M2Y0031

103 KV8-M712N-A0X NOZZLE&SHAFT ASSY 1 NOZZLE CIRCLE

2001.09.05 M190016

104 KGB-M71R9-00X PLATE, BRG 4 2005.05.26 MB50099

105 92A08-04305 SET SCREW 3 M4X5

106 KGB-M71Y9-A0X BODY, CYLINDER ASSY 1 2001.02.02

M110144

107 KH1-M7105-A0X PLUG2 ASSY 8

108 KGB-M71VD-00X NUT GEAR 1 2004.02.03 M420001

109 KGB-M7163-A0X EJECTOR 1 SPARE PARTS

110 KM1-M7163-20X VALVE 1 SPARE PARTS

111 KM1-M7163-30X VALVE 1 SPARE PARTS

112 M46-M8527-C0X FILTER 1 SPARE PARTS 2001.02.02

113 90990-17J00B O-RING 1 SPARE PARTS

114 KM5-M7174-F0X FILTER CAP 1 SPARE PARTS 2001.02.02

M120012

115 90990-17J010 O-RING 1

116 KM5-M7174-G0X FILTER CAP 1

117 KV8-M7162-20X VALVE 1 SPARE PARTS

118 KV8-M7162-10X VALVE 1 SPARE PARTS
