Ping You Industrial Co.,Ltd
SMT Equipment Spare Parts Supplier&
PCB PCBA processing and production
|Place of Origin:||ShenZhen|
|Minimum Order Quantity:||1PCS|
|Packaging Details:||High quality carton packing, high quality vacuum packing,|
|Delivery Time:||5-10 work days|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||Ten thousand square meters per month|
|Processing Technology:||Electrolytic Foil||Reinforced Material:||Fiberglass Cloth Base|
|Insulation Materials:||Organic Resin||Insulation Thickness:||Conventional Board|
|Mechanical Rigidity:||Rigidity||Number Of Layers:||Multi-layer|

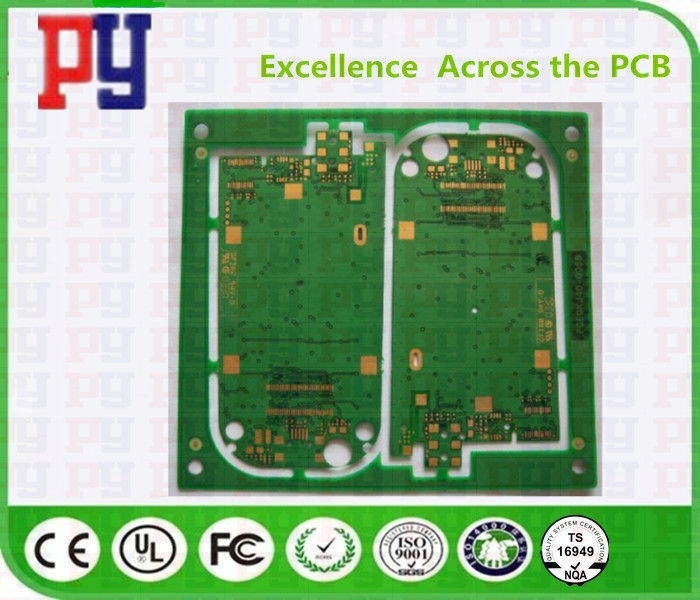

0.5mm Double Sided PCB Board,
Custom Made Double Sided PCB Board,
0.5mm 2 Sided PCB Board
Single-sided and double-sided led light board reformation and custom-made drive-free welding
PCB Printed Circuit Board (SMT) Product Capacity
|PCB Max. size||580mm*1100mm(SMT)|
|Chip component||0201, package|
|Min.pin space of IC||0.5mm|
|Min. space of BGA||0.5mm|
|Max.precision of IC assembly||±0.01mm|
|Assembly capacity||≥8 million piots/day|
|DIP capacity||DIP production lines|
|Assembly testing||Bridge test,AOI test|
FCT(Functional Circuit Test)
|Current test, voltage test,Different test can be done according to your requirement.|
The names of the circuit boards are: circuit boards, PCB boards, aluminum substrates, high frequency boards, PCBs, thinner circuit boards, thinner circuit boards, printing (copper etching technology)
1,Circuit boards, etc. The circuit board makes the circuit miniaturized and intuitive, which plays an important role in the mass production of fixed circuits and optimizing the layout of electrical appliances.
The circuit board is mainly composed of pads, vias, mounting holes, wires, components, connectors, filling, electrical boundary circuit board industrial areas, etc., each composed of
The main functions of the part are as follows:
Pad: A metal hole used to solder the pins of components.
Vias: There are metal vias and non-metal vias. Metal vias are used to connect component pins between layers.
Mounting hole: used to fix the circuit board.
Wire: The copper film of the electrical network used to connect the pins of the components.
Connectors: components used to connect between circuit boards.
Filling: Copper coating for ground wire network, which can effectively reduce impedance.
Electrical boundary: used to determine the size of the circuit board, all components on the circuit board cannot exceed the boundary.
Pingyou Industrial Co., Ltd
Provides the World′s Quickest - PCB Board Design to Loaded Assembly. If getting your design manufactured and to the marketplace first is critical to your success Pingyou Industrial is a great solution. No one beats our New Product Introduction (NPI) and New Product Development (NPD) capabilities. Zhongrun High-tech supports "ANY" or "ALL" of your PCB Board: Design, Layout, Bare Board Fabrication, Assembly, and Complete Box Build needs.
Pingyou Industrial offers the "World′s Quickest" service through our unique and dynamic capabilities. We control the entire process - Idea thru. Finish Product - and have the systems in place to seamlessly process from one step to another. This allows unparalleled cycle time reduction. Pingyou Industrial also eliminates the blame game, as we can handle it all.
1. Are you headquarter or branch?
We are Ping you headquarter and factory.
2. Can I ask for samples before placing an order?
Yes, we welcome sample order to test and check quality,Miced samles are acceptable.
3. How to be your overseas agent?
Depends which area you are located in,Every conuntries are different.
4. What need I do if I want to pint my own logo?
First, please send us your logo flie in high resolution, We will make some drafts for your reference to confirm the position and size of your logo.Next we will 1-2 samples for you to check the actual effect.Finally the formal production will start after the sample confrimed .
5. Can you ship the goods to my agent or shipping forwarder in China?
Yes,We can,please kindly contact with your agent in advance and us detailed address.
Contact Person: PYPCB-Vera
