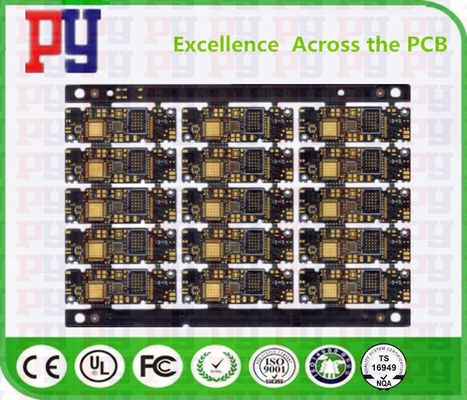

1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided

1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided

  • 1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided
  • 1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided
  • 1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided
  • 1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided
1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided
Product Details:
Place of Origin: ShenZhen
Brand Name: PY
Certification: ISO9001
Model Number: PCBA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 0.1-1USD
Packaging Details: High quality carton packing, high quality vacuum packing,
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: Ten thousand square meters per month
Contact Now
Detailed Product Description
Color: Black Number Of Plies: 1 Layer
Copper Thickness: 2oz Base Material: 94V0
Board Thickness: 1 Mm Place Of Origin: Guangdong, China (Mainland)
High Light:

94V0 Copper PCB Printed Circuit Board

,

94V0 Copper Printed Circuit Board

,

94V0 Single Sided PCB

1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided


Ping You Industrial Co.,Ltd
Ping You Industrial Co.,Ltd
is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.Topfast is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.





Advantages

1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc



Capability


1 High precision prototype PCB bulk production

2

1-28 layers 1 layers
3 3mil 2mil
4 0.15mm 1mm
5 Aspect Ration≤13:1 Aspect Ration≤13:1
6 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 1 layers
7 Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”
Nickel Plated :50—500u”
8 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm
9 ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.1mm
10 ±10% 5%



1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided 0

1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided 1



PCB circuit board (PCB)

also known as printed circuit boards, printed circuit board,

or PCB, English abbreviation PCB (printed circuit board) or the PWB (printed wiring

board), insulation board as base material, cut into a certain size, with at least one

conductive graphics, and cloth have a hole (such as component hole, fastening hole,

hole metallization, etc.), is used to replace previous device electronic components of

the chassis, and realize the connection between the electronic components.Because the

board is made by electronic printing, it is called "printed circuit board".The

customary term "printed circuit board" is not accurate, because there are no "printed

components" on the printed board, only the wiring.
Second, the basic composition
At present, the circuit board is mainly composed of the following:
1. Circuit and Pattern: The circuit is used as a tool to conduct between the original

parts. In the design, a large copper surface will be additionally designed as the

grounding and power layer.The lines and drawings were made at the same time.
2, Dielectric layer (Dielectric) : used to maintain the insulation between the lines

and the layers, also known as the substrate.
3, hole (Through hole/via) : Through hole can make more than two levels of lines

Through each other, the larger Through hole is used as part plug-in, in addition to

the non-through hole (NPTH) is usually used as a surface mount positioning, fixing

screws used during assembly.
4, Solder resistant ink (Solder resistant /Solder Mask) : not all copper surface to

eat tin parts, so non-tin eating area, will print a layer of isolation copper surface

to eat tin material (usually epoxy resin), to avoid short circuit between non-tin

eating tin lines.According to different technology, divided into green oil, red oil,

blue oil.
5. Legend /Marking/Silk screen: This is not necessary. Its main function is to mark

the name and position box of each part on the circuit board, which is convenient for

maintenance and identification after assembly.
6, Surface treatment (Surface Finish) : because the copper Surface in the general

environment, it is easy to oxidize, leading to the tin (poor soldering), so it will be

protected on the copper Surface to eat tin.The protection methods are HASL, ENIG,

Silver, Tin, OSP, each method has its advantages and disadvantages, collectively

referred to as surface treatment.



RFQ

1. Are you headquarter or branch?
We are Ping you headquarter and factory.



2. Can I ask for samples before placing an order?
Yes, we welcome sample order to test and check quality,Miced samles are acceptable.



3. How to be your overseas agent?
Depends which area you are located in,Every conuntries are different.



4. What need I do if I want to pint my own logo?
First, please send us your logo flie in high resolution, We will make some drafts for your reference to confirm the position and size of your logo.Next we will 1-2 samples for you to check the actual effect.Finally the formal production will start after the sample confrimed .



5. Can you ship the goods to my agent or shipping forwarder in China?
Yes,We can,please kindly contact with your agent in advance and us detailed address.



6. How can you solve the problem if receive the defective goods?
Will check all the products before delivery,Please kindly provide the pictures or video and send back to china or our local agent,After they checking,will replace new or fix free.

1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided 2



1 Layer 94V0 Copper PCB Printed Circuit Board Black Oil Single Sided 3

Contact Details
Ping You Industrial Co.,Ltd

Contact Person: PYPCB-Vera

Tel: +8615565599032

Send your inquiry directly to us (0 / 3000)
