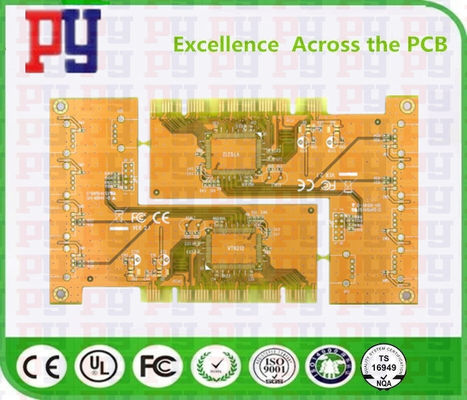

Rigid Lead Free HASL PCB Printed Circuit Board For Industry Assembly

Place of Origin ShenZhen
Brand Name PY
Certification ISO9001
Model Number PCBA
Minimum Order Quantity 1PCS
Price 0.1-1USD
Packaging Details High quality carton packing, high quality vacuum packing,
Delivery Time 5-10 work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability Ten thousand square meters per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Green,blue,yellow,black Number Of Plies 4 Layer
Copper Thickness 2oz Base Material FR-4,HDI
Board Thickness 1.2mm Place Of Origin Guangdong, China (Mainland)
Surface Finishing HASL(lead Free) Min. Hole Size 3mil
High Light

HASL PCB Printed Circuit Board


HASL Lead Free PCB


0.6um PCB Printed Circuit Board

Leave a Message
Product Description

 Rigid Lead Free HASL PCB Printed Circuit Board For Industry Assembly

Introduction of printed circuit board assembly (PCBA) process flow
Electrons are an indispensable part of our daily life.Everything from smartphones to cars includes electronics.At the heart of these electronic products are printed circuit boards, also known as PCBs.
Most people recognize a printed circuit board when they see it.These are small green chips covered with lines and copper parts that you can find in the heart of visceral electronics.The plates are made of fiberglass, copper wire and other metal parts, held together with epoxy resin and insulated with a solder resistance film.This solder resistance film is characteristic of where the green comes from.
But have you ever observed those components stuck?Never think of them as decoration on a PCB.An advanced circuit board will not be able to provide its functionality until the components are installed on it.PCBs with components are called assembly PCBs, and the manufacturing process is called PCB assembly or PCBA for short.Copper wires on the bare board (called trace wires) electrically connect the connectors and components to each other.They run signals between these functions, allowing the board to operate in a specially designed way.These features range from simple to complex, but PCB sizes can be smaller than thumbnails.
So how exactly are these devices made?The PCB assembly process is simple and includes several automatic and manual steps.Through each step of the process, the board manufacturer has manual and automatic options for you to choose from.To help you better understand the PCBA process from start to finish, we explain each step in detail below.


category project Description
Base Material fr-4  Ordinary Tg,


   PCB 0-10LAYER
Rigid PCB 2-18LAYER
Board Thickness Rigid PCB 0.6MM
0.08 0.08MM
Rigid  PCB 0.4-6.0MM
Copper Thickness inner layer 2 OZ
outer layer 2 OZ
Surface Finishing Hasl 0.6um
Immersion Gold 0.6um
OSP 0.2um
Immersion tin 0.8um
Solder mask color outer layer Green
Character color outer layer white ,black, yellow
Min. Line Width inner layer 0.05MM
outer layer 0.05MM
Min. Line Spacing inner layer 0.05MM
outer layer 0.05MM
Drill Hole Max Diling dameter 6.5MM
Min Diling Diameter 0.1mm
MinSlot 0.60MM
Drilig tolerance PTH:+/-0.075mm NPTH:+/-0.05mm
Slot tolerance PTH:+/-0.10mm NPTH:+/-0.05mm
Board Size Rigid PCB 800*2000MM
fpc PCB 200*800MM
Rigid -Flexible PCB 200*500MM
Drill Aspect Ratio Mechanical hole 12.0:1.0
blind hole 1.0:1.0
Solder mask bridge green oil 0.08MM
white,blue,yellow,red 0.1MM
black oil 0.12MM
Bow and Twist Rigid PCB 0.5-0.75%
core thickness Rigid PCB 0.075MM (excluding copper)
Resin plug hole hole size 0.2-0.35mm
Carbon oil thickness 10um(min)
V - cut Rigid PCB 30 45 60 (Tolerance: + / - 5 degrees)
impedance 50-120 ohm Tolerance: + / - 10 %
PP type Commonly used 1080,2116,7628 ,106

Two types of installation technologies are prevalent in the modern PCBA industry:
Surface mount technology: Sensitive components, some very small components, such as resistors or diodes, are automatically placed on the surface of a circuit board.This is called an SMD component and is used for surface mount devices.Surface mount technology can be applied to small size components and integrated circuits (ICs).For example, PCBCart can install packaging in minutes.Size 01005, even smaller than pencil point size.
Through hole technology: for components with leads or wires, they must be mounted to the board through holes inserted into the board.Additional lead sections must be soldered to the other side of the board.This technology is suitable for PCB components containing large components, such as capacitors, coils to be assembled.
Rigid Lead Free HASL PCB Printed Circuit Board For Industry Assembly 0Rigid Lead Free HASL PCB Printed Circuit Board For Industry Assembly 1
Ping You Industrial Co.,Ltd
Ping You Industrial Co.,Ltd is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.Topfast is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.
