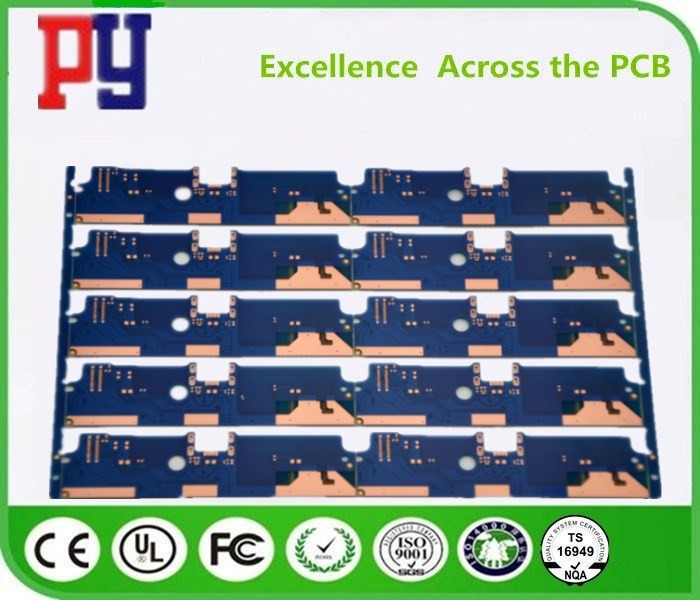

FR4 Aluminum Hight TG 4oz PCB Circuit Board 1.6mm Thickness

Place of Origin ShenZhen
Brand Name PY
Certification ISO9001
Model Number PCB
Minimum Order Quantity 1PCS
Price USD:0.1-1\PCS
Packaging Details Vacuum packing, high quality carton
Delivery Time 5-10 work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability Ten thousand square meters per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Green,Red,Blue Number Of Plies 2-4-6-8 Layer
Copper Thickness 4oz Base Material FR4 Aluminum ,Hight TG
Board Thickness 0.6~1.0~1.2~1.6mm Place Of Origin Guangdong, China (Mainland)
Min. Hole Size 3mil
High Light

4oz PCB Circuit Board


FR4 Aluminum PCB Circuit Board


1.6mm FR4 PCB

Leave a Message
Product Description

FR4 Aluminum Hight TG 4oz PCB Circuit Board 1.6mm Thickness


PCB circuit board (PCB),


also known as printed circuit boards, printed circuit board, or PCB, English abbreviation PCB (printed circuit board) or the PWB (printed wiring board), insulation board as base material, cut into a certain size, with at least one conductive graphics, and cloth have a hole (such as component hole, fastening hole, hole metallization, etc.), electronic components at the bottom of the plate used instead of previous unit, and realize the connection between the electronic components.Because this kind of plate is made by electronic printing, it is called "printed circuit board".The customary term "printed circuit board" is not accurate, because there are no "printed components" on the printed board, only the wiring.


Product parameters


  High precision prototype PCB bulk production
Max Layers 4 layers 4 layers
MIN Line width(mil)   4mil
MIN Line space(mil   4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.2mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.2mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration
Board thickness MAX 4mm 4mm
MIN 4 layers:0.35mm; 4 layers:0.4mm;
MAX Board size 620*1200mm 620x1200mm
Max copper thickness 4oz 1oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance
Impedance ±10% ±10%
MIN Solder mask bridge  0.05mm  0.08mm
Plugging Vias capability  0.60mm  0.80mm



Introduction of printed circuit board assembly (PCBA) process flow

Electrons are an indispensable part of our daily life.Everything from smartphones to cars includes electronics.At the heart of these electronic products are printed circuit boards, also known as PCBs.
Most people recognize a printed circuit board when they see it.These are small green chips covered with lines and copper parts that you can find in the heart of visceral electronics.The plates are made of fiberglass, copper wire and other metal parts, held together with epoxy resin and insulated with a solder resistance film.This solder resistance film is characteristic of where the green comes from.
But have you ever observed those components stuck?

Never think of them as decoration on a PCB.An advanced circuit board will not be able to provide its functionality until the components are installed on it.PCBs with components are called assembly PCBs, and the manufacturing process is called PCB assembly or PCBA for short.Copper wires on the bare board (called trace wires) electrically connect the connectors and components to each other.They run signals between these functions, allowing the board to operate in a specially designed way.These features range from simple to complex, but PCB sizes can be smaller than thumbnails.

So how exactly are these devices made?


The PCB assembly process is simple and includes several automatic and manual steps.Through each step of the process, the board manufacturer has manual and automatic options for you to choose from.To help you better understand the PCBA process from start to finish, we explain each step in detail below.Basics of PCB design

The PCBA process always starts with the most basic unit of the PCB: the base consists of multiple layers, each of which plays an important role in the functionality of the final PCB.These alternate layers include:
Substrate: This is the base material for PCB.It gives the PCB rigidity.
Copper: Add a thin layer of conductive copper foil to each functional side of the PCB



PCBA using hybrid technology should be performed under the following conditions:
? Single-sided Mixed Components: Single-sided Mixed Components conform to the following manufacturing procedures: Note: When only a small number of THT components are required in such components, hand soldering may be used instead of wave soldering.
? Single-sided SMT and Single-sided THT: Note - this type of PCB assembly procedure is not recommended as adhesives can add to the total cost of PCBA and may cause some soldering problems.
? Two-sided mixed assembly: In terms of the two-sided mixed assembly method, there are two options: PCBA with adhesive and PCBA without use.The use of adhesives increases the total cost of PCB assembly.Moreover, in this PCBA process, heating must be done three times, which often leads to inefficiency.
Based on the comparison between the hybrid assembly procedures described above, it can be concluded that manual welding is suitable for PCB assembly, which requires many components on both sides, with more SMD components than THT components.Therefore, when a small number of THT elements are required, wave soldering is recommended.
PCB assembly must go through such a complex and technical process that many elements must be carefully considered, and minor modifications can lead to huge changes in cost and product quality.The description of the PCB assembly process in this article centers only on typical PCBA programs and techniques.The actual manufacturing process depends to a large extent on the design document and the specific requirements of the customer.Therefore, how to evaluate a reliable PCB assembler becomes a key issue that customers must consider before placing a PCBA order.

FR4 Aluminum Hight TG 4oz PCB Circuit Board 1.6mm Thickness 0FR4 Aluminum Hight TG 4oz PCB Circuit Board 1.6mm Thickness 1FR4 Aluminum Hight TG 4oz PCB Circuit Board 1.6mm Thickness 2
