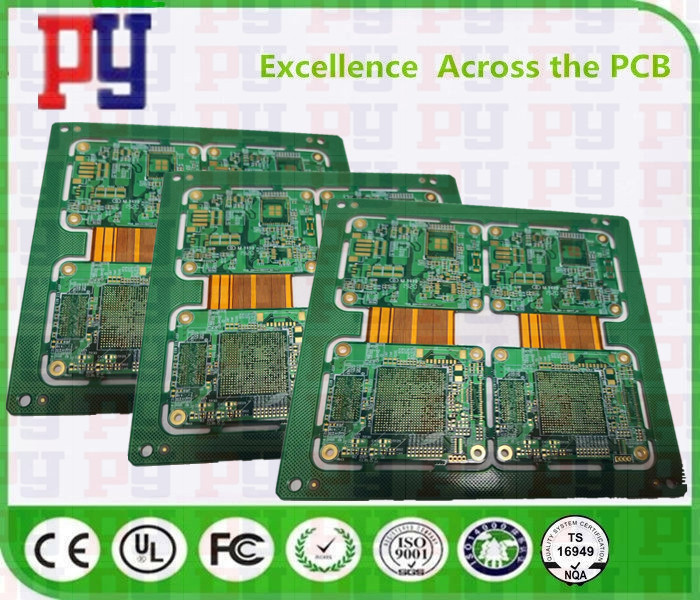

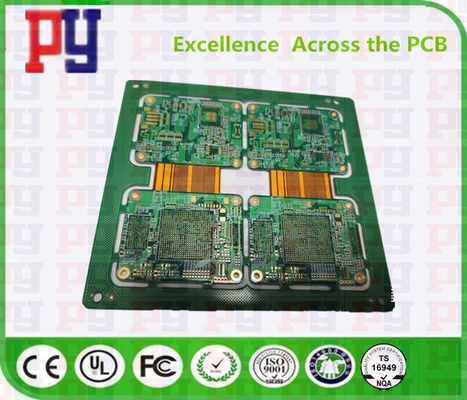

HASL lead Free 4oz FR4 Double Sided PCB Board 8 Layers
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Color||Green,Red,Black,Yellow,White,Blue||Number Of Plies||2-4-6-8-10-12-16-20-22-28 Layer|
|Copper Thickness||1-4oz||Base Material||FR4 ,Rogers , Aluminum ,Hight TG|
|Board Thickness||0.6～1.0～1.2～1.6～2.0～2.5～3.0～3.2mm||Place Of Origin||Guangdong, China (Mainland)|
|Surface Finishing||HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver||Min. Hole Size||3mil|
|Service||OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA||Surface Finishing||HASL,ENIG,OSP,HASL Lead Free,spray Tin|
|Application||Electronics Device,ru 94v0 Pcb Printed Circuit Board,Consumer Electronics,rigid Fpc,mobile Usb Charger|
FR4 Double Sided PCB Board,
4oz Double Sided PCB Board,
HASL 8 Layers PCB Board
Precision multilayer double-sided PCB board with 8 layers of impedance drive board
Ping You Industrial Co.,Ltd
Ping You Industrial Co.,Ltd is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.Topfast is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.
|High precision prototype||PCB bulk production|
|Max Layers||1-28 layers||1-14 layers|
|MIN Line width(mil)||3mil||4mil|
|MIN Line space(mil)||3mil||4mil|
|Min via (mechanical drilling)||Board thickness≤1.2mm||0.15mm||0.2mm|
|Board thickness＞2.5mm||Aspect Ration≤13:1||Aspect Ration≤13:1|
|Aspect Ration||Aspect Ration≤13:1||Aspect Ration≤13:1|
|MIN||2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm||2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm|
|MAX Board size||610*1200mm||610*1200mm|
|Max copper thickness||0.5-6oz||0.5-6oz|
Gold Plated Thickness
Nickel Plated :50—500u”
|Hole copper thick||25um 1mil||25um 1mil|
|Tolerance||Board thickness||Board thickness≤1.0mm:+/-0.1mm
|MIN Solder mask bridge||0.08mm||0.10mm|
|Plugging Vias capability||0.25mm--0.60mm||0.70mm--1.00mm|
What′s critical to getting Your Engineering Design Built ASAP?
1. Get PY team on-board early in the process. We are here to serve you at every step of the process: From product conception thru. Manufacture of your design.
2. Provide complete information necessary to build your Design (See PCB Board Layout Quote Page ). Missing or incorrect information/files can delay your project. At the same time Huafu Fast′s team will assist you to developing any missing or incomplete information for your Design, Layout, or Manufacturing Package.
3. Communication is Key - If your project is time critical - start the communication process early. You will be amazed how working together can positively impact product: Quality, cost, reliability, and cycle time reduction for NPI & NPD and production. It also is a great support to building mature products that need to get done right.
4. If important to you provide a 24 hour contact name and number to keep your project moving in the event of design, manufacturing, and/or documentation questions.
5. Once the PCB Board Layout is complete and sent to you, check it thoroughly and release for fabrication and assembly ASAP.
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
