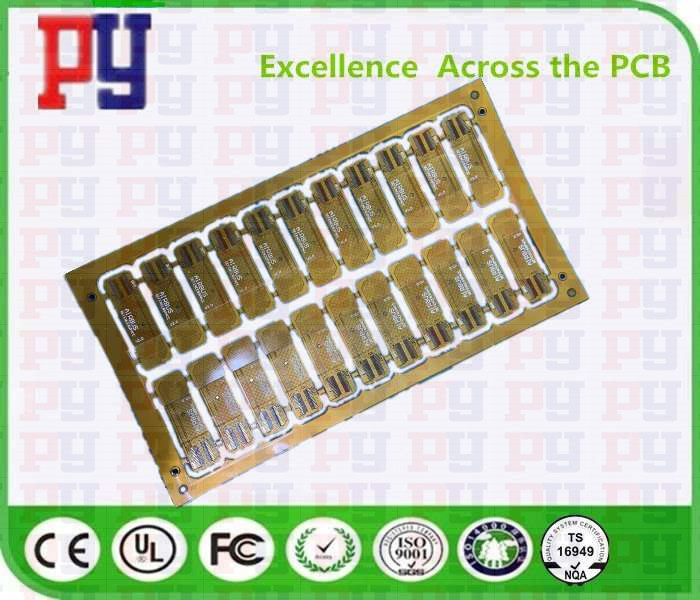

Double Layer FPC 1.6mm thickness FR4 Flexible PCB Board 4oz
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Green,Red,Black,Yellow,White,Blue | Number Of Plies | 2-4-6-8-10-12-16-20-22-28 Layer |
---|---|---|---|
Copper Thickness | 1-4oz | Base Material | FR4 ,Rogers , Aluminum ,Hight TG |
Board Thickness | 0.6~1.0~1.2~1.6~2.0~2.5~3.0~3.2mm | Place Of Origin | Guangdong, China (Mainland) |
Surface Finishing | HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver | Min. Hole Size | 3mil |
Service | OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA | Surface Finishing | HASL,ENIG,OSP,HASL Lead Free,spray Tin |
Application | Electronics Device,ru 94v0 Pcb Printed Circuit Board,Consumer Electronics,rigid Fpc,mobile Usb Charger | ||
Highlight | 1.6mm Thickness Flexible PCB Board,FR4 Flexible PCB Board,4oz Double Layer PCB Board |
RoHS PCB PCB Electronic Board Customized FPC Double Layer Multi-Layer Flexible PCB
Capability
High precision prototype | PCB bulk production | ||
Max Layers | 1-28 layers | 1-14 layers | |
MIN Line width(mil) | 3mil | 4mil | |
MIN Line space(mil) | 3mil | 4mil | |
Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
Board thickness≤2.5mm | 0.2mm | 0.3mm | |
Board thickness>2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Board thickness | MAX | 8mm | 7mm |
MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
MAX Board size | 610*1200mm | 610*1200mm | |
Max copper thickness | 0.5-6oz | 0.5-6oz | |
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” |
||
Hole copper thick | 25um 1mil | 25um 1mil | |
Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Outline Tolerance | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
|
Impedance | ±10% | ±10% | |
MIN Solder mask bridge | 0.08mm | 0.10mm | |
Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm |
Ping You Industrial Co.,Ltd is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.Topfast is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.
Applications:
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
