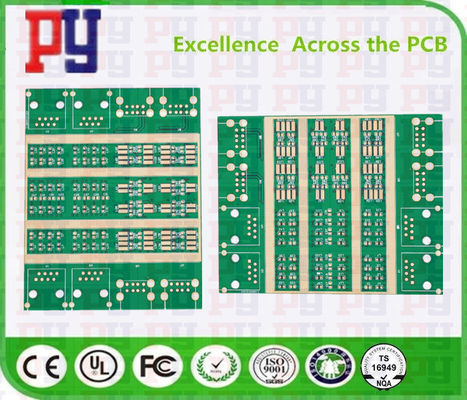

Double Sided 2.0mm FR4 HDI PCB Printed Circuit Board
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Color||Green,Red,Black,Yellow,White,Blue||Number Of Plies||2-4-6-8-10-12-16-20-22-28 Layer|
|Copper Thickness||1-4oz||Base Material||FR-4 ,Rogers , Aluminum ,Hight TG|
|Board Thickness||0.6～1.0～1.2～1.6～2.0～2.5～3.0～3.2mm||Place Of Origin||Guangdong, China (Mainland)|
|Surface Finishing||HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver||Min. Hole Size||3mil|
|Service||OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA||Surface Finishing||HASL,ENIG,OSP,HASL Lead Free,spray Tin|
|Application||Electronics Device,ru 94v0 Pcb Printed Circuit Board,Consumer Electronics,rigid Fpc,mobile Usb Charger|
FR4 PCB Printed Circuit Board,
2.0mm PCB Printed Circuit Board,
HDI Double Sided PCB Board
Printed Circuit Board HDI PCB Rigid PCB Board green oil Multilayer PCB Board
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems,
biometrics and diagnostic equipment, etc.
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
|Base Material||fr-4 ,PTFE ,Polyimide||Ordinary Tg, medium Tg, high Tg, halogen free, Low Dk, Low loss, high CTI, PTFE|
|Rigid -Flexible PCB||2-18LAYER|
|Board Thickness||Rigid PCB||0.4-6.0MM|
|Rigid -Flexible PCB||0.4-6.0MM|
|Copper Thickness||inner layer||0.5-8.0 OZ|
|outer layer||0.5-8.0 OZ|
|Solder mask color||outer layer||Green,black,white,blue,yellow,red|
|Character color||outer layer||white ,black, yellow|
|Min. Line Width||inner layer||0.05/0.05MM|
|Min. Line Spacing||inner layer||0.05/0.05MM|
|Drill Hole||Max Diling dameter||6.5MM|
|Min Diling Diameter||0.1mm|
|Drilig tolerance||PTH:+/-0.075mm NPTH:+/-0.05mm|
|Slot tolerance||PTH:+/-0.10mm NPTH:+/-0.05mm|
|Board Size||Rigid PCB||800*2000MM|
|Rigid -Flexible PCB||200*500MM|
|Drill Aspect Ratio||Mechanical hole||12.0:1.0|
|Solder mask bridge||green oil||0.08MM|
|Bow and Twist||Rigid PCB||0.5-0.75%|
|core thickness||Rigid PCB||0.075MM (excluding copper)|
|Resin plug hole||hole size||0.2-0.35mm|
|V - cut||Rigid PCB||30 45 60 (Tolerance: + / - 5 degrees)|
|impedance||50-120 ohm||Tolerance: + / - 10 %|
|PP type||Commonly used||1080,2116,7628 ,106|
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 24hours.
5. Certificates (ISO/UL E354810/RoHS)
6.10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
