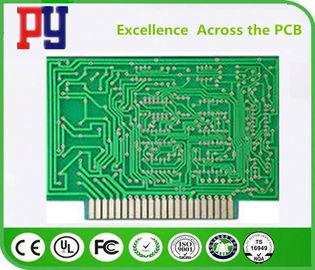

Green Solder Mask Prototype Printed Circuit Board Fr4 2.0mm Thickness 1OZ Copper
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Base Material||FR-4||Board Thickness||2MM|
|Number Of Layers||8LAYER||Copper Thickness||1OZ|
|Min. Hole Size||4MIL||Min. Line Width/Spacing||3/3MIL|
|Solder Mask Color||Black||Place Of Origin||CHINA|
|Supply Ability||Ten Thousand Square Meters/month||Surface Finishing||Immersion Gold|
hdi circuit boards,
led printed circuit board
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
|High precision prototype||PCB bulk production|
|Max Layers||1-28 layers||1-14 layers|
|MIN Line width(mil)||3mil||4mil|
|MIN Line space(mil)||3mil||4mil|
|Min via (mechanical drilling)||Board thickness≤1.2mm||0.15mm||0.2mm|
|Board thickness＞2.5mm||Aspect Ration≤13:1||Aspect Ration≤13:1|
|Aspect Ration||Aspect Ration≤13:1||Aspect Ration≤13:1|
|MIN||2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm||2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm|
|MAX Board size||610*1200mm||610*1200mm|
|Max copper thickness||0.5-6oz||0.5-6oz|
Gold Plated Thickness
Nickel Plated :50—500u”
|Hole copper thick||25um 1mil||25um 1mil|
|Tolerance||Board thickness||Board thickness≤1.0mm:+/-0.1mm
|MIN Solder mask bridge||0.08mm||0.10mm|
|Plugging Vias capability||0.25mm--0.60mm||0.70mm--1.00mm|
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
