10 Layer High Tg PCB 1oz FR 4 4mil Prepreg High Layer Count PCB

Place of Origin China
Brand Name OEM
Model Number PY
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details box
Delivery Time 5-8 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Material FR-4 High TG,
Packaging Details Anti-static Bag + Anti-static Bubble Wrap + Good Quality Carton Box Min. Line Width:0.075mm(3mil)
Supply Ability 30000 Pieces Per Month Copper Weight 1oz
High Light

hdi circuit boards

,

led printed circuit board

Leave a Message
Product Description

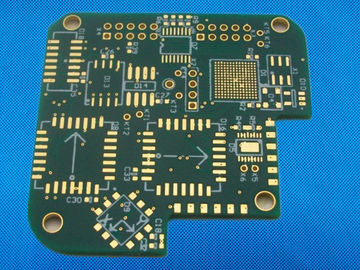

10 Layer High Tg PCB 1oz FR 4 4mil Prepreg High Layer Count PCB

10 Layer High Tg PCB 1oz FR 4 4mil Prepreg High Layer Count PCB 0

PCB data sheets

PCB SIZE 97 x 97mm=1PCS
BOARD TYPE
Number of Layers Multilayer PCB, 10 Layer PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1oz)+plate TOP Signal
4mil prepreg
copper ------- 18um(0.5oz) GND Plane
5mil FR-4
copper ------- 18um(0.5oz) SIG1
5mil prepreg
copper ------- 18um(0.5oz) SIG2
5mil FR-4
copper ------- 18um(0.5oz) PWR Plane
13mil prepreg
copper ------- 18um(0.5oz) GND Plane
5mil FR-4
copper ------- 18um(0.5oz) SIG3
5mil prepreg
copper ------- 35um(1oz) SIG4
5mil FR-4
copper ------- 35um(1oz) GND Plane
4mil prepreg
copper ------- 35um(1oz)+plate BOT Signal
TECHNOLOGY
Minimum Trace and Space: 5.5mil/5mil
Minimum / Maximum Holes: 0.0.5/2.0mm
Number of Different Holes: 2
Number of Drill Holes: 532
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control NO
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT-180, TG>170, er<5.4
Final foil external: 1.5oz
Final foil internal: 1oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Electroless Nickle over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickle)
Solder Mask Apply To: Top and Bottom, 12micon Minimum.
Solder Mask Color: Blue, Kuangshun, KSM-6189BL04
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing, Fiducial marks
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH), via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
APPLICATION: Signal processor
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


10 Layer High Tg PCB 1oz FR 4 4mil Prepreg High Layer Count PCB 1
Advantages
a) High Tg FR-4 epoxy glass and Prepreg. Industrial standard material with high Tg (175℃ by DSC) and excellent thermal reliability.
b) Lead-Free Assembly Compatible, RoHS compliant and suitable for high thermal reliability needs, and Lead free assemblies with a maximum reflow temperature of 260℃
c) 100% tests inclusive of electrical test and AOI inspection.High voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc.
d) Meeting your printed circuit board needs from PCB prototyping to mass volume production.

10 Layer High Tg PCB 1oz FR 4 4mil Prepreg High Layer Count PCB 210 Layer High Tg PCB 1oz FR 4 4mil Prepreg High Layer Count PCB 3
More Applications in Electronics
Small Led Lights
Contract Manufacturing
Wireless Adapter For Desktop
Wholesale Electronics
24 Port Switch
Power Supplies
Dc-Ac Converter
Dc-Dc Converter
Commutator
Motor Driver


PCB Knowledge: Specifications of FR-4
When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou (0.010 in, 254 µm) to 3 inches (76 mm).
Copper foil thickness is specified in units of ounces per square foot (oz/ft2), commonly referred to simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2), 2 oz/ft2 (600 g/m2), and 3 oz/ft2 (900 g/m2). These work out to thicknesses of 34.1 µm (1.34 thou), 68.2 µm (2.68 thou), and 102.3 µm (4.02 thou), respectively. Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a thickness of 35 µm (may also be referred to as 35 μ, 35 micron, or 35 mic).

1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.

Due to the development needs of electronic product installation technology and PCB technology, the high Tg (Glass temperature) FR-4 products was born.
