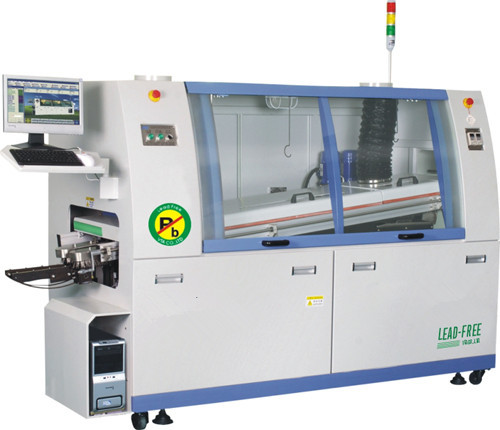

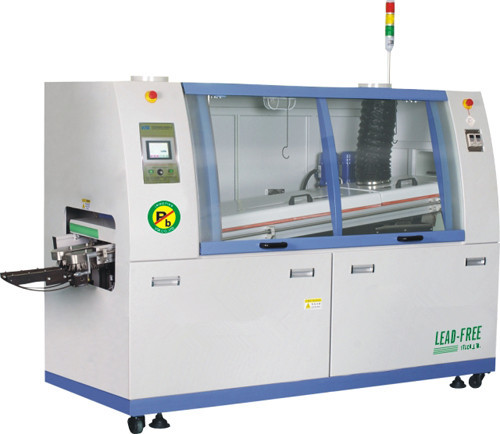

Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250

Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250

  • Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250
  • Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250
Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250
Product Details:
Place of Origin: china
Brand Name: PY
Model Number: 250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: box
Contact Now
Detailed Product Description
Voltage:: 380VAC 50Hz Rated Capacity:: 36KW
Usage:: Pcb Soldeing Flux Capacity:: Approx.18L
Wave Height: Approx.12mm Conveying Dire: Left To Right
High Light:

auto screw tightening machine

,

epoxy dispensing machine

Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250



Product featuModel
V-250C PC
V-250M Touch
V-250A Button
Control method
PC+PLC
Computer+PLC
Touch+PLC
Touchscreen+PLC
Button+PLC
Keys+PLC
Conveyor motor
1P AC220V 60W
Conveyor speed
300-1500mm/min
Conveyor speed
50-300mm(w)
PID Contorl)Temperature
Power: 7.5KW Length: 1200mm A section of PID control
Temperature: (room temperature -250 ℃)
Preheating Zone Power
12KW (cast iron heating plate) (room temperature -300 ℃)
Solder temperature
280KG
Wave height
Solder pot wam-up time
0-12mm
Power supply
3P AC220V 0.18KW×2pcs
Finger cleaning pump
1P AC220V 6W
Cooling system
Ordinary air-cooled
Cooling system
L→R(R→L)
Flux capacity
6Litres
Air pressure of flux
3-5BAR
Conveyor angle
4-6°
Power supply
3P AC380V 50HZ
Normal/starting power
20KW/5KW
Dimension
2600(L)×1200(W)×1650mm(H)
Appearance size
3200(L)×1200(W)×1650mm(H)
Net weight
800KG

Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250 0
