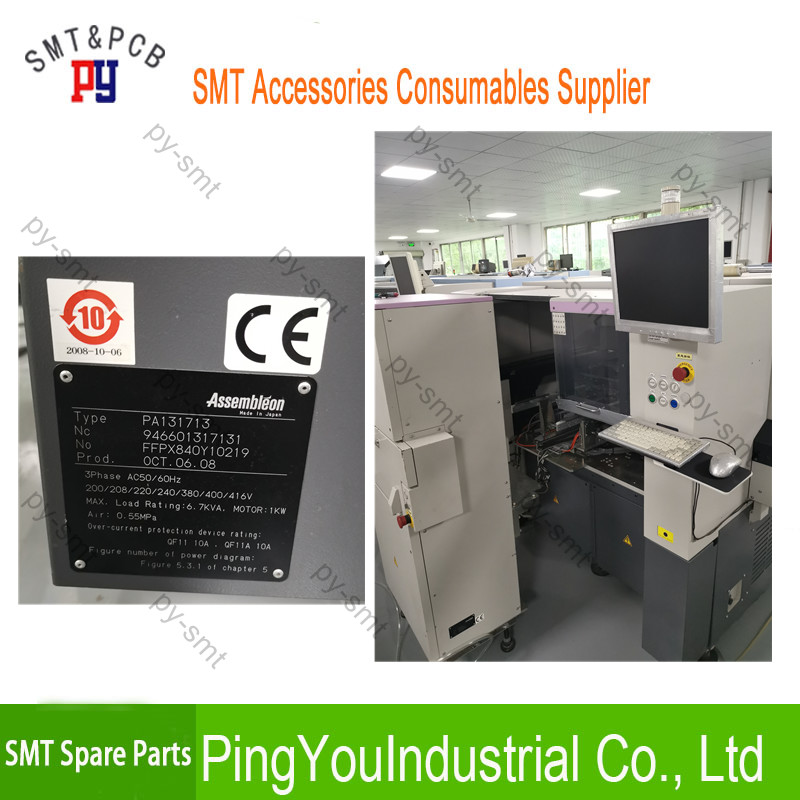

Surface Mount SMT Assembly Equipment Assembleon YAMAHA MGR-1 PA131713 Second Hand

Surface Mount SMT Assembly Equipment Assembleon YAMAHA MGR-1 PA131713 Second Hand

  • Surface Mount SMT Assembly Equipment Assembleon YAMAHA MGR-1 PA131713 Second Hand
  • Surface Mount SMT Assembly Equipment Assembleon YAMAHA MGR-1 PA131713 Second Hand
Surface Mount SMT Assembly Equipment Assembleon YAMAHA MGR-1 PA131713 Second Hand
Product Details:
Place of Origin: Japan
Brand Name: YAMAHA
Certification: ISO
Model Number: MGR-1 Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 1-100
Packaging Details: Box
Delivery Time: 1 day
Payment Terms: L/C, T/T
Supply Ability: Long-term supply
Contact Now
Detailed Product Description

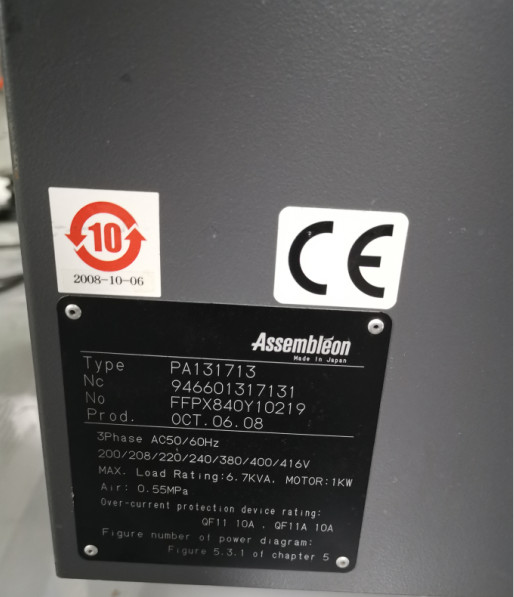

Machine Model: PA131713 Parts Name: Assembleon YAMAHA MGR-1 Machine
Condition: Orginal Used Material: Stainless Steel
Function: SuSurface Mount Technology EquipmentEquipment Power: 6.7 KVA
Voltage: 200/208/220/240/370/400/416V Air Source: 0.55Mpa
Input: 3~50/60Hz
High Light:

auto screw tightening machine

,

epoxy dispensing machine

Assembleon YAMAHA MGR-1 Machine PA131713 Second-Hand Surface Mount Technology EquipmentEquipment
Assembleon YAMAHA MGR-1 Machine PA131713 Second-Hand Surface Mount Technology EquipmentEquipment
Second-hand Yamaha YG100 yg100r placement machine is around 2005 equipment, windows operating system
Specification:
Yamaha YG100 parameters
Japan YAMAHA YGV100RA/RB Mounter:
Patch speed: 0.15 seconds / CHIP
Patch PCB size: L510XW440MM_L50XW50MM
SMD component: 0402(MM)-45MMX45MM component SOP SOJ PLCC QFP BGA
SMD components can be placed in 100 types (8MM)
Mounter size: L1650XW1562X1470
Mounter weight: 1630KG
YG100RA (FNC type) / YG100RB (SF type) Model: KHW-000
Image substrate
L50×W50mm~L510×W460mm (Note 1) (Note 2)
Mounting efficiency
(optimal conditions)
24,000 CPH/CHIP (equivalent to 0.15 sec/CHIP)
Mounting accuracy
(the company's standard components)
Absolute accuracy (μ+3σ): ±0.05mm/CHIP, ±0.05mm/QFP
Repeatability (3σ): ±0.03mm/CHIP, ±0.03mm/QFP
Object component
0402 (mm system name) ~ □ 55mm component, SOP/SOJ, QFP, connector, PLCC, CSP/BGA, long connector (Note 3) (Note 4) (Note 5)
The target component height is 15mm or less (Note 6)
Component type
96 types (maximum, converted to 8mm tape) (Note 1)
Power Specifications
Three-phase AC 200/208/220/240/380/400/416 V ±10%50/60 Hz
Gas source
0.55MPa or more, clean and dry
Dimensions
(Note 7)
L1, 650 × W1, 562 (cover end) × H1, 470mm (above the cover)
L1, 650 × W1, 615 (total change of trolley rail end) × H1, 470mm (above the cover)
Body weight
Approximately 1,630kg: (main body only)
Product name: YG100R YAMAHA high-speed chip mounter


Product number: YG100R
Products in detail
Yamaha YG100R high-speed SMT machine
Can mount components: CHIP components, SOP/SOJ, QFP, connectors,PLCC, CSP/BGA, long ~ 0402-31 mm components, connectors (L100mm x W31mm) - >mind vision camera, 0603 - more than 31 type components, 45 mm long connector(L100mm x W45mm) - - more than 45 type vision camera
Substrate size: (limited to the host) : L460 x W440mm (Max) ~ L50 xW50mm (Min)
Substrate thickness/substrate weight: 0.4 mm to 3.0 mm / 3.0 kg
Benchmark/conveyor belt transmission direction: right and left sidebefore (option: from left to right)/(option: the back)
SMT precision: the company internal evaluation by using standardcomponents
accuracy (mu + 3 sigma) : + / - 0.05 mm/CHIP, plus or minus0.05 mm/QFP repeat precision (3 sigma) : + / - 0.03 mm/QFP/CHIP, plus or minus0.03 mm
Mount speed: best conditions 0.15 seconds/CHIP
Varieties of element number: 96 (Max, to 8 mm strip conversion)
Component supply form: strip plate, bulk, rod, tray
Power specifications: three-phase AC 200/208/220/240/220/240/416 v +10% for 50/60 hz
The average power consumption: 0.72 KW (host) only, attached dYTF:0.90 KW, attach satz: 0.96 KW, at the same time using satz + dYTF: 0.98 KW
Supply air: more than 0.55 Mpa, the air is clean, dry condition
Oad/host weight: L1, 650 x W1, about 1630 kg / 562 x H1, 562 mm(only host)
