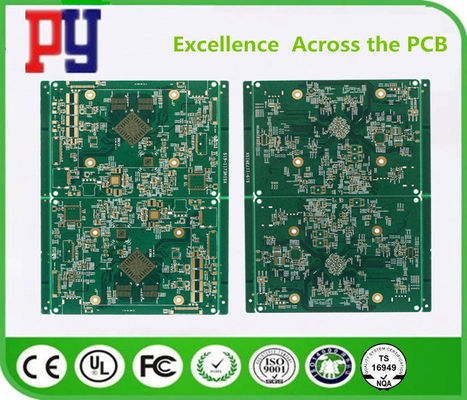

1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board

Place of Origin CHINA
Brand Name FUJI
Certification ISO CE
Model Number 2AGKNL018507 DX-S1 15.0G
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details carton
Delivery Time 10-20 DAYS
Payment Terms L/C, T/T,PAYPAL
Supply Ability 5000PCS/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name FUJI NXT Nozzle DX (S1) Model 2AGKNL018507 DX-S1 15.0G
Condition New Speed Super High Speed
Precision High Precision Quality 100% Tested
High Light

1.6MM Rigid Flex Circuit Boards

,

2OZ Pcb Circuit Board

Leave a Message
Product Description





Capability



  High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”

Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm







Ping You Industrial Co.,Ltd

Ping You Industrial Co.,Ltd is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.Topfast is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.



Applications:


Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.

Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.

Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.

Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.

High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.

Industry


Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc

Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.

Military
Satellite, radar, airplane, control unit, communication equipment .etc.

Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.



1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 0




Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc



1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 1

1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 2

1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 3

1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 4





1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 5

1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 6

1.6MM 3MIL Hole 8 Layers 2OZ Fr4 Printed Circuit Board 7

FAQ

Q1: What service do you have?

A: We are the factory. We have our PCB manufacturing & Assembly factory.

We can offer a one-stop service from PCB manufacturing to PCB assembling, testing, housing, and other value-added services.

Q2. What is needed for PCB or PCBA quotation?

A: PCB: Quantity, Gerber file, and Technic requirements(material, surface finish treatment, copper thickness, board thickness,...)
PCBA: PCB information, BOM, (Testing documents...)

Q3. What file formats do you accept for PCB and PCBA production?

A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q4: What any other information should be offered except for the file?

A5: Following specifications are needed for the quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity

Q5: What is your minimum order quantity?

A: Our MOQ is 1 PCS.

Q6. Shipping cost?

A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

Q7: Are my PCB files safe when I submit them to you for manufacturing?

A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written. Permission from you, nor we'll share these files with any other 3rd parties.

Q8: No PCB file/Gbr file, only have the PCB sample, can you produce it for me?

A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q9: What payment do you accept?

A:-Wire Transfer(T/T)
-Western Union
-Letter of Credit(L/C)
-Paypal
-Ali Pay
-Credit Card

We recommend bank transfer.

Q10: How to get the PCBs?

A: For small packages, we will ship the boards to you by DHL, UPS, FedEx, EMS. Door to door service! You will get your PCBs at your home.

For bulky goods more than 300kg, we may ship your PC boards by ship or by air to save freight costs. Of course, if you have your forwarder, we may contact them to deal with your shipment.

Q11. How about the delivery?

Usually, for sample order, our delivery is about five days. For small-batch, our delivery is about seven days.

For the mass production batch, our delivery is about ten days.

But that depends on the real condition when we get your order.

If your order is urgent, please contact us directly, we will make a priority to deal with it and do our best to give you a satisfied delivery time.

Q12: How about your factory production capacity?

A: we can provide 40000 square meter/month.

Q13: Which countries have you worked with?

A: US, Canada, Italy, Germany, Czech Republic, Australia, Japan, Spain, Portugal, France, Britain, Poland, Ukraine, Russia, Brazil, Argentina, and so on.

Q14: How do you ensure the final quality of the product

For PCB, we will use the Flying Probe Test, E-test, etc. for it.

For PCBA, we need you to offer us a method or test fixture for the function test. Before that, our inspectors will use a microscope and X-ray to check the IC foot welding or bad solder, etc.

Q15: Will you check my files before production?

A: Yes, our engineer will check your Gerber file and BOM list to avoid any mistake.

Q16: My budget is limited; can you provide solutions to save cost?

A: Yes, we can. For example, for PCBA: Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost. Re-layout the PCB to reduce the size, it can save cost. Also, we can recommend alternative components.

Q17: Do you accept process materials supplied by clients?

A: Yes, we can provide the component source, and we also accept component from the client.

Q18: Can we visit your company?

No problem. You are welcome to visit us in Shenzhen.

Q19: I am delighted after I read your information, how can I start to purchase my order?

A: Fill in the form below and click the "send" button to send your order to us, or contact our sales on sales representative online!
