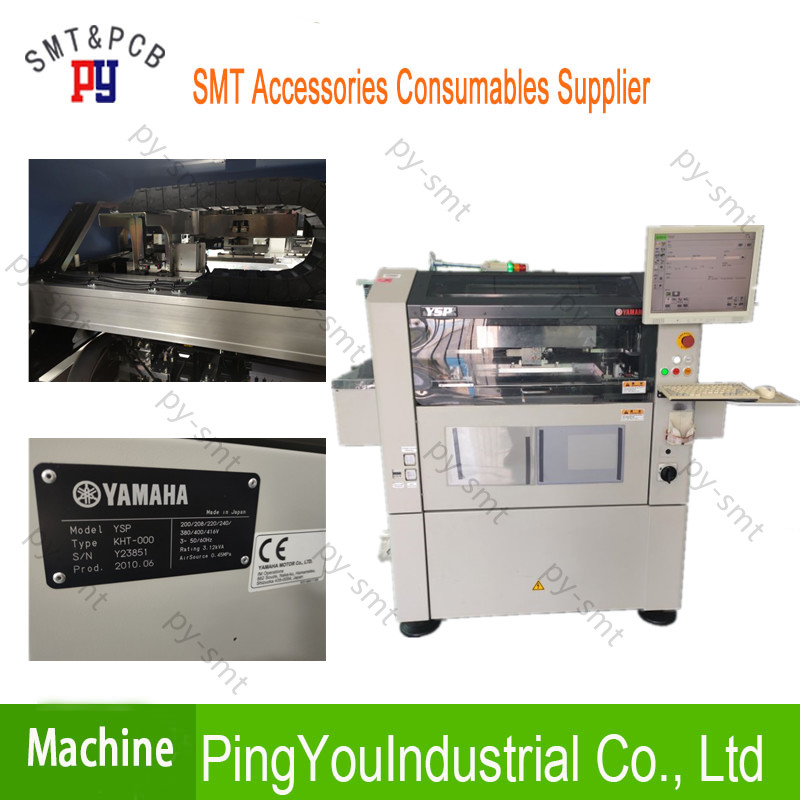

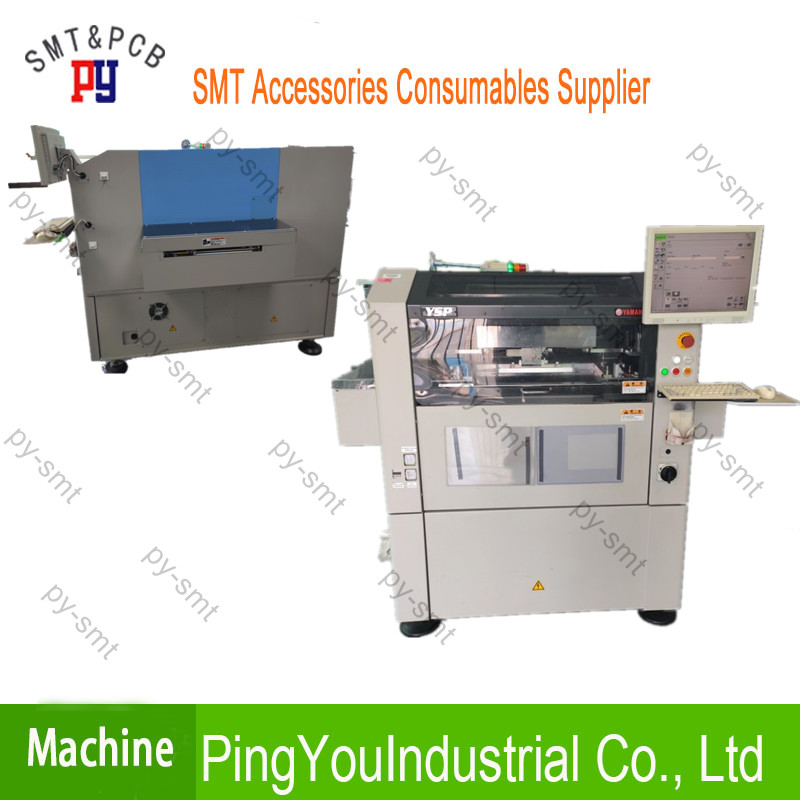

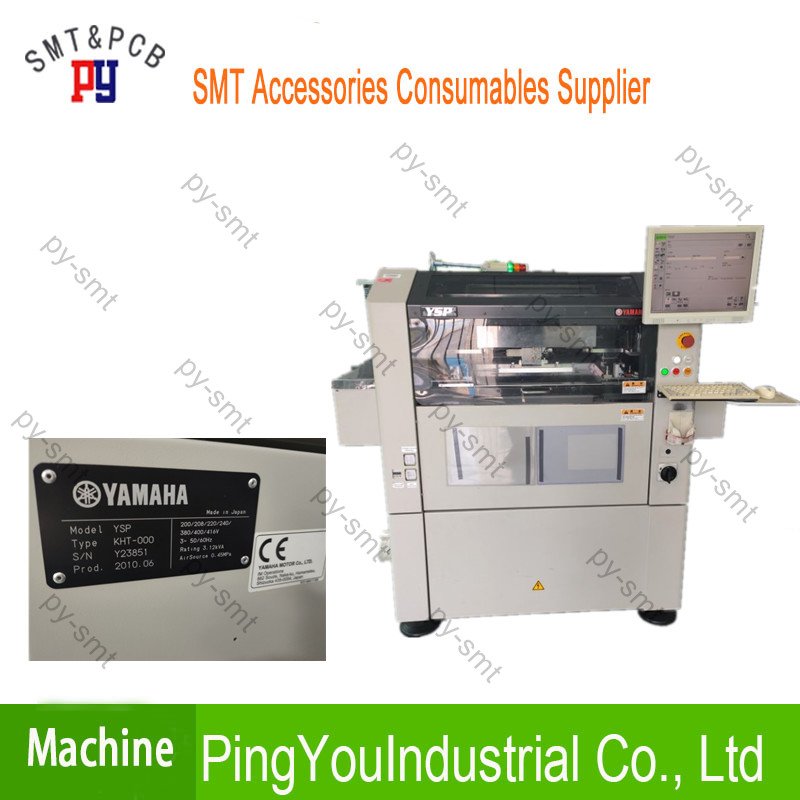

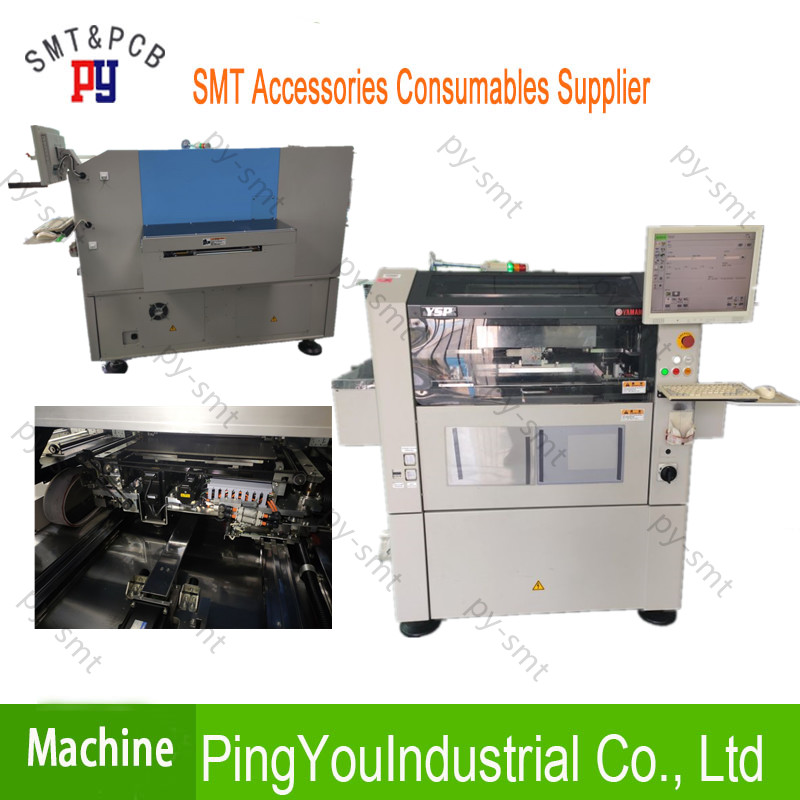

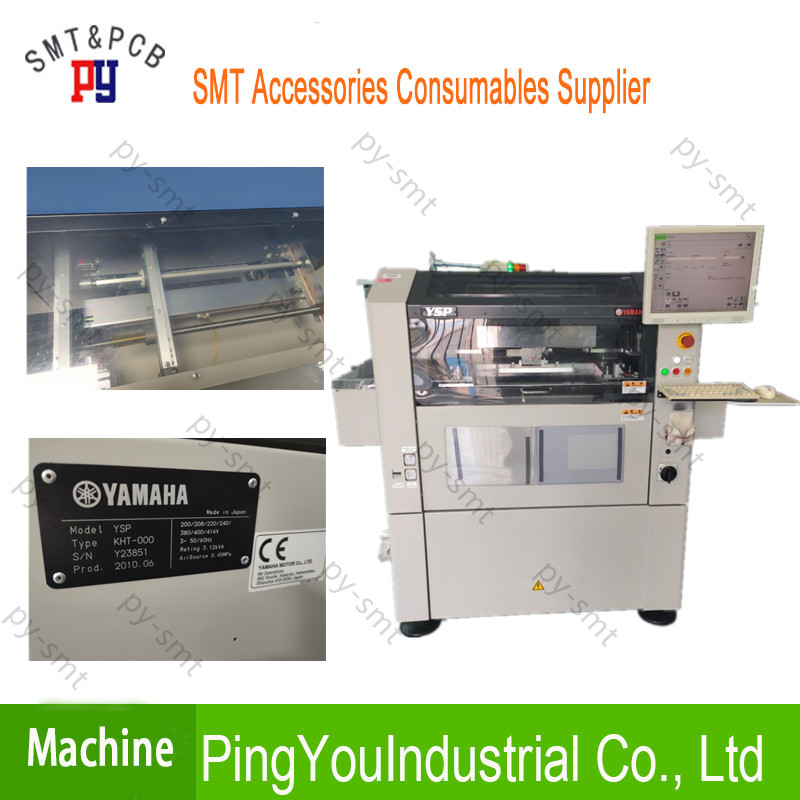

Stainless Steel SMT Assembly Equipment YAMAHA YSP Solder Paste Screen Printer

Place of Origin Japan
Brand Name YAMAHA
Certification ISO
Model Number YSP SMT Printer
Minimum Order Quantity 1pcs
Price USD 1-100
Packaging Details Box
Delivery Time 1 day
Payment Terms L/C, T/T
Supply Ability Long-term supply

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Model KHT-000 Parts Name YAMAHA YSP Solder Paste Screen Printer
Condition Copy New Material Stainless Steel
Function YAMAHA YSP Solder Paste Screen Printer Power 3.12KVA
Voltage 200/208/220/240/370/400/416V Air Source 0.45Mpa
Input 3~50/60Hz
High Light

auto screw tightening machine

,

epoxy dispensing machine

Leave a Message
Product Description

YAMAHA YSP Solder Paste Screen Printer With Impeccable Precision Due Genuine Used

YAMAHA YSP PCB Screen Printer KHT-000

YAMAHA YSP Solder Paste Screen Printer With Impeccable Precision Due Genuine Used

YAMAHA high speed Screen Printer machine with impeccable precision due to YAMAHA's original 3S head that automatically adjusts squeegee angle (with 1 degree interval) between 45 and 65 degrees.

High-Speen High-precision

Universal High-end Printer

11 sec/cycle* Line-tact

High-speed printing capability

3σ:+/-0.005mm

Repeatability of positioning

PSC system

(PSC : Print Stability Control)

3S head

(3S : Swing Single Squeegee)

Printing attack angle variable

L600mm pringint area applicable

YAMAHA Dual Lane System applicable

High-speed printing capability 9,5 sec/cycle

Wet print accuracy: ±25 μm ( 6σ )

Positioning repeat-ability accuracy: ±12,5 μm ( 6σ )

Stencils up to L 750 x W 750 mm

Printing head information:

- 3S head ( 3S = Swing Single Squeezee )

- Squeegee speed: 2 to 200 mm/sec

- Squeegee pressing force: 5 to 200 N +/- 2N ( feedback control )

- Squeegee variable printing attack angle: 45 to 65 degree

- Squeegee blade material: Metal or Urethane

Options:

- 2D print inspection camera

- PCB vacuum system

- UPS system

- PSC system (PSC: Print Stability Control)

- Temperature control unit

- Solder Paste-roll volume measurement

- Software: YAMAHA Factory Tools

Machine size:

- with normal conveyor: L 1.640 mm x W 1.640 mm x H 1.400 mm

- with exit extension conveyor: L 1.973 mm x W 1.640 mm x H 1.400 mm

Machine weigh: 1.500 kg

YSP(Model : KHT-000)

Applicable PCB L510xW460mm to L50xW50mm

Applicable for printing L600mm longer area transporting L610mm longer PCB

Printing head 3S head(named after Swing Single Squeegee)

For loading squeegee, possible to choose from metal or urethane squeegee

Printing accuracy Printing accuracy(3σ) +/-0.025mm

Accuracy for repeated alignment(3σ): +/-0.005mm

Cycle time 11.0 sec (for normal printing under our optimum condition)

Applicable stencil size L750x W750 mm L736x W736 mm L750x W650 mm L650x W550 mm L600x W550 mm*1 L550x W650 mm*1

Max PCB size L510xW460 mm L510x W460 mm L510x W350 mm L330x W250 mm L330x W250 mm L330x W250 mm

Power supply 3-Phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source 0.45MPa

External dimension L1,640mmxW1,640mmxH1,400mm (not include the projection)

Weigh Approx. 1,600kg

These size stencils need addition of fixing adaptor and replacement of cleaning nozzle.

Specifications and appearance are subject to change without prior notice.
